Home >> Mazda >> 2011 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Service and Repair >> Overhaul >> Engine L3 With TC >> Mechanical >> Timing Chain Assembly >> Timing Chain Assembly

Timing Chain Assembly

TIMING CHAIN ASSEMBLY
1. Assemble in the order indicated in the table.

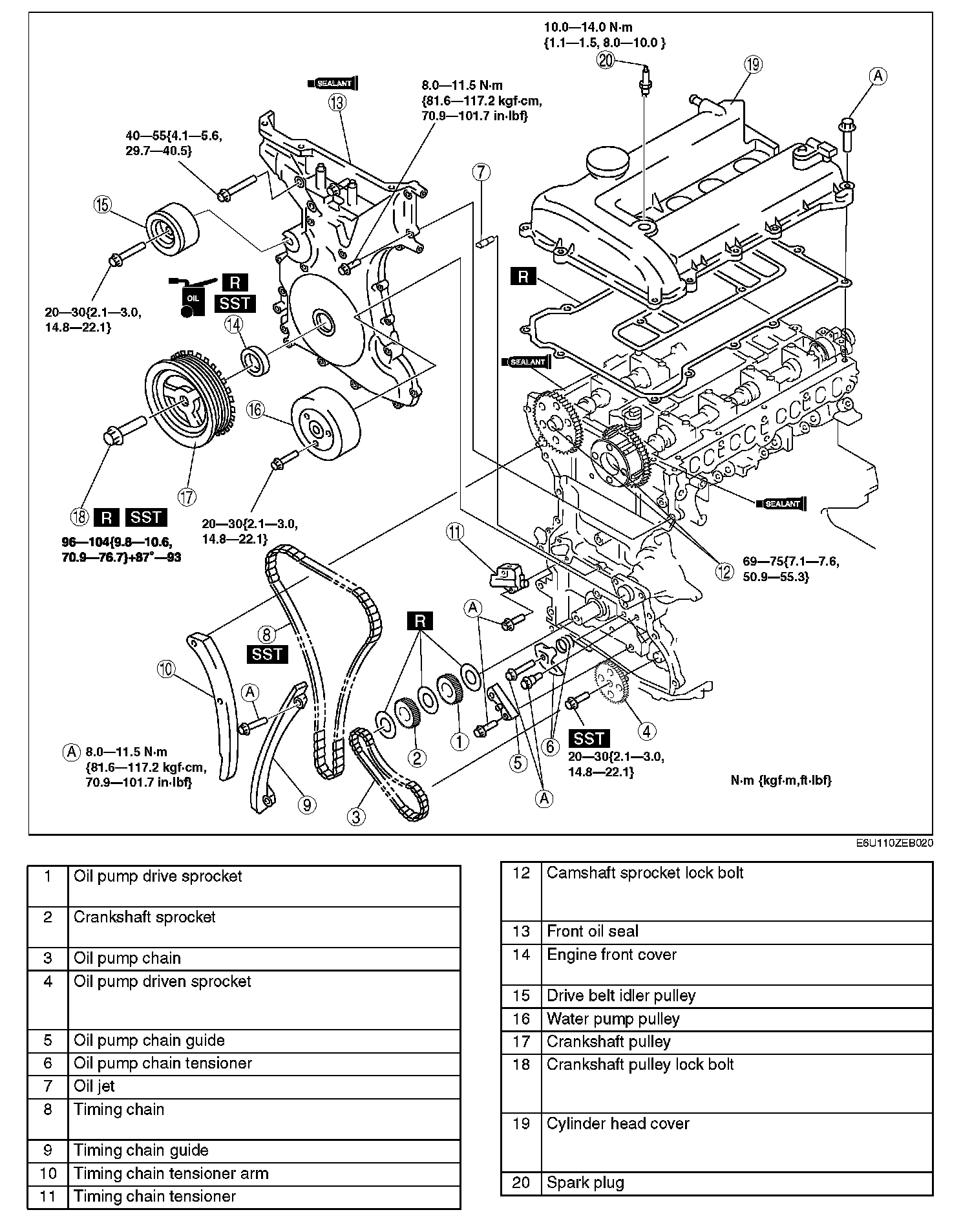

Timing Chain Assembly:
