Piston Pin Disassembly Note

Piston Pin Disassembly Note
1. Before removing the piston pin, weigh the connecting rod.

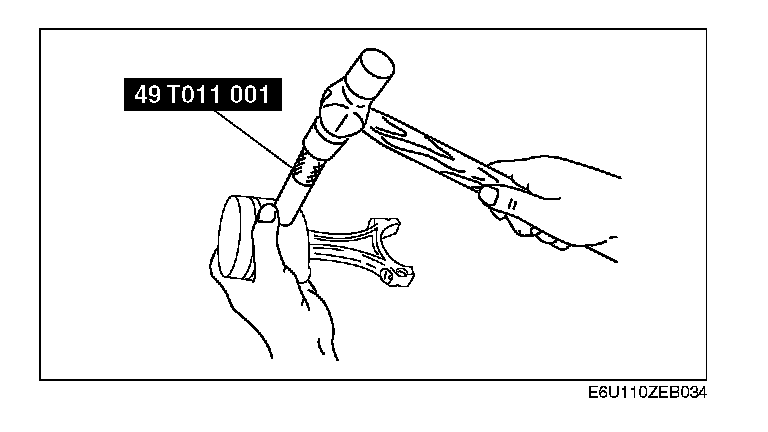

2. Remove the piston pin using the SST.
