Home >> Mazda >> 2011 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 0913-2c (Power Seat (With Power Seat Control Module))

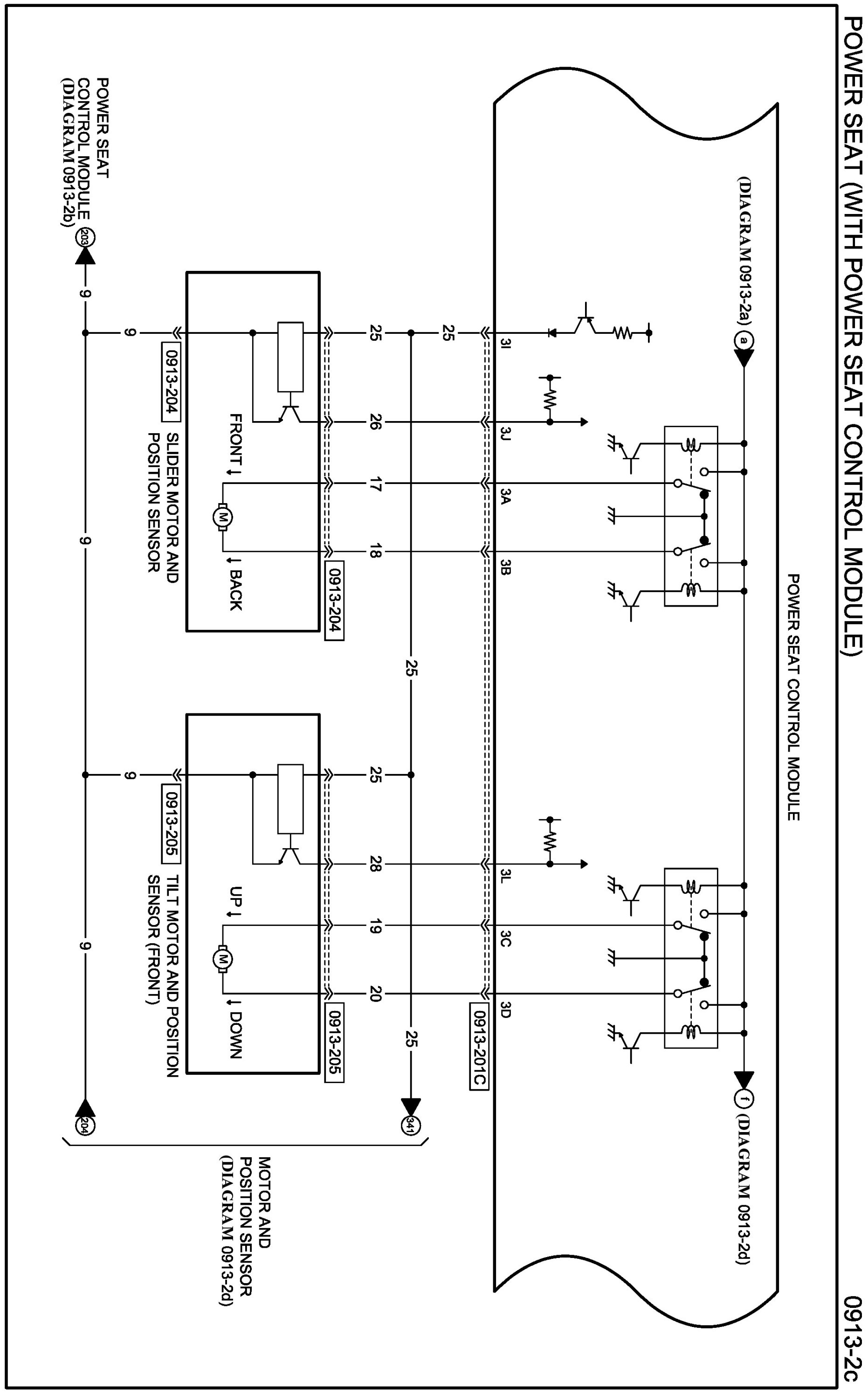

Diagram 0913-2c (Power Seat (With Power Seat Control Module))

Diagram 0913-2c:
