Trunk Lid Latch and Release Actuator/Trunk Compartment Light Switch
Trunk Lid Latch and Release Actuator/Trunk Compartment Light Switch

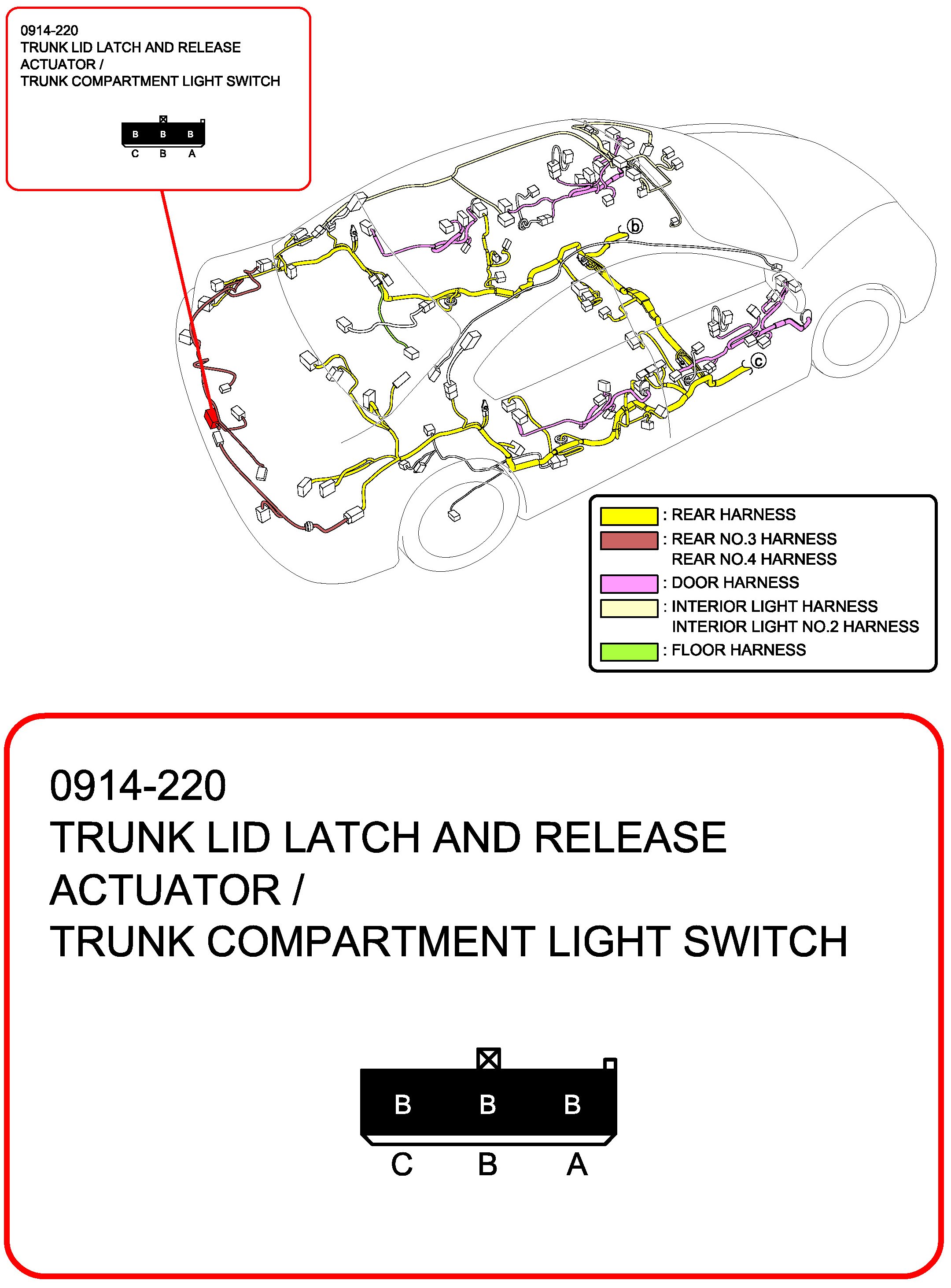

W/O Advanced Keyless Entry and Push Button Start

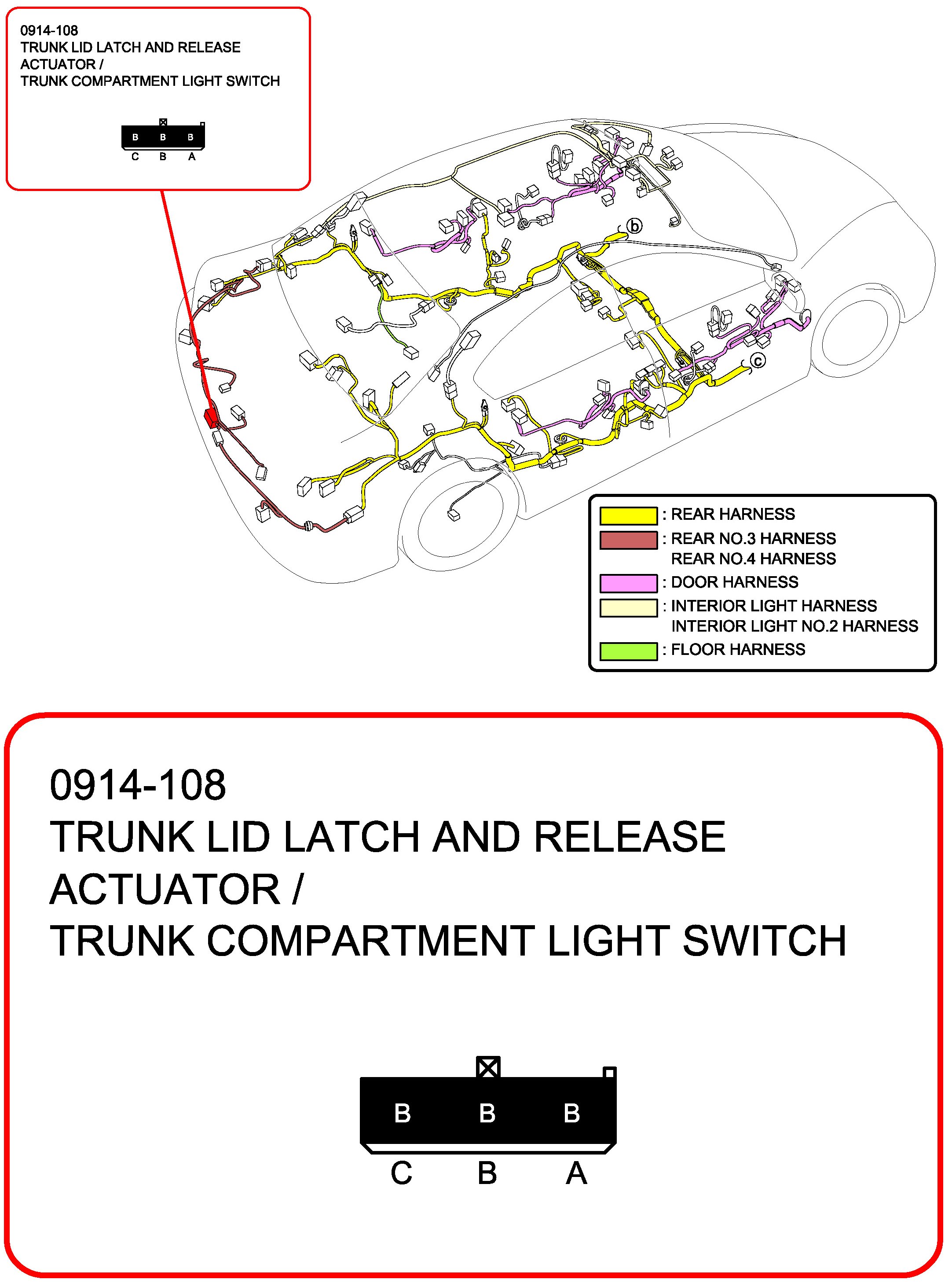

W/ Advanced Keyless Entry and Push Button Start
