Keyless Receiver/TPMS Control Module

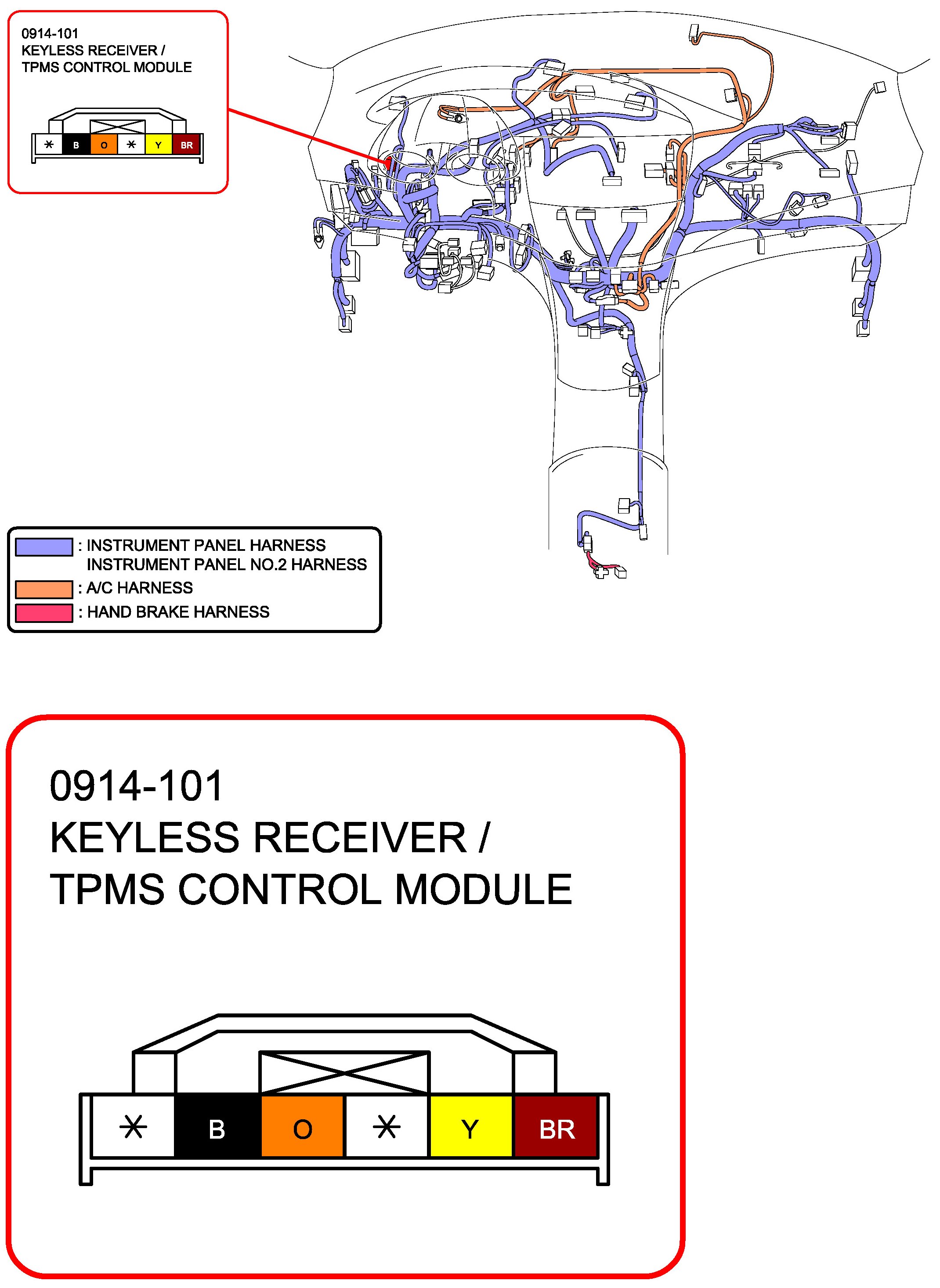

W/O Keyless Entry and Push Button Start

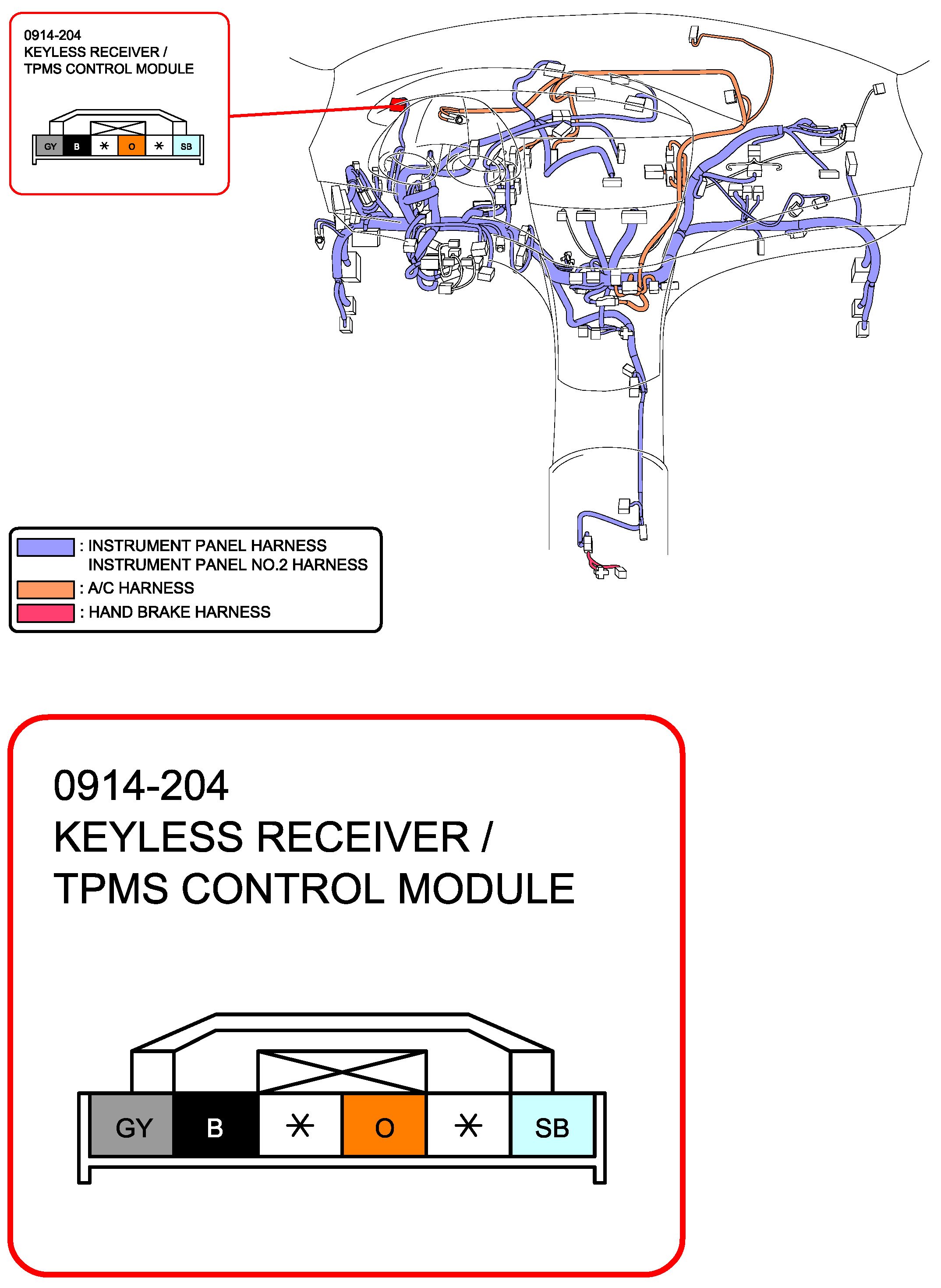

W/ Keyless Entry and Push Button Start
