Mazdaspeed3 L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>

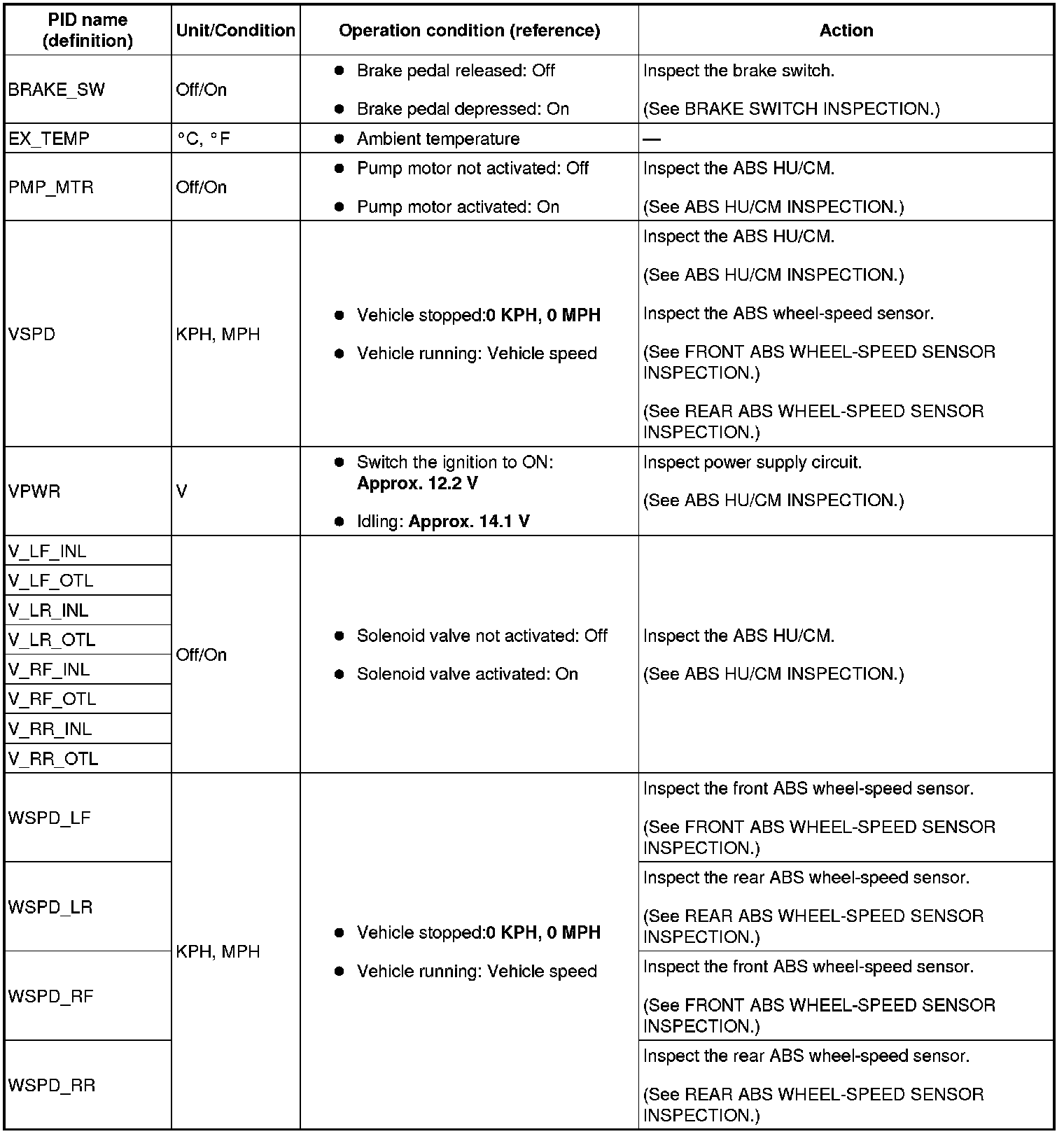

PID/DATA Monitor Table - ABS
PID/DATA Monitor Table - ABS
PID/DATA Monitor Table - ABS

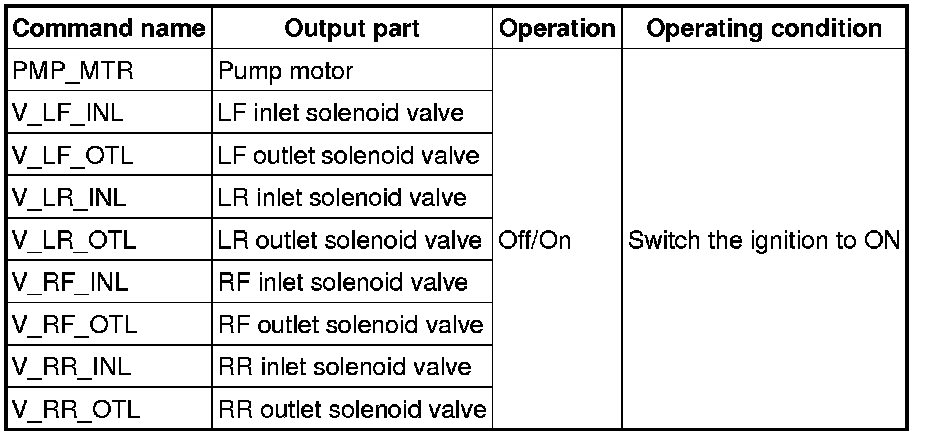

Active Command Modes Table
