Front Door Limiter: Service and Repair

FRONT DOOR CHECKER REMOVAL/INSTALLATION

1. Fully close the front door glass.

2. Disconnect the negative battery cable.

3. Remove the inner garnish. Inner Garnish Removal/Installation

4. Remove the front door trim. Front Door Trim Removal/Installation

5. Remove the front door speaker. Front Door Speaker Removal/Installation

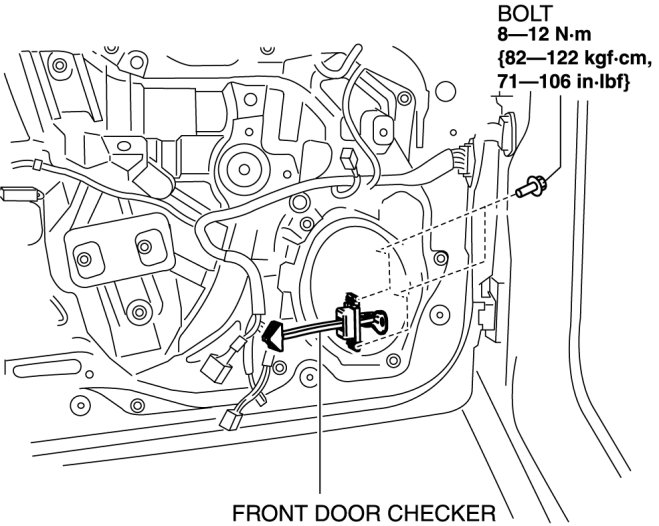

6. Remove the bolt.






7. Remove the bolt.






8. Pull out the front door checker from the front speaker installation hole.

9. Install in the reverse order of removal.
