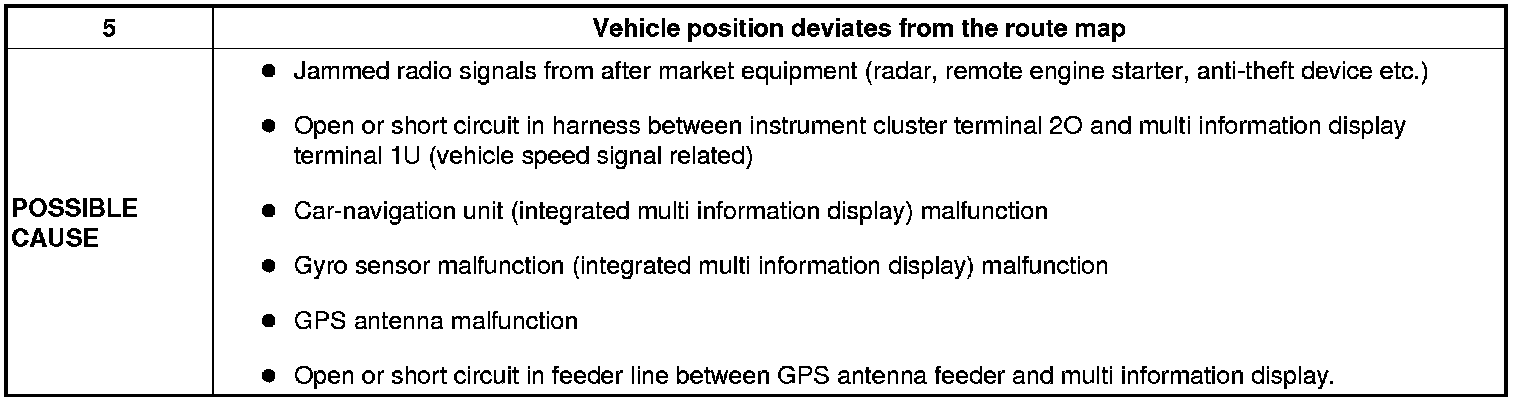

No. 5 Vehicle Position Deviates From The Route Map




NO.5 VEHICLE POSITION DEVIATES FROM THE ROUTE MAP [CAR-NAVIGATION SYSTEM (INTEGRATED MULTI INFORMATION DISPLAY)]

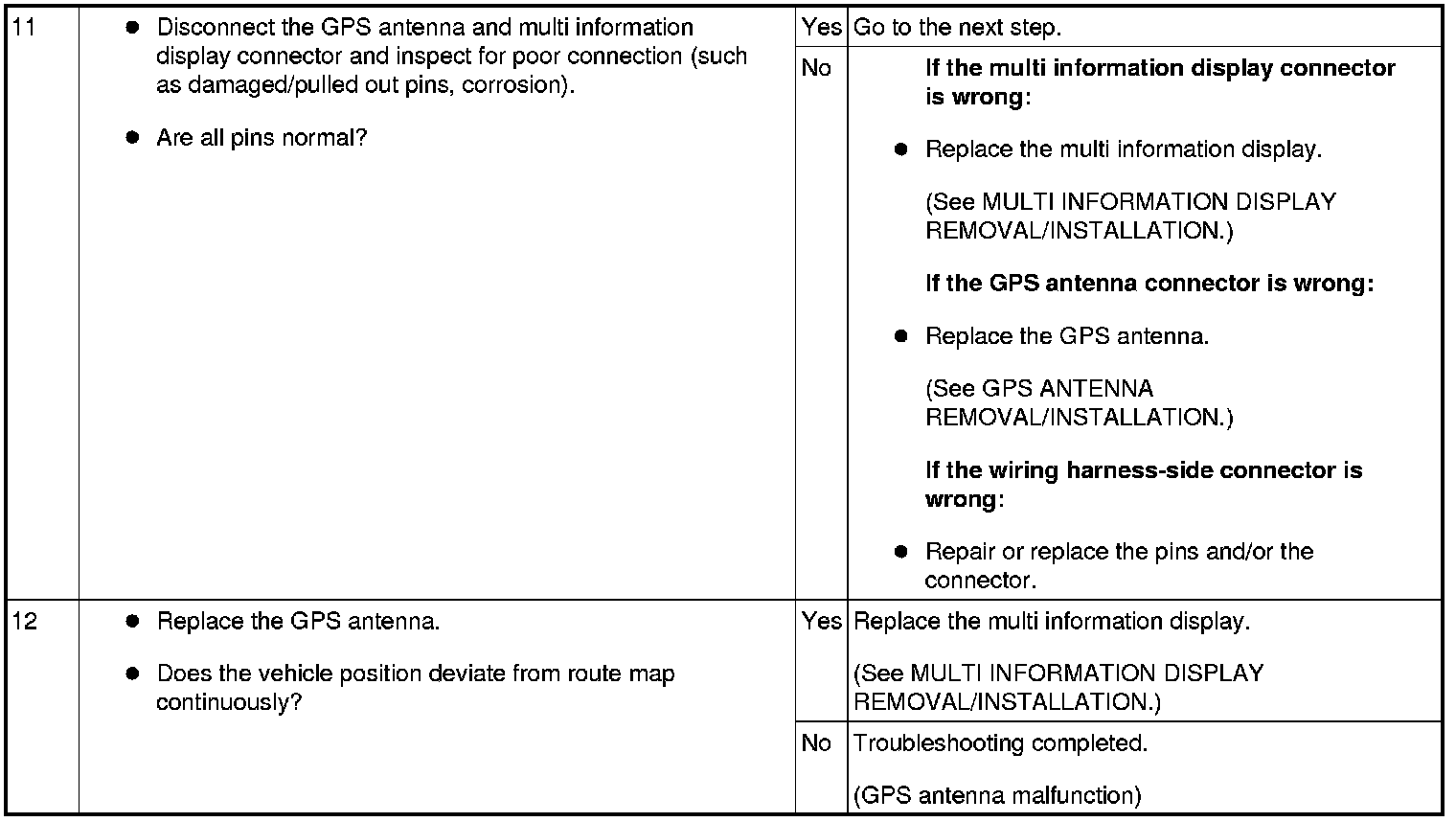

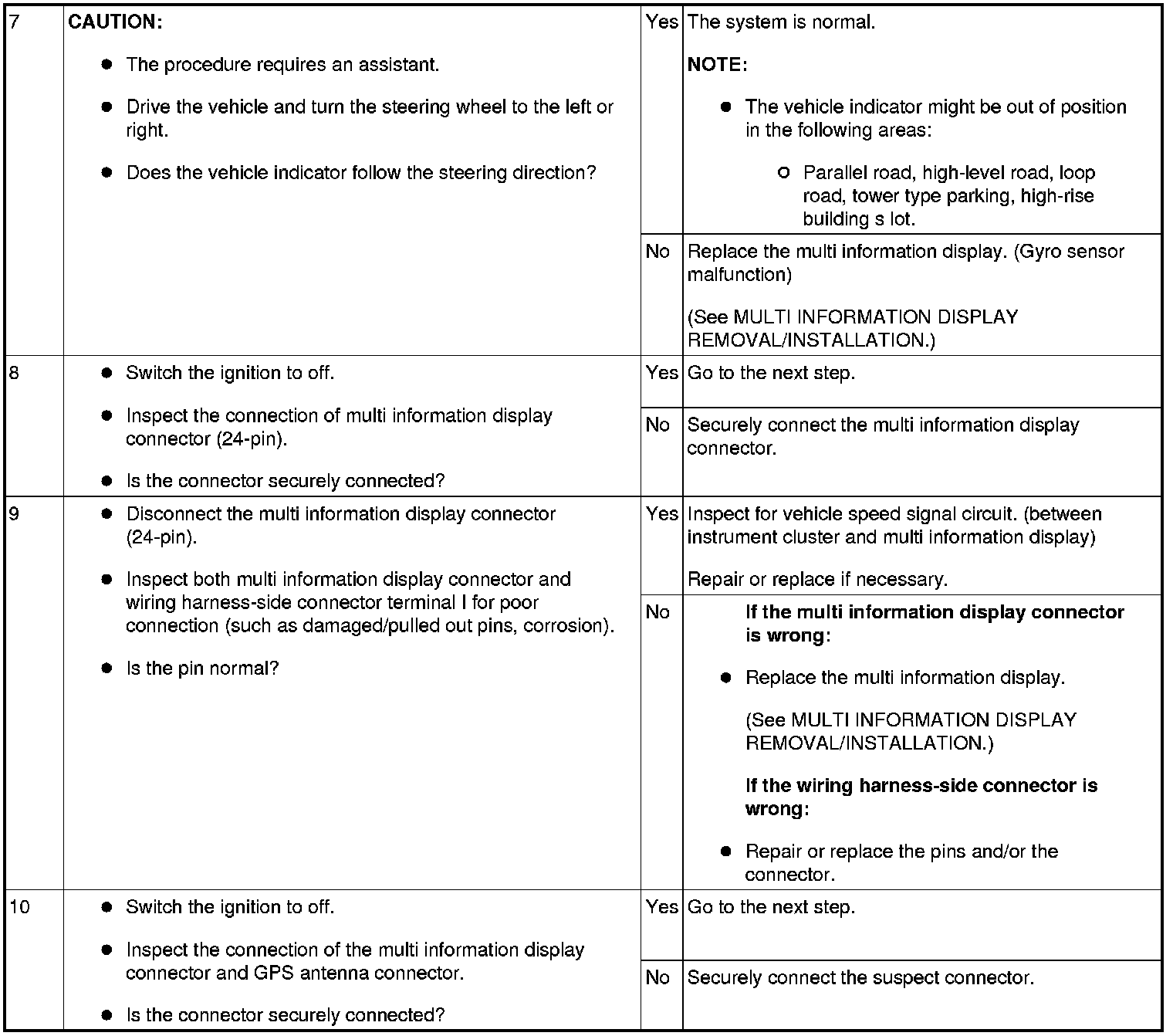

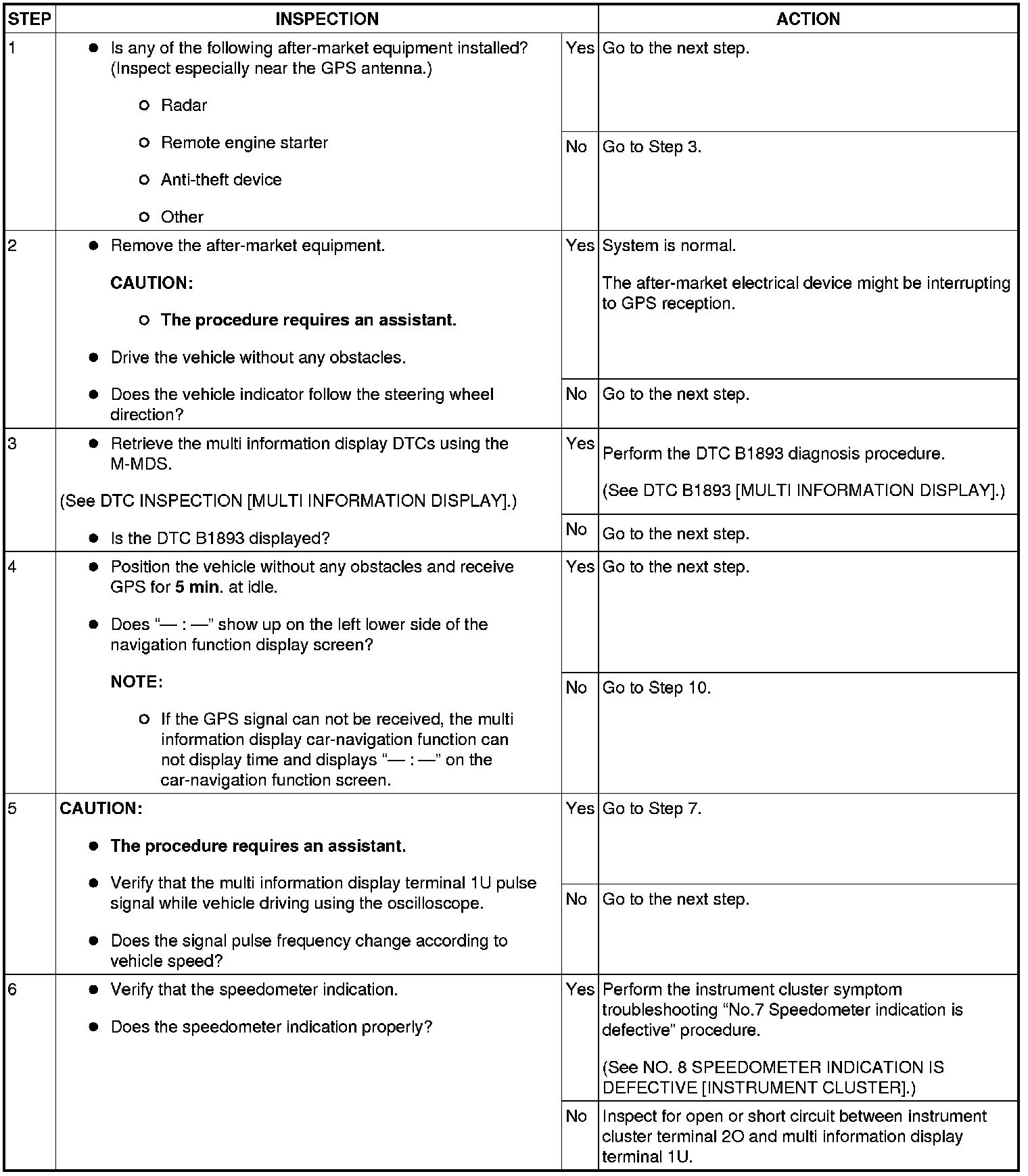

Diagnostic procedure
