Home >> Mazda >> 2011 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> No. 4 No Sound From Audio System

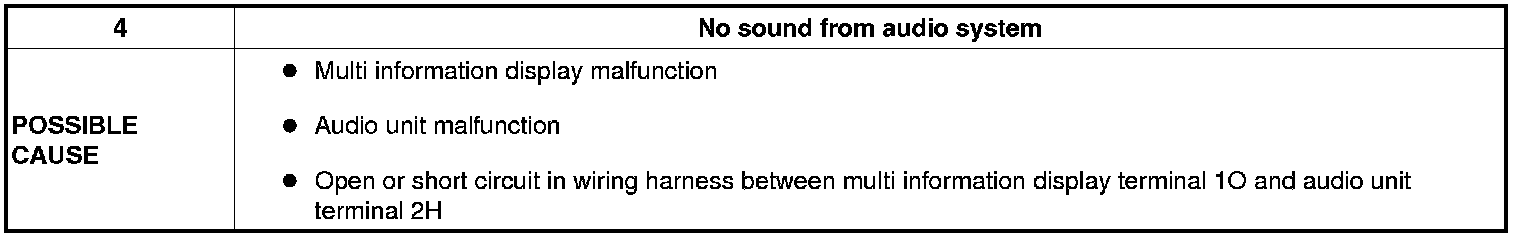

No. 4 No Sound From Audio System




NO.4 NO SOUND FROM AUDIO SYSTEM [CAR-NAVIGATION SYSTEM (INTEGRATED MULTI INFORMATION DISPLAY)]

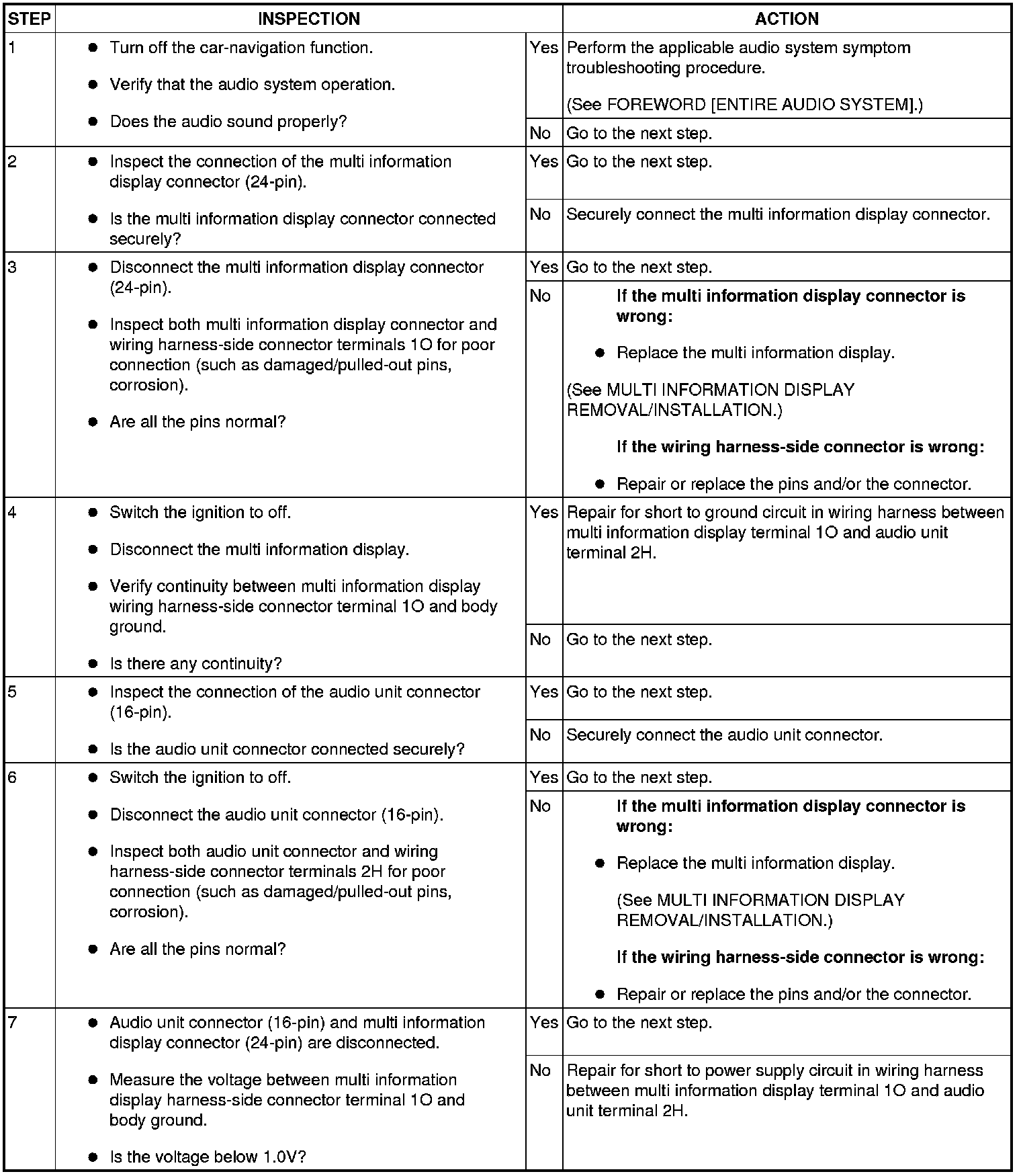

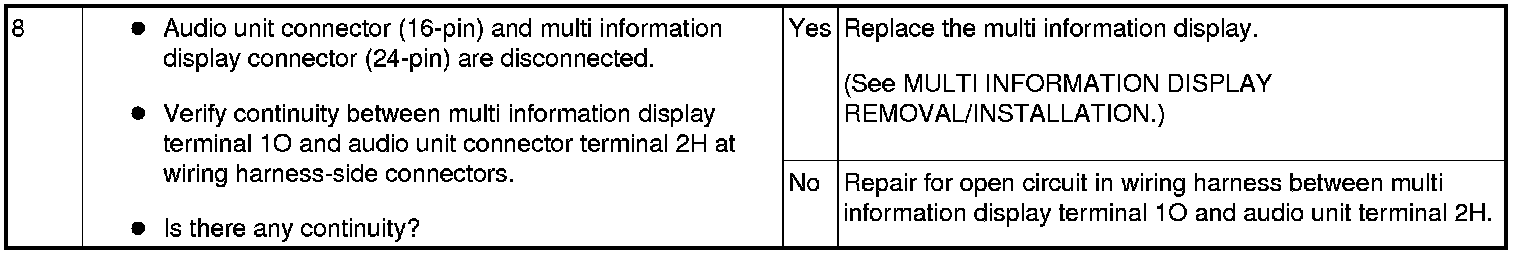

Diagnostic procedure
