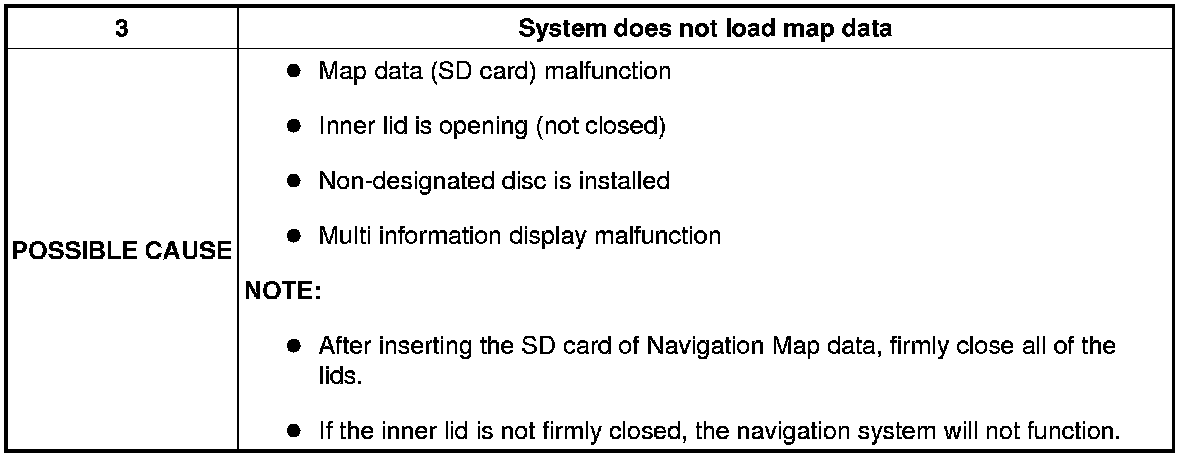

No. 3 System Does Not Load Map Data




NO.3 SYSTEM DOES NOT LOAD MAP DATA [CAR-NAVIGATION SYSTEM (INTEGRATED MULTI INFORMATION DISPLAY)]

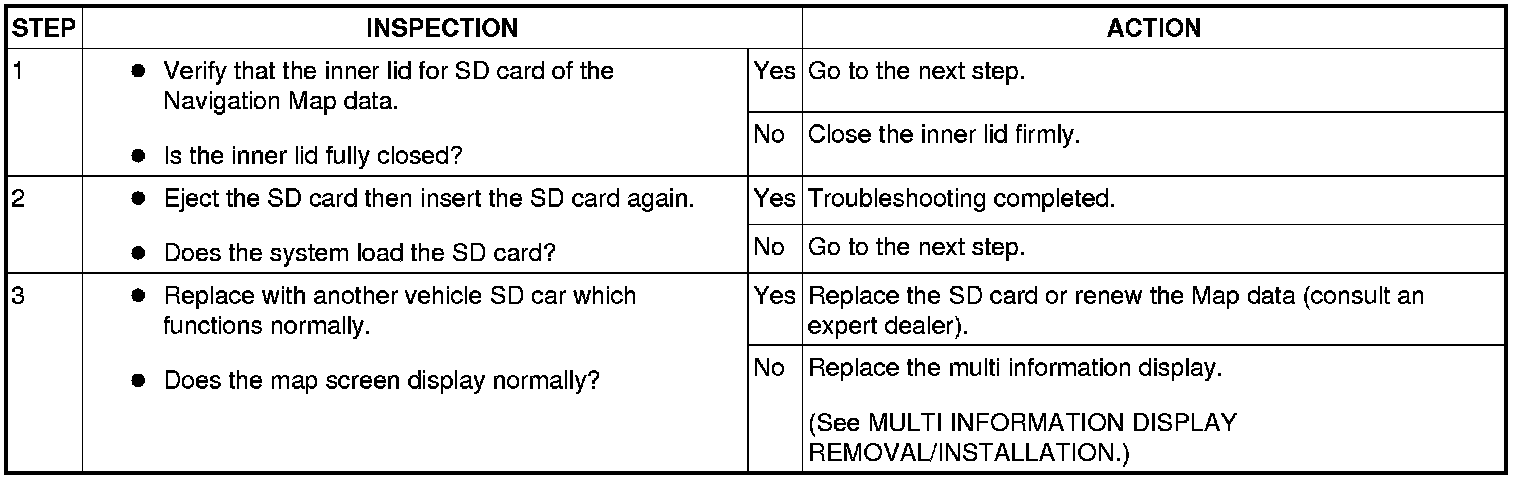

Diagnostic procedure
