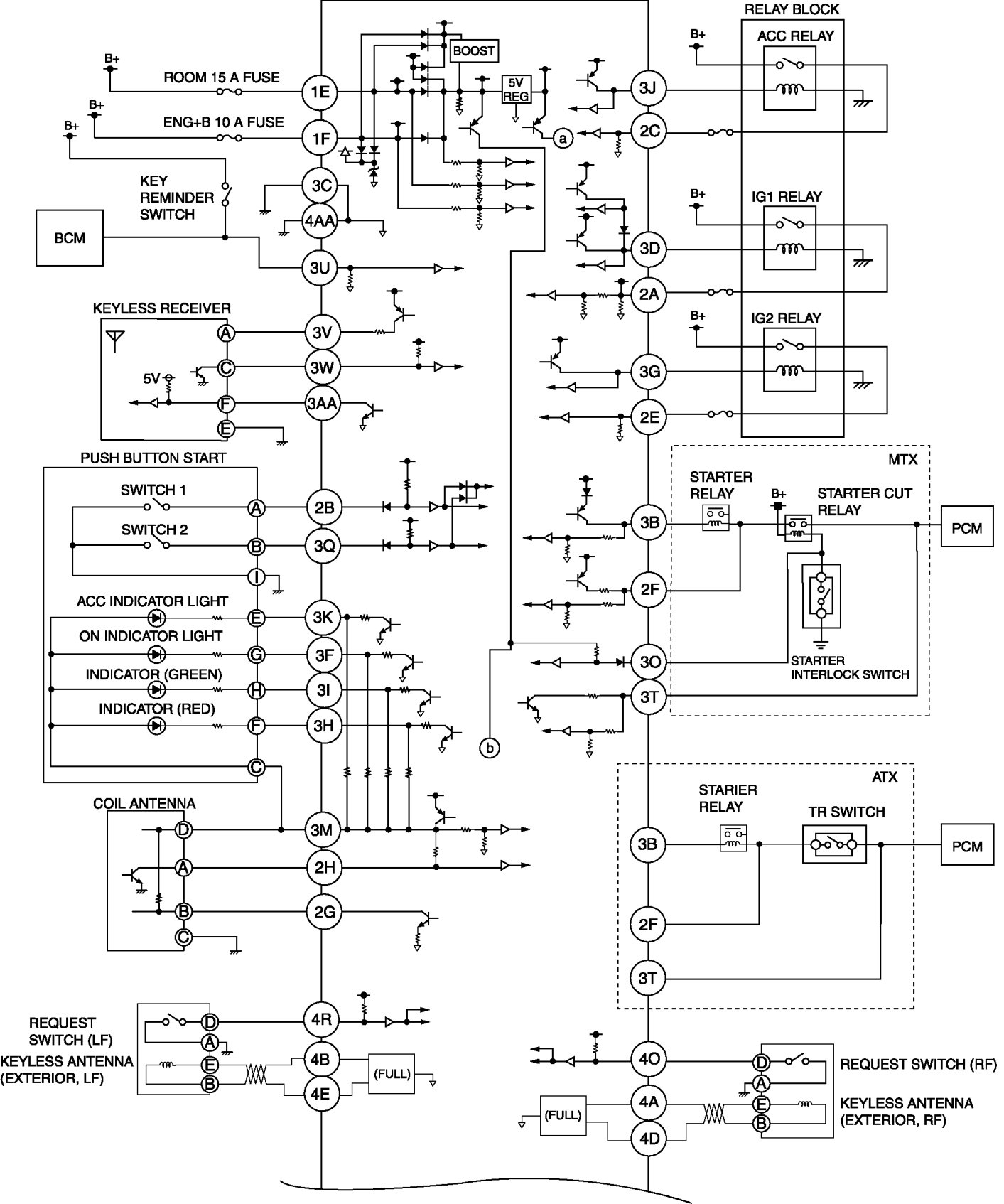

Keyless Entry System Wiring Diagram - Keyless Entry System

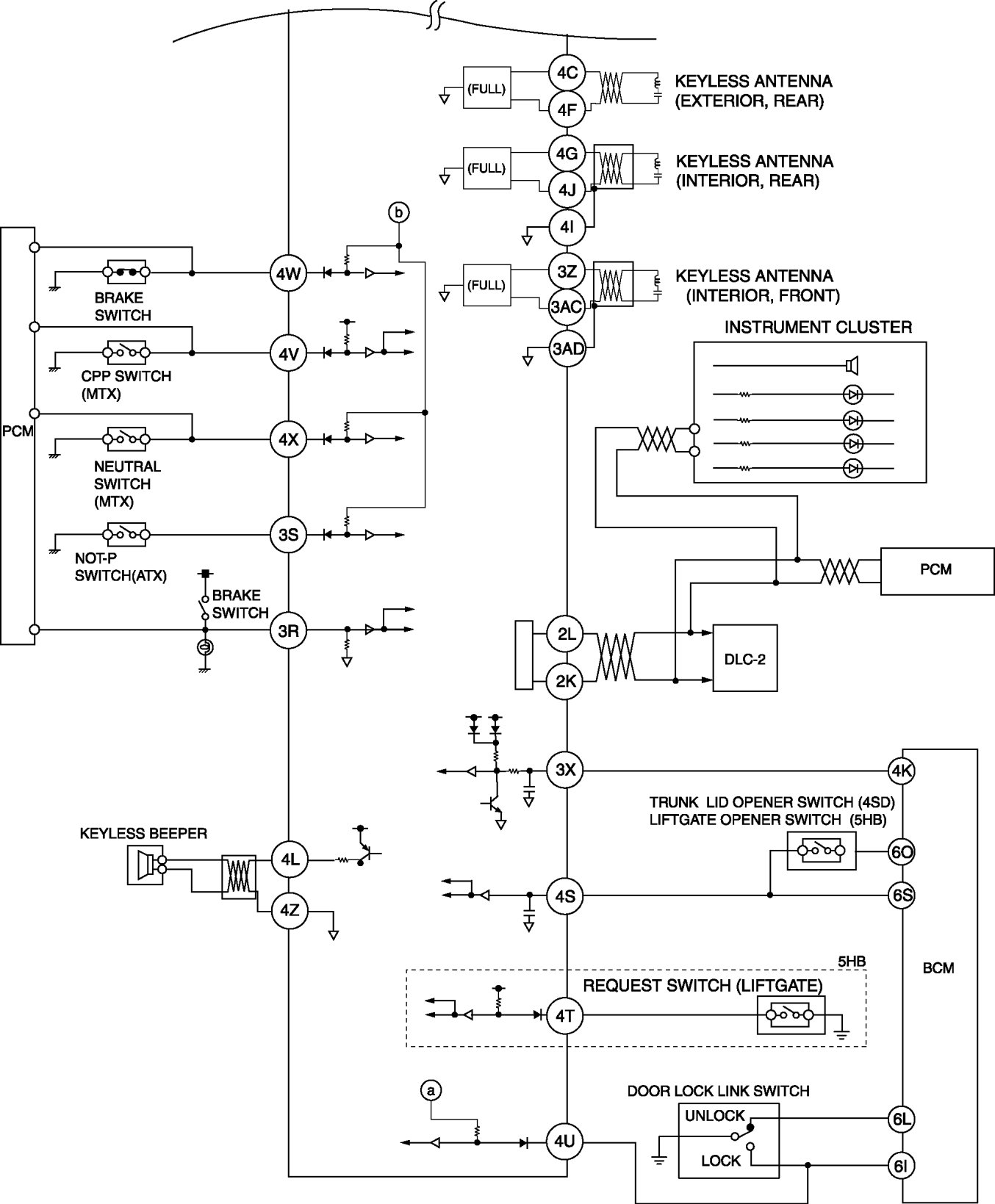

Keyless Entry System Wiring Diagram - Keyless Entry System
ON-BOARD DIAGNOSTIC WIRING DIAGRAM [ADVANCED
KEYLESS ENTRY
AND PUSH BUTTON START SYSTEM]
