Front Bearing Inner Race Disassembly Note

Front Bearing Inner Race Disassembly Note

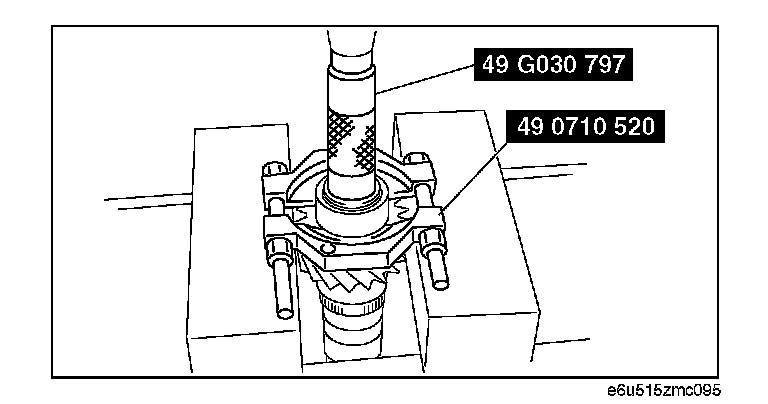

1. Remove the front bearing inner race using the SSTs and a press.
