Joint Shaft Assembly

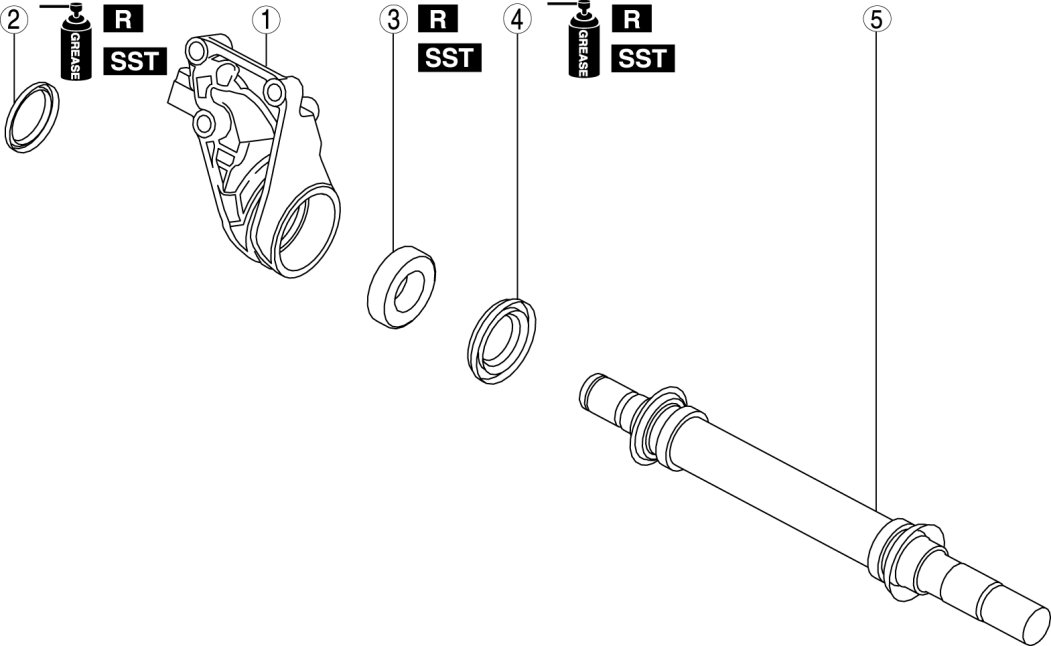

JOINT SHAFT ASSEMBLY [L3 WITH TC]

1. Assemble in the order indicated in the table.










Dust Seal (RH) Assembly Note

1. Apply grease to a new dust seal lip.

2. Install the dust seal (RH) using the SST.






Bearing Assembly Note

1. Install a new bearing using the SSTs.






Dust Seal (LH) Assembly Note

1. Apply grease to a new dust seal lip.

2. Install a new dust seal (LH) using the steel plate and the SSTs.

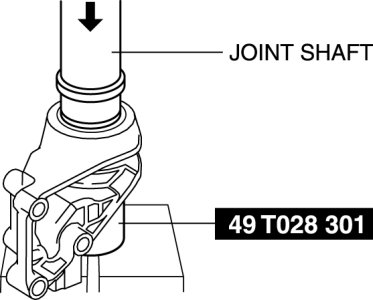

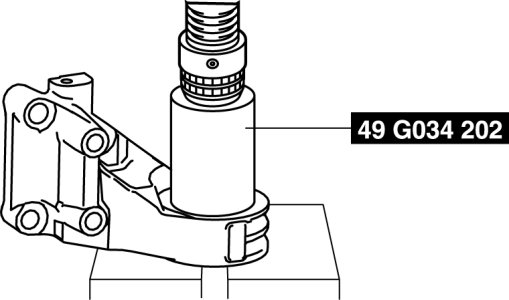

Joint Shaft Assembly Note

1. Press fit the joint shaft using the SST and a press.
