PID/Data Monitor Table




PID/DATA MONITOR TABLE

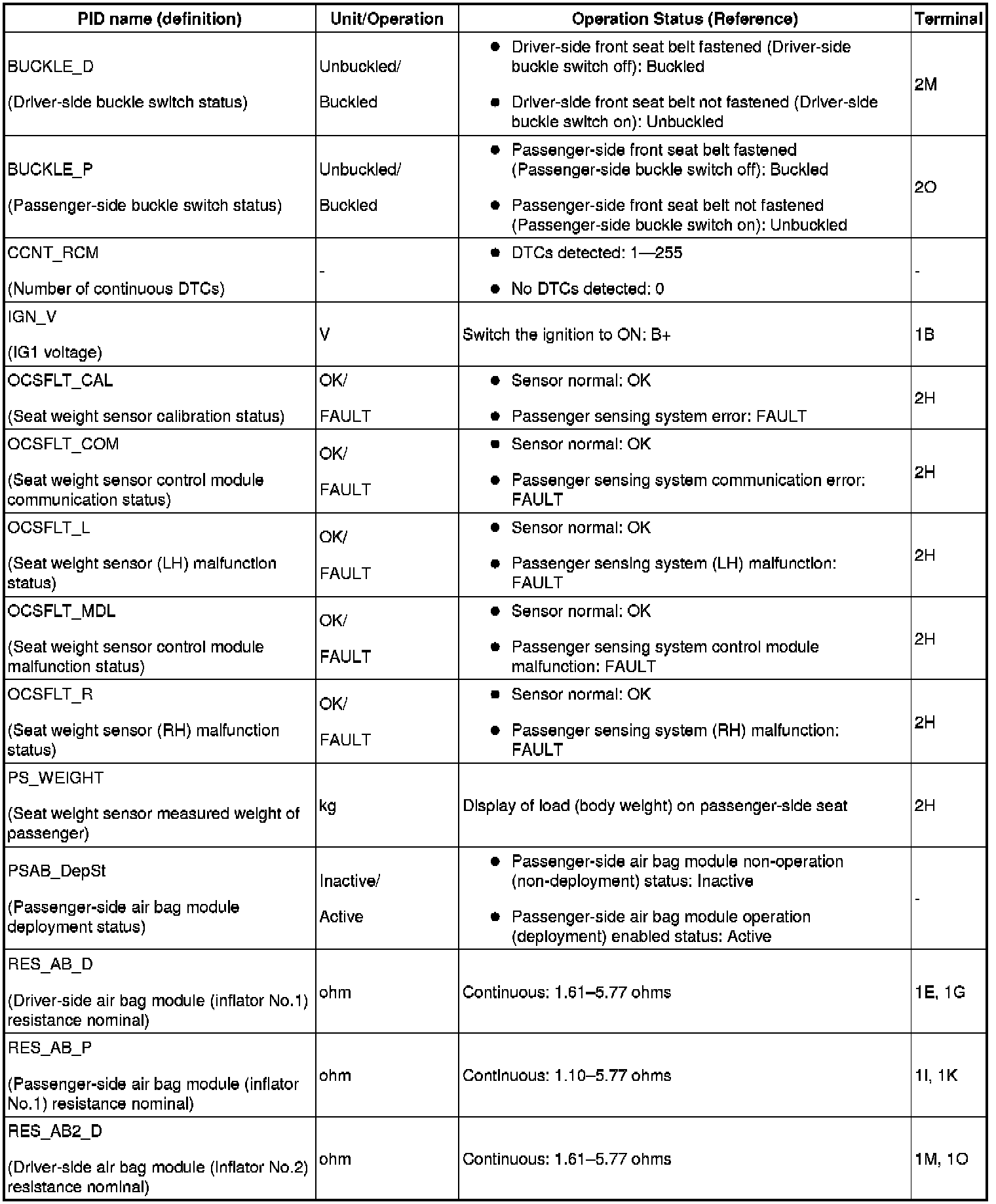

PID/DATA Monitor Table (Part 1):

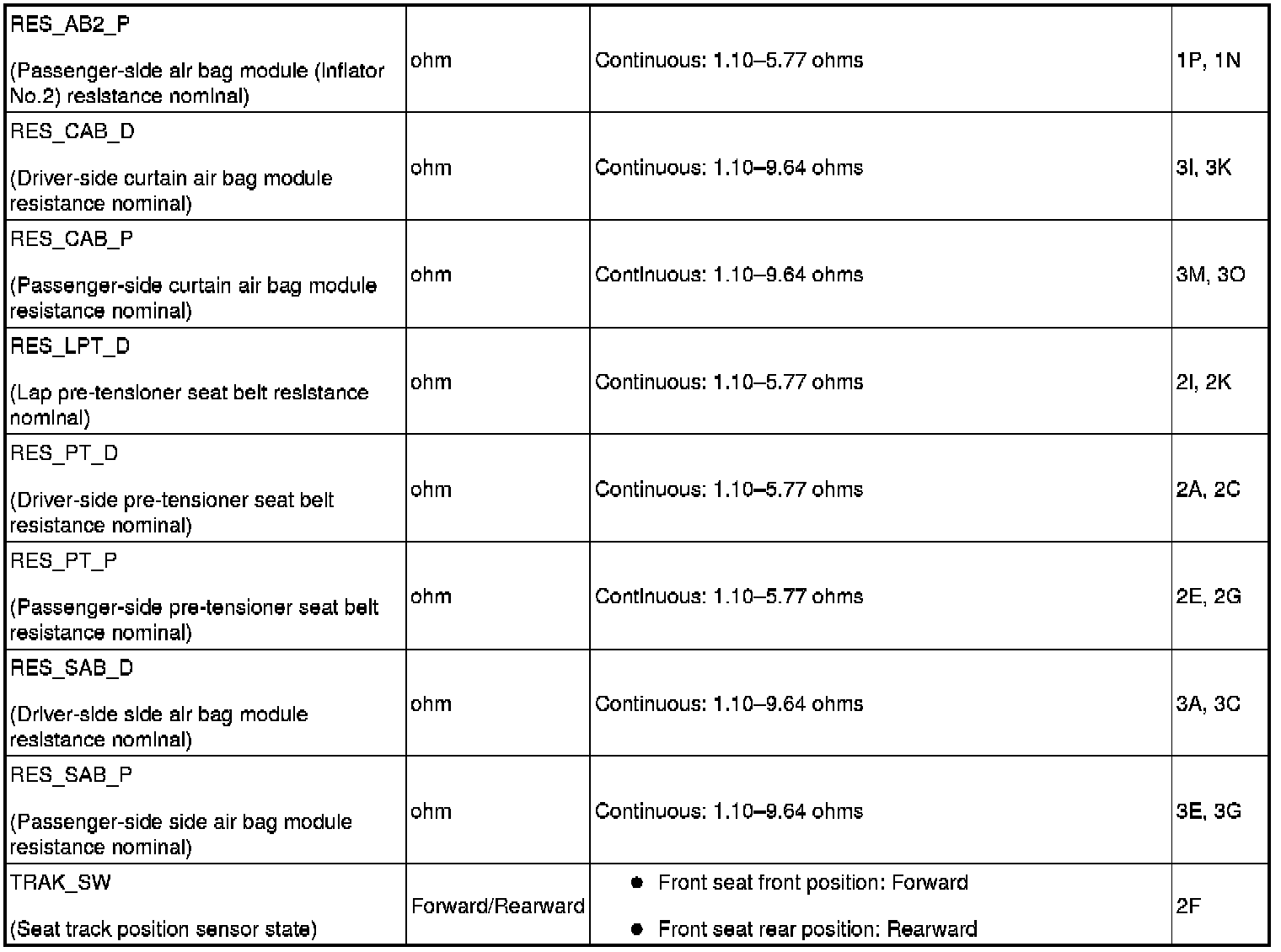

PID/DATA Monitor Table (Part 2):
