No.2 Air Bag System Warning Light Illuminates Constantly




NO.2 AIR BAG SYSTEM WARNING LIGHT ILLUMINATES CONSTANTLY

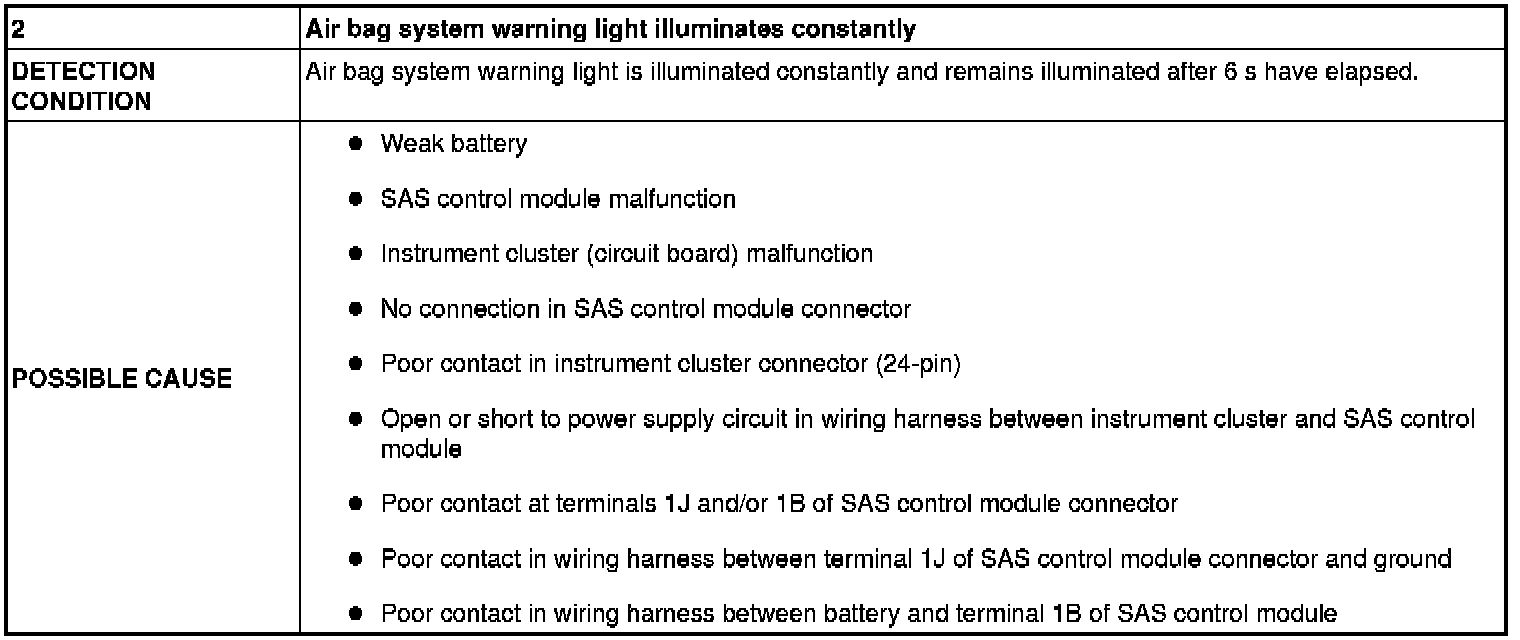

Detection Condition/Possible Cause:

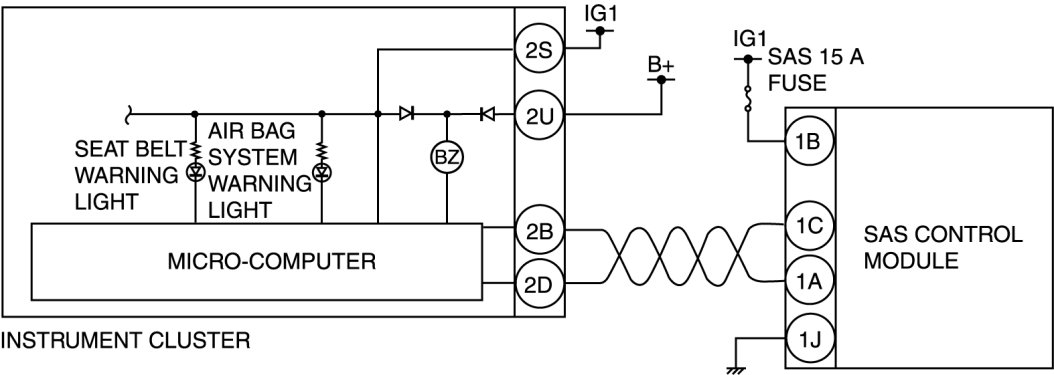

System Wiring Diagram





Diagnostic Procedure

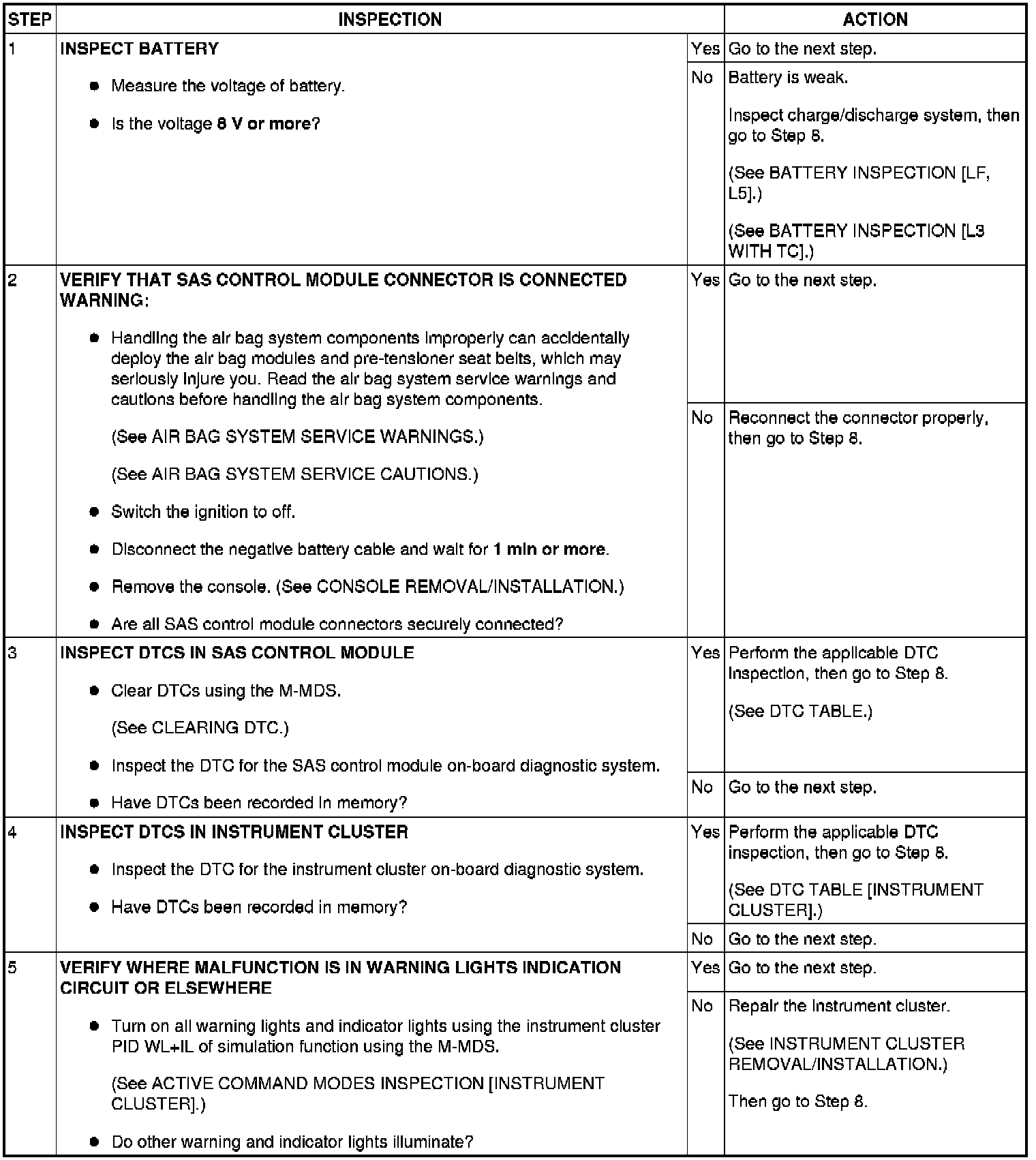

Step 1-Step 5:

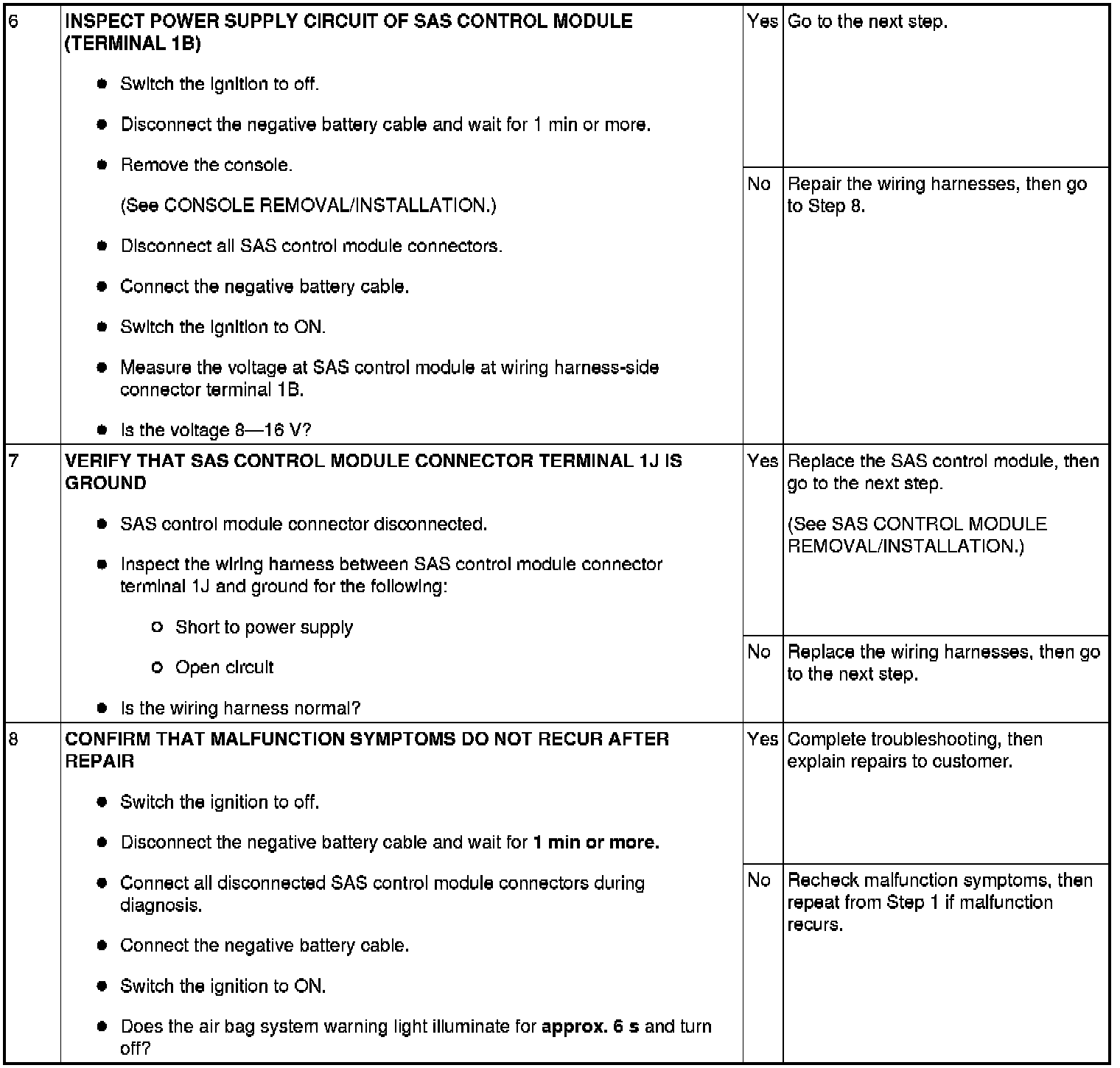

Step 6-Step 8:
