Evaporative Emission Control Canister: Service and Repair

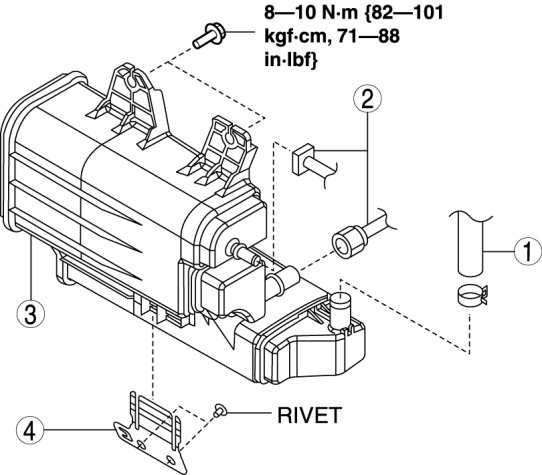

CHARCOAL CANISTER REMOVAL/INSTALLATION [L3 WITH TC]

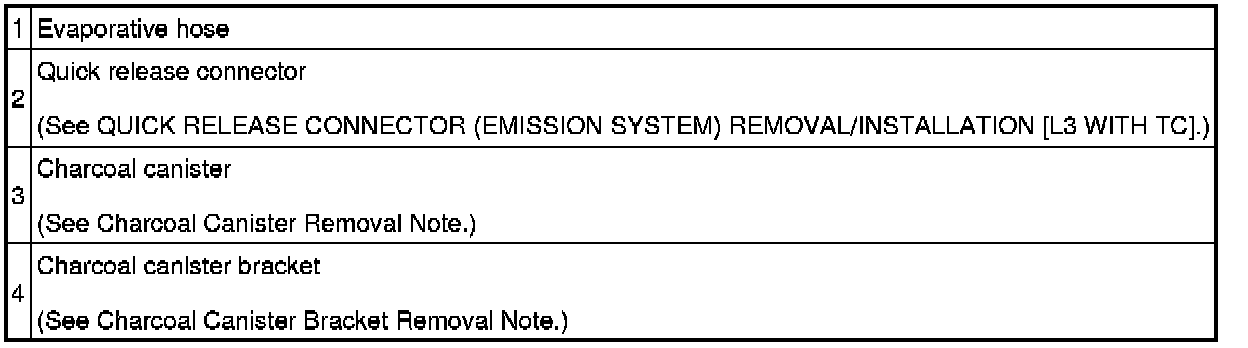

1. Remove in the order indicated in the table.










2. Install in the reverse order of removal.

Charcoal Canister Removal Note

1. Remove the rear stabilizer. Rear Suspension - Stabilizer Removal/Installation

2. Remove the rear coil spring. Rear Suspension

3. Remove the rear lower arm. Rear Suspension - Lower Arm Removal/Installation

4. Remove the rear crossmember component. Service and Repair

5. Remove the charcoal canister.

Charcoal Canister Bracket Removal Note

NOTE:
- The charcoal canister bracket is installed using rivets.

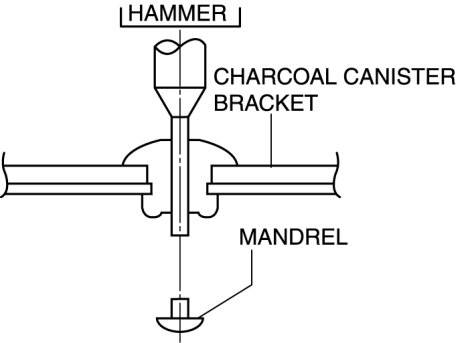

1. Push out the mandrel using a hammer and punch (2-2.8 mm {0.08-0.11 in} diameter).






2. Remove the flange using a drill (5 mm {0.20 in} drill bit).
