Headlamp: Description and Operation

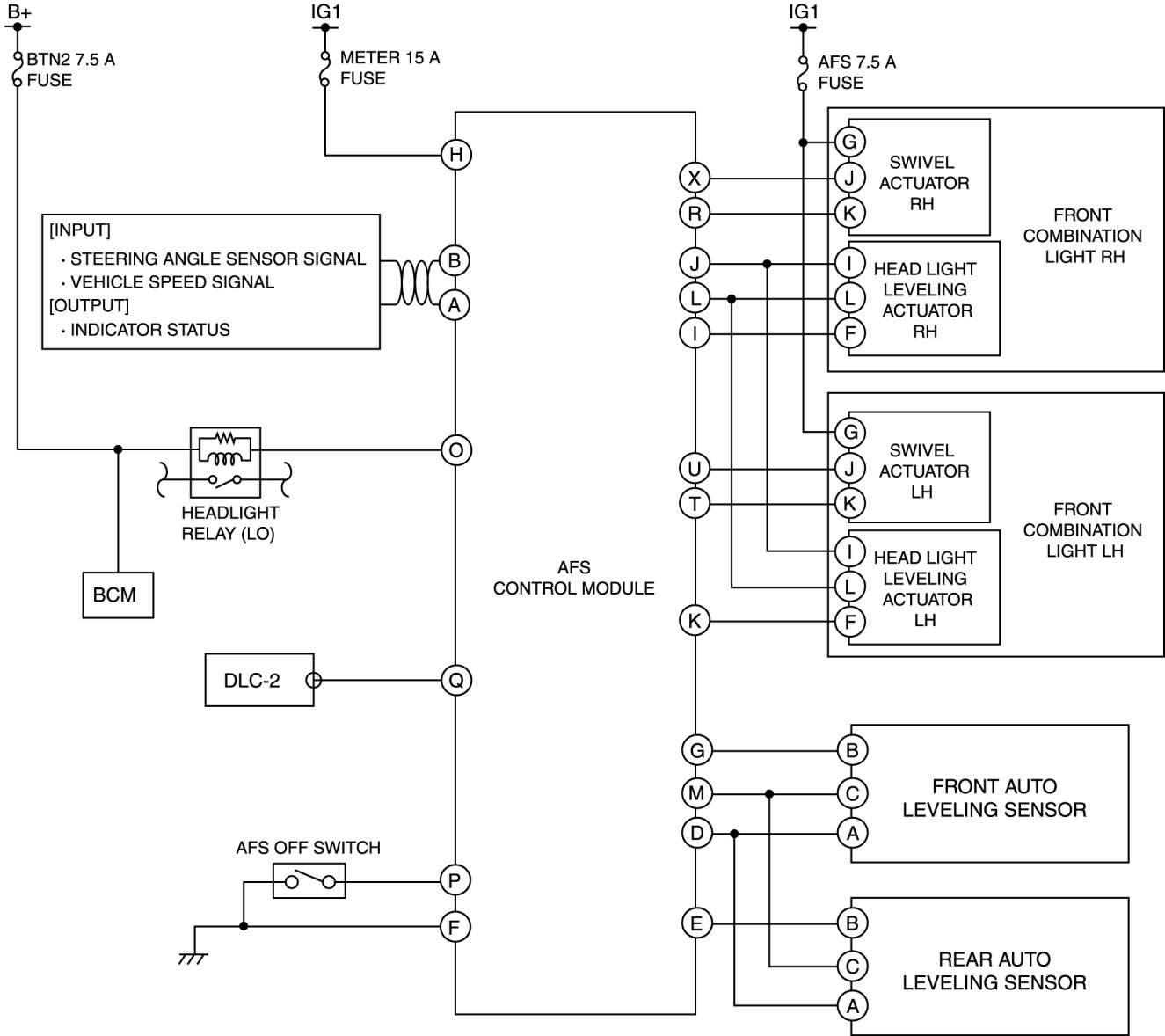

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)]
