NO.6 AIR FROM VENTS NOT COLD ENOUGH [MANUAL AIR CONDITIONER]

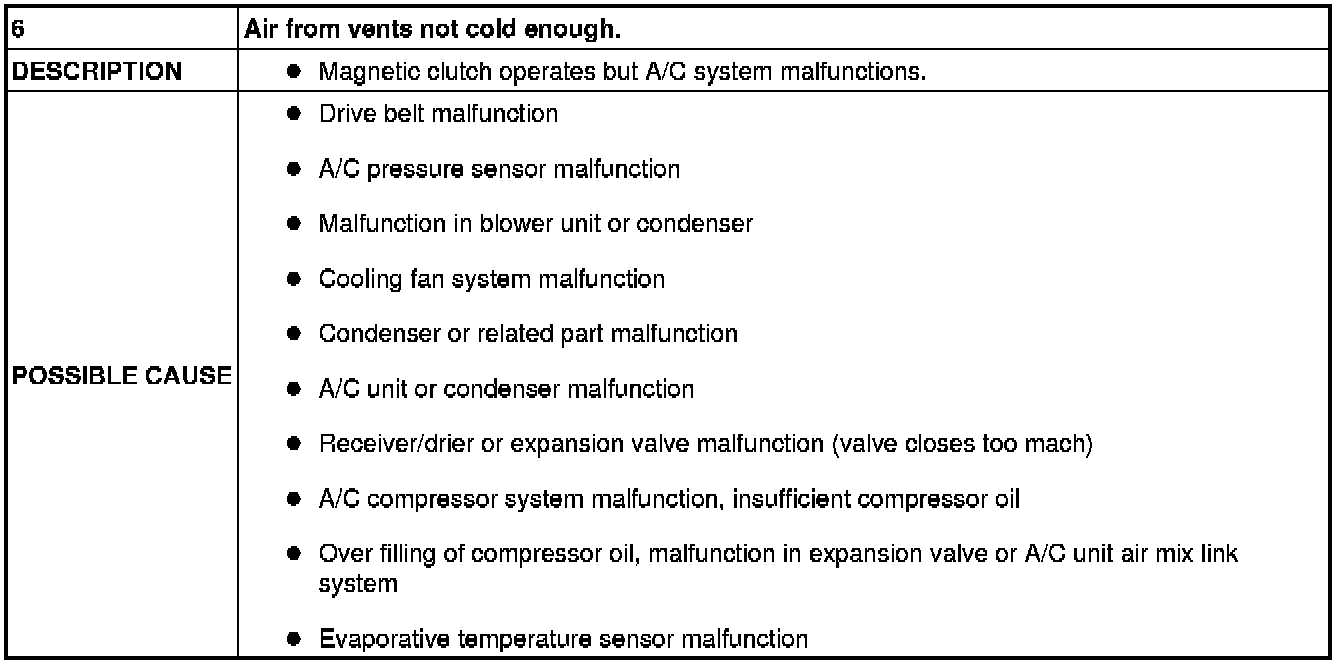

Description/Possible Cause:
Diagnostic procedure
Step 1-Step 5:

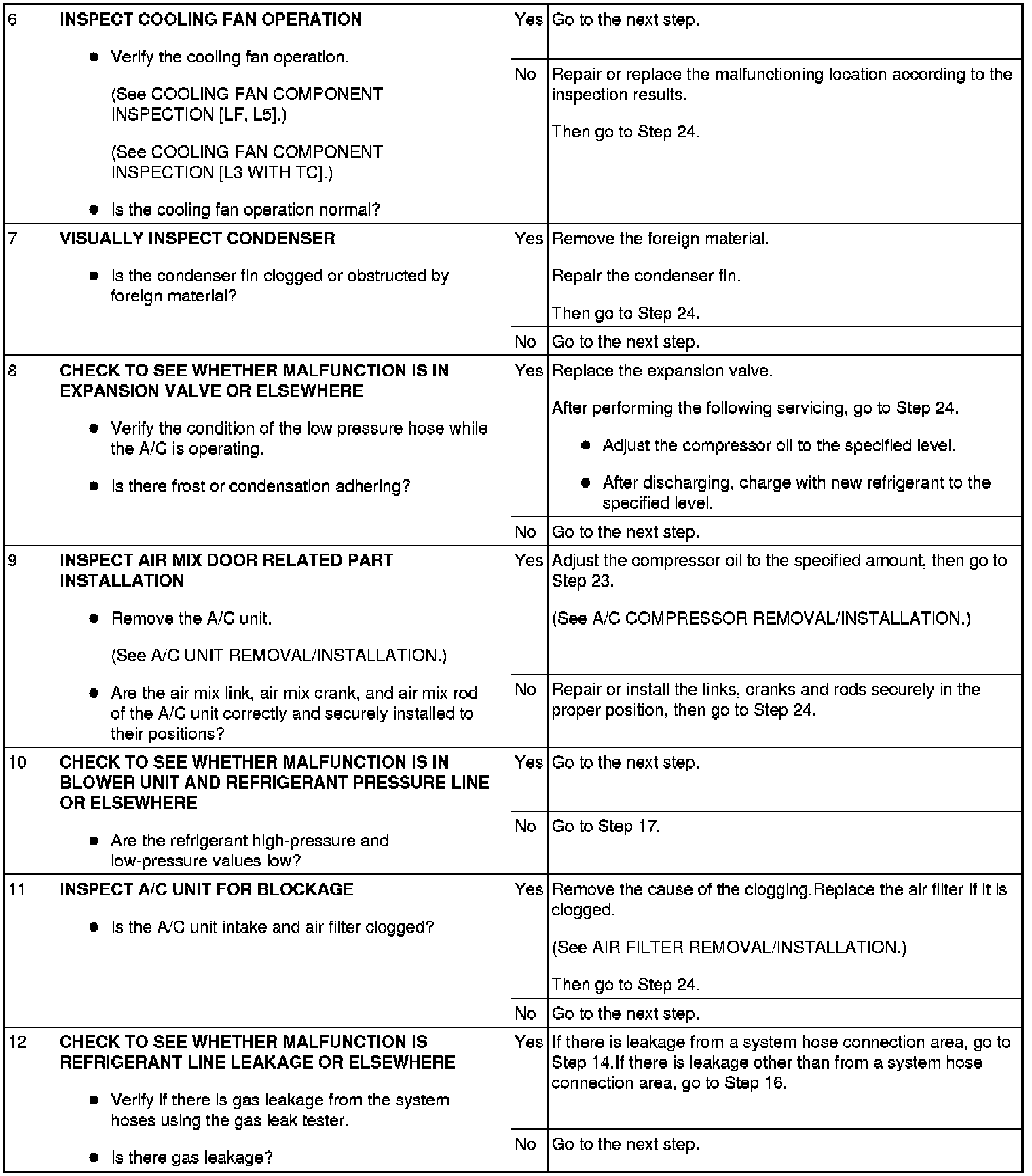

Step 6-Step 12:
Step 13-Step 17:

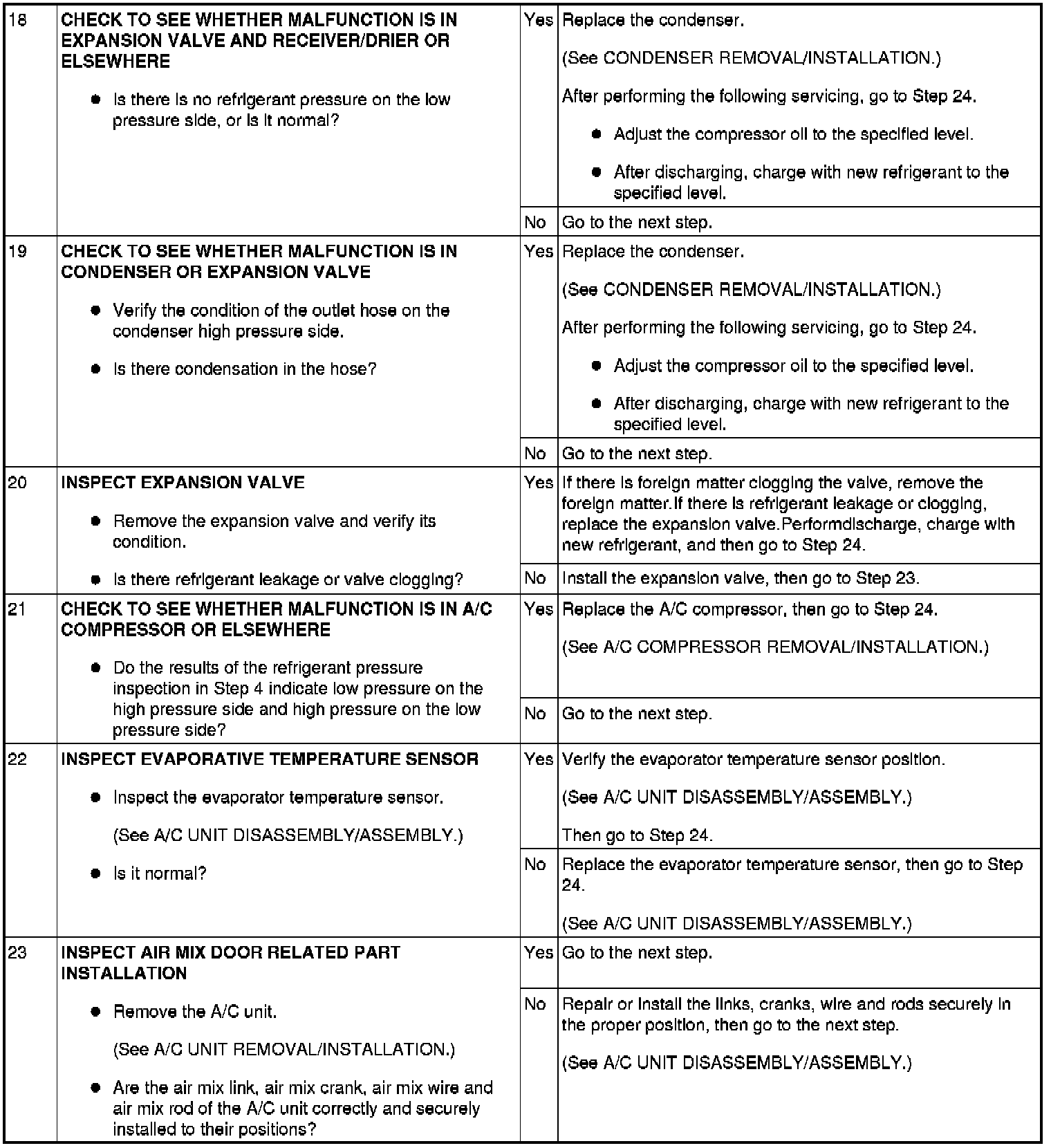

Step 18-Step 23:
Step 24:
