HVAC System Wiring Diagram - Manual Air Conditioner
HVAC System Wiring Diagram - Manual Air Conditioner

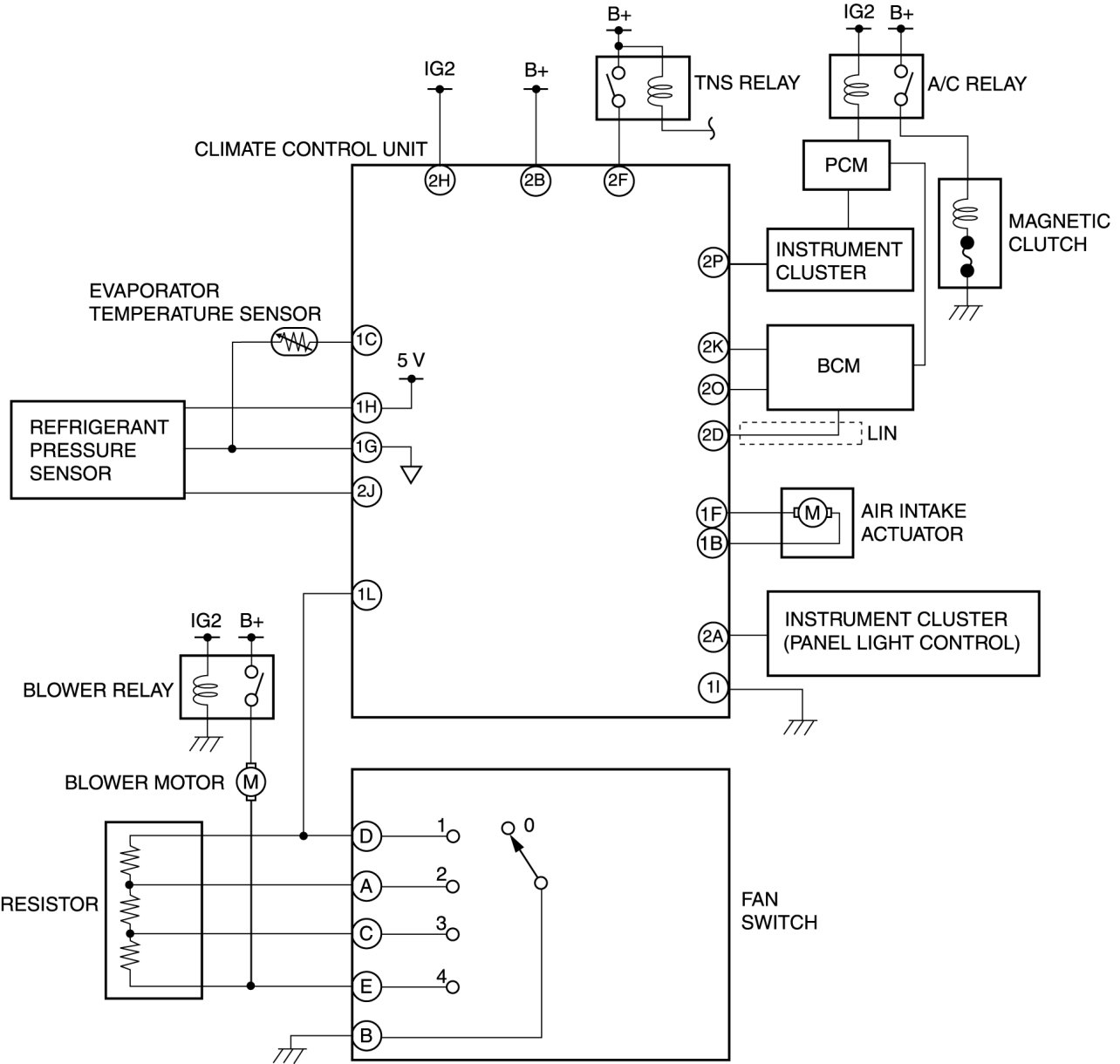

HVAC SYSTEM WIRING DIAGRAM [MANUAL AIR CONDITIONER]
