Troubleshooting Index - Full-Auto Air Conditioner




TROUBLESHOOTING INDEX [FULL-AUTO AIR CONDITIONER]

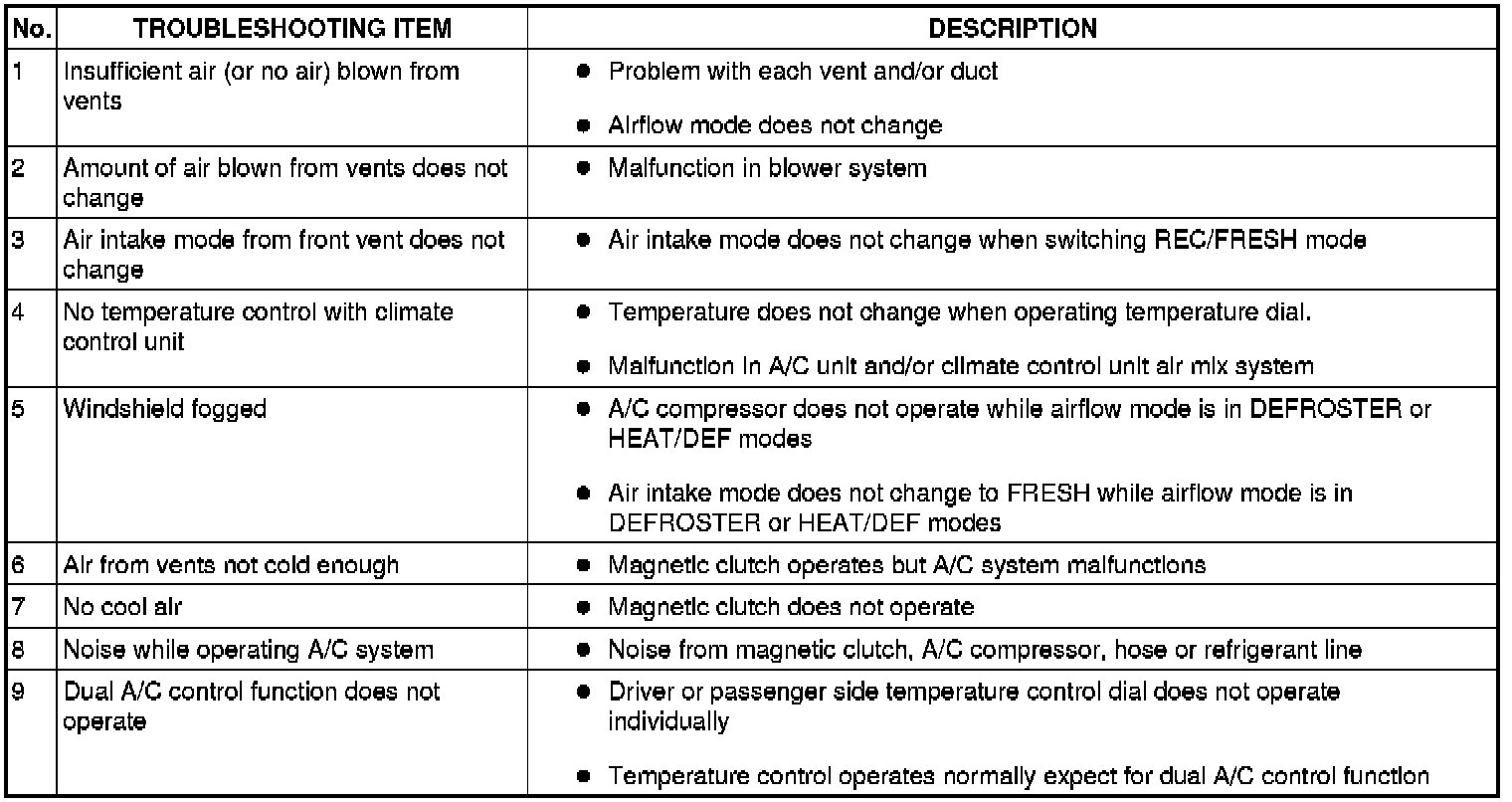

Troubleshooting Index:
