No.6 Cranks Normally But Will Not Start
No.6 Cranks Normally But Will Not Start
NO.6 CRANKS NORMALLY BUT WILL NOT START [L3 WITH TC]
Description:
Possible Cause:
Diagnostic procedure

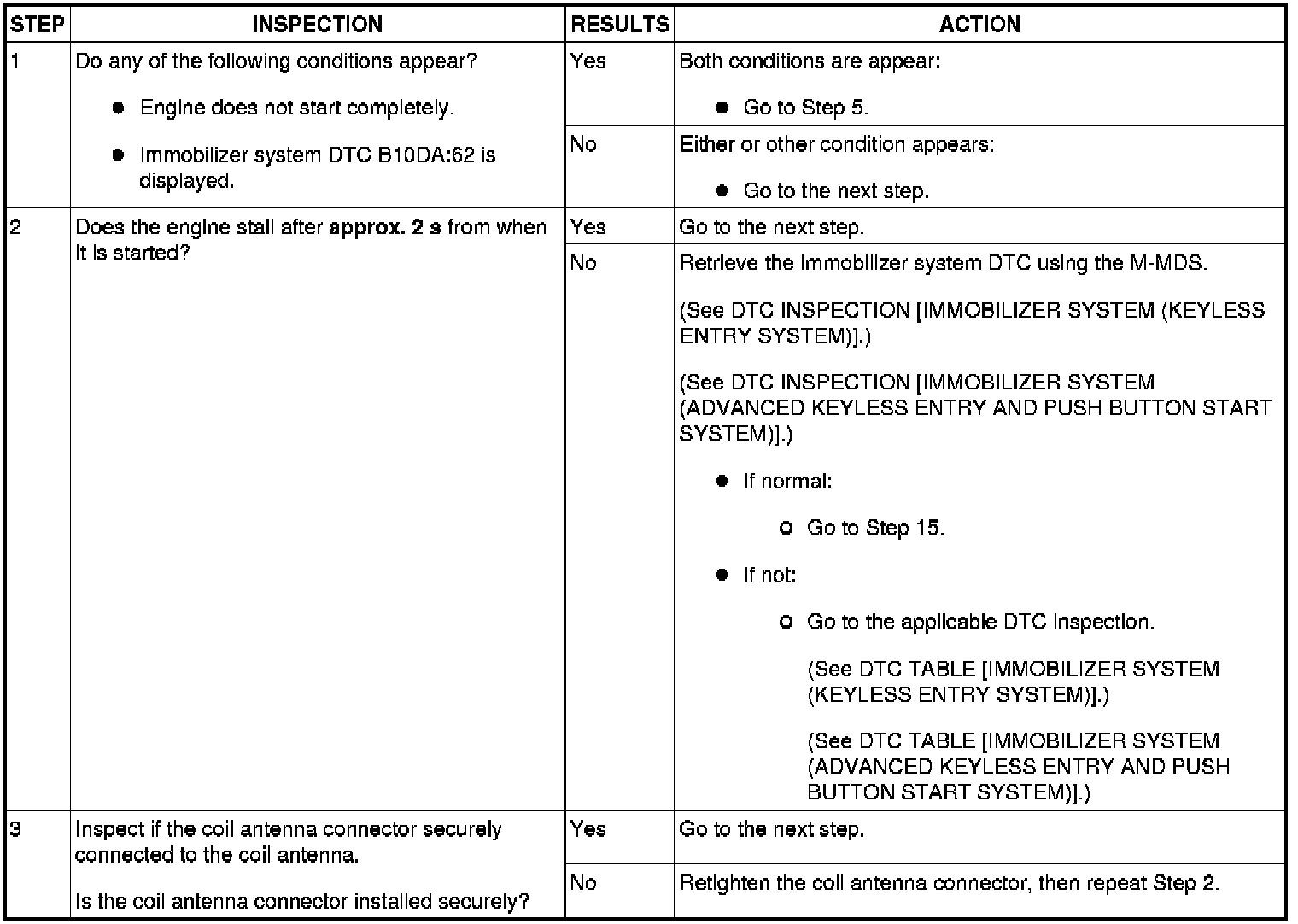

Step 1-Step 3:
Step 4-Step 8:

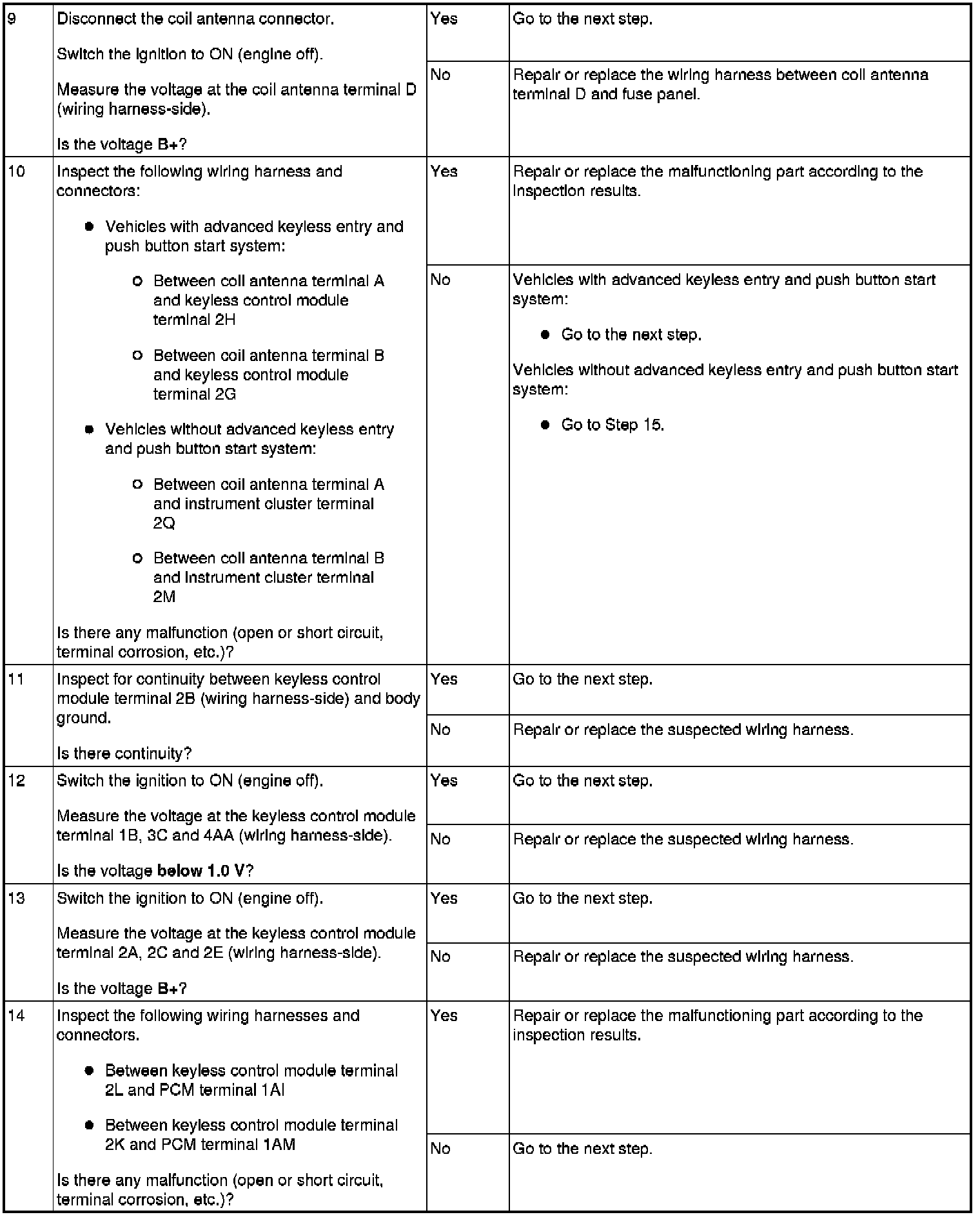

Step 9-Step 14:
Step 15-Step 20:

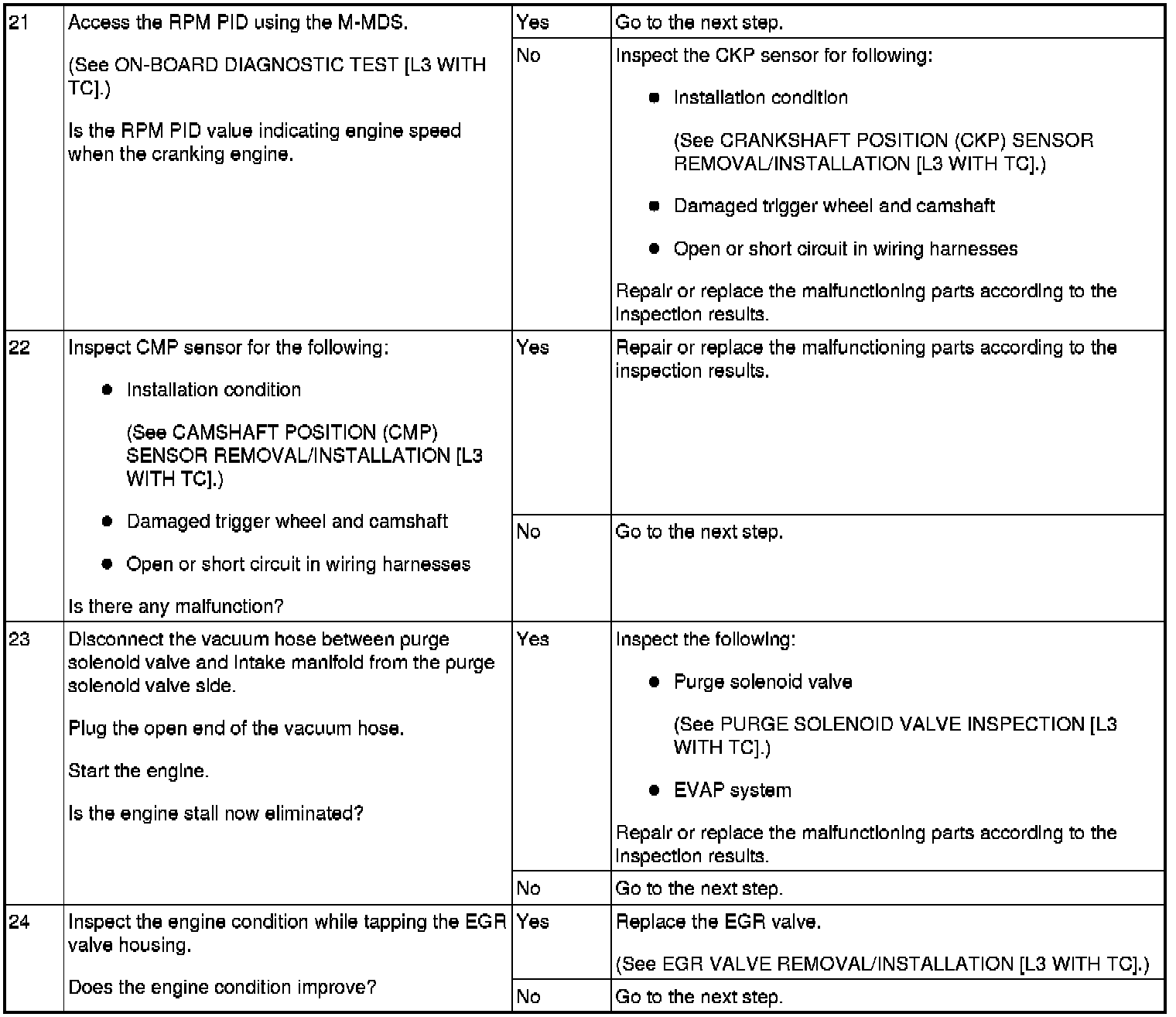

Step 21-Step 24:

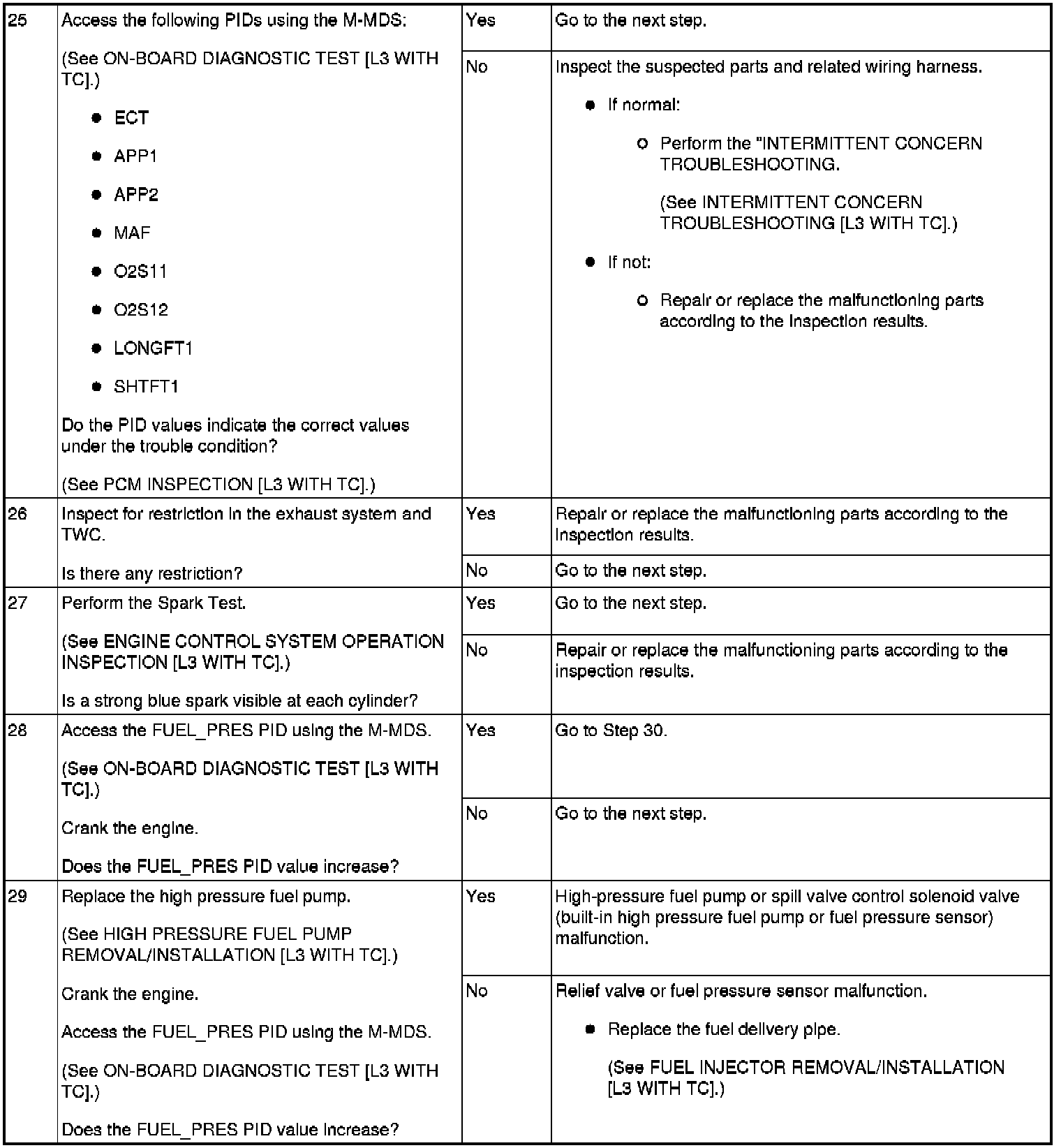

Step 25-Step 29:

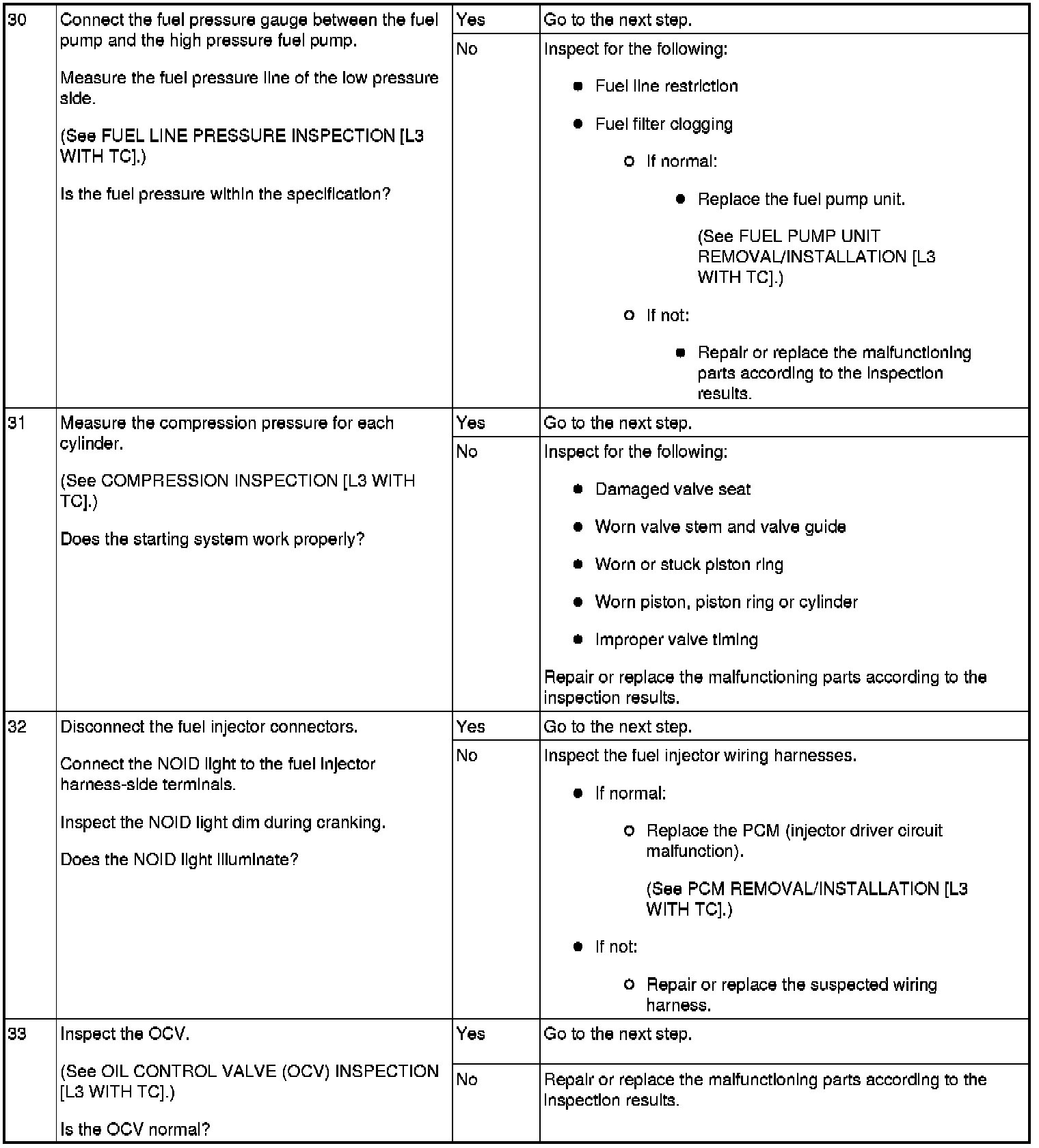

Step 30-Step 33:
Step 34-Step 35:
