No.29 Spark Plug Condition
No.29 Spark Plug Condition
NO.29
SPARK PLUG
CONDITION [L3 WITH TC]
Description/Possible Cause:
Diagnostic procedure

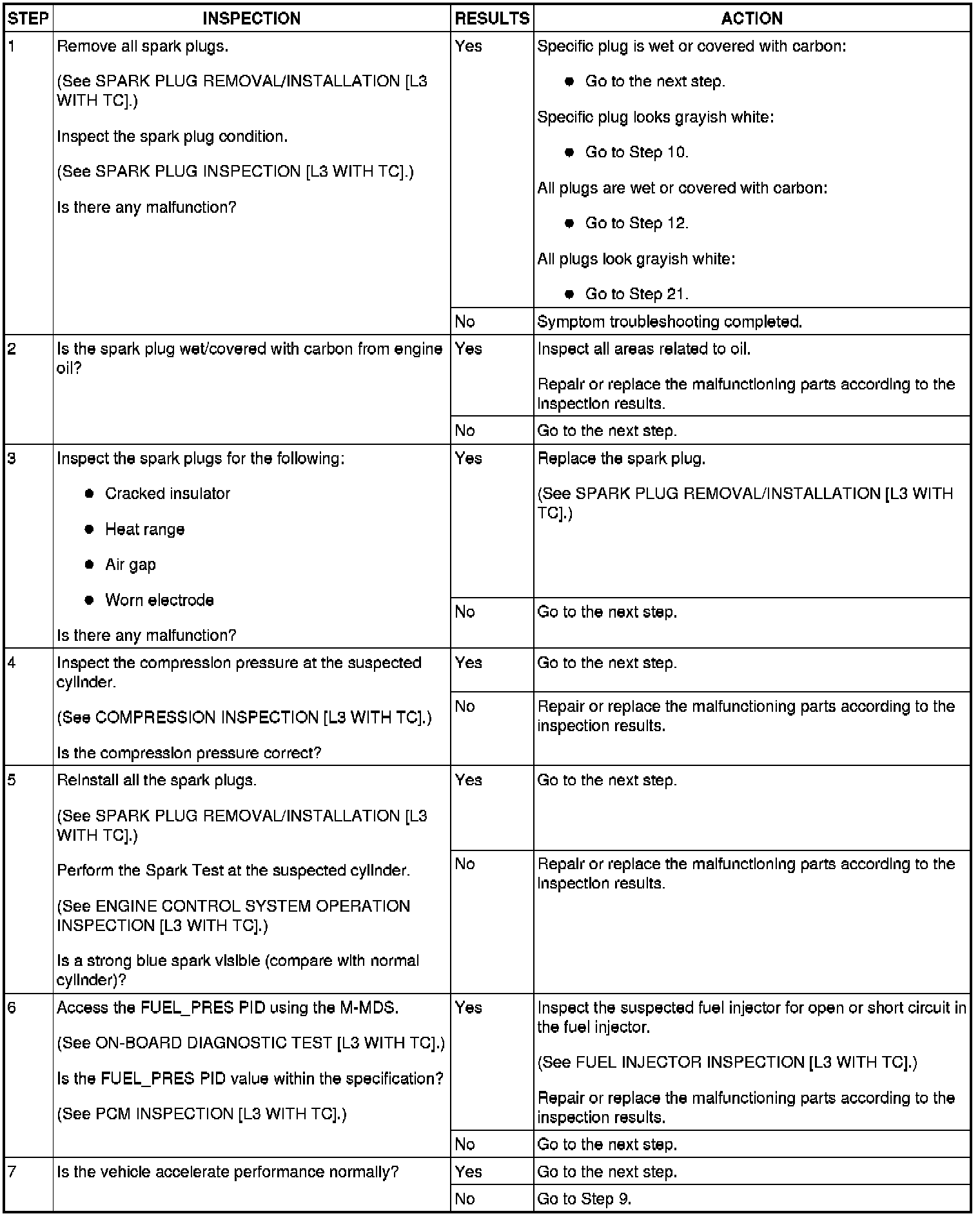

Step 1-Step 7:

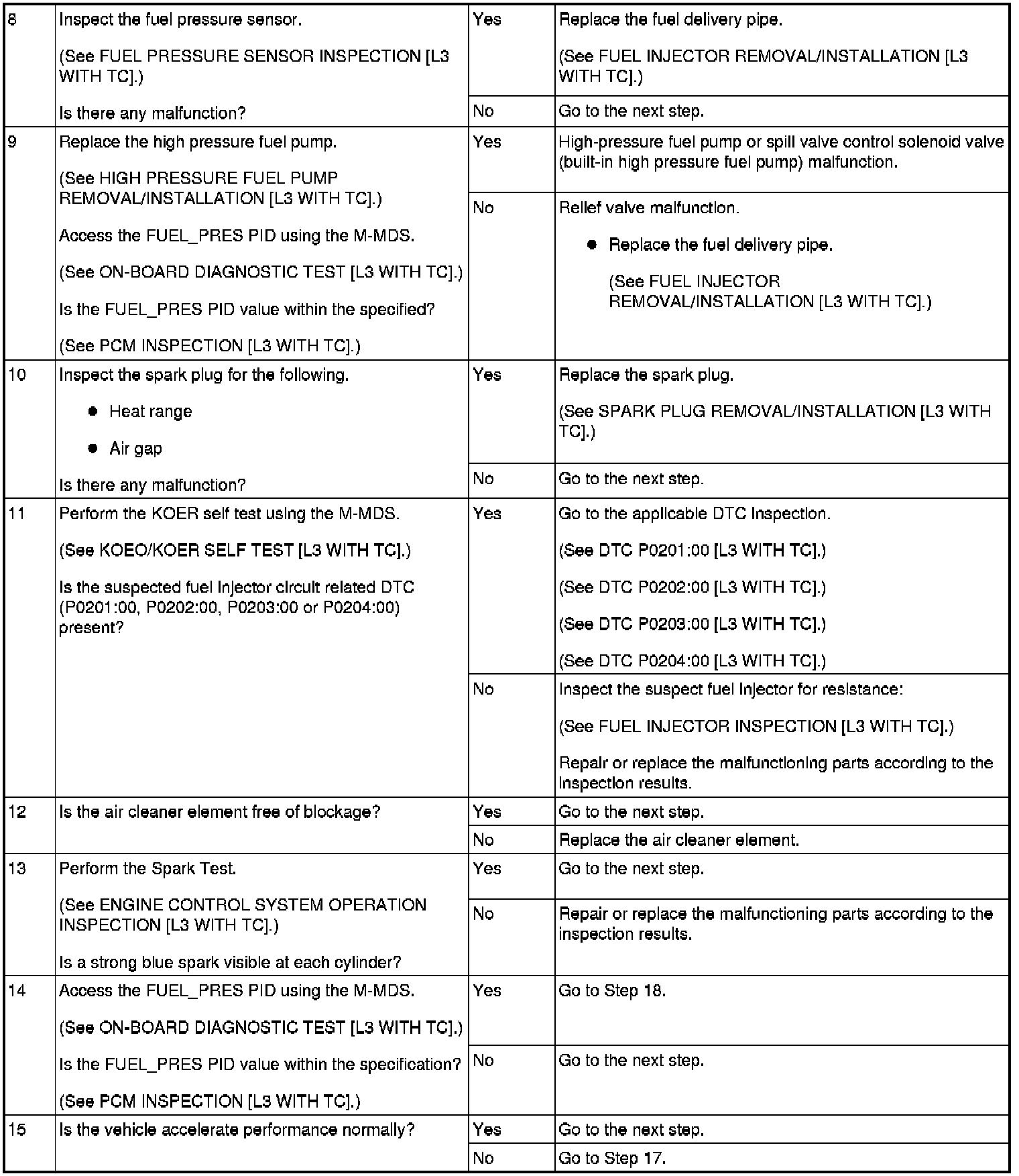

Step 8-Step 15:

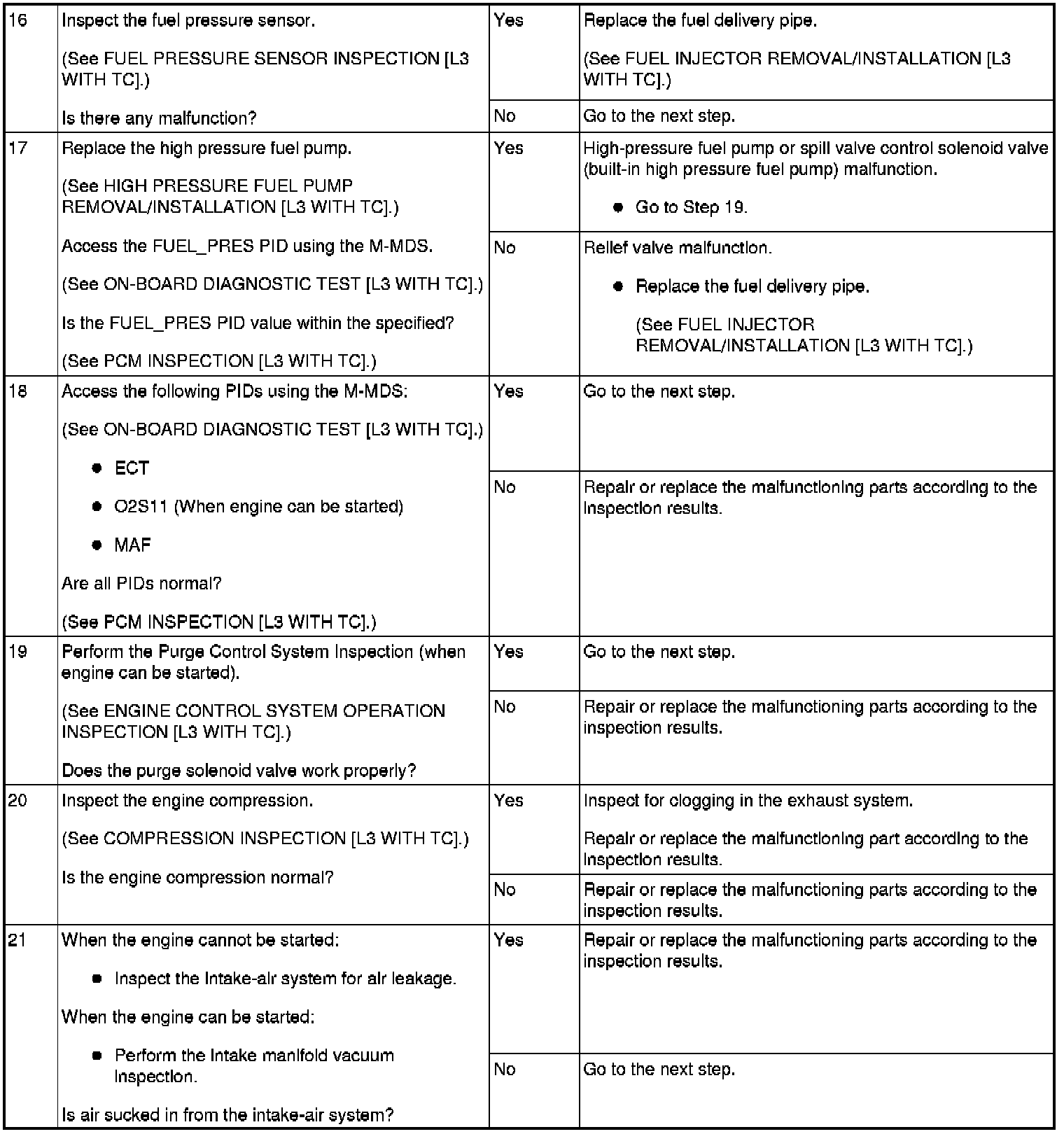

Step 16-Step 21:

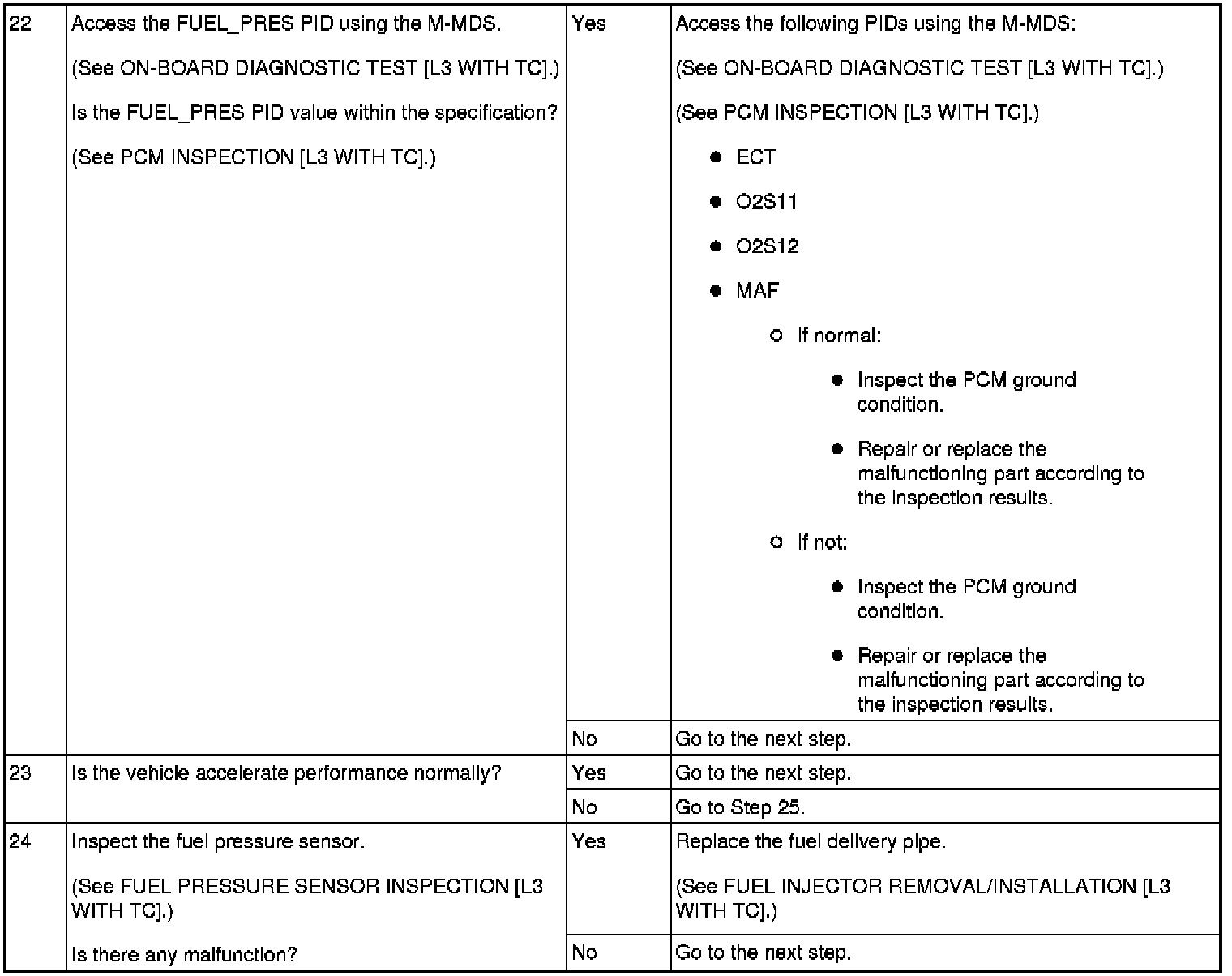

Step 22-Step 24:

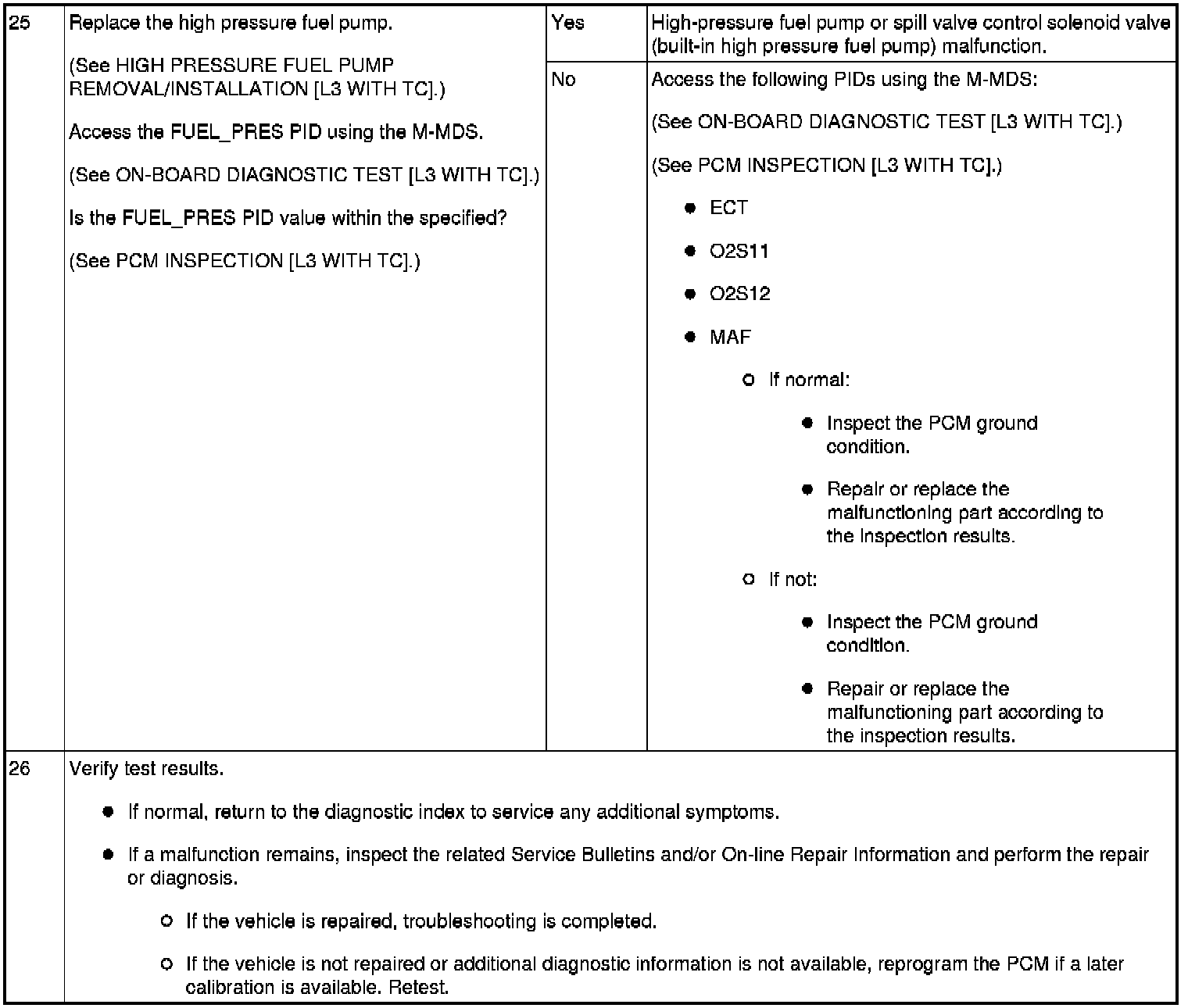

Step 25-Step 26:
