No.23 A/C Does Not Work Sufficiently
No.23 A/C Does Not Work Sufficiently
NO.23 A/C DOES NOT WORK SUFFICIENTLY [L3 WITH TC]

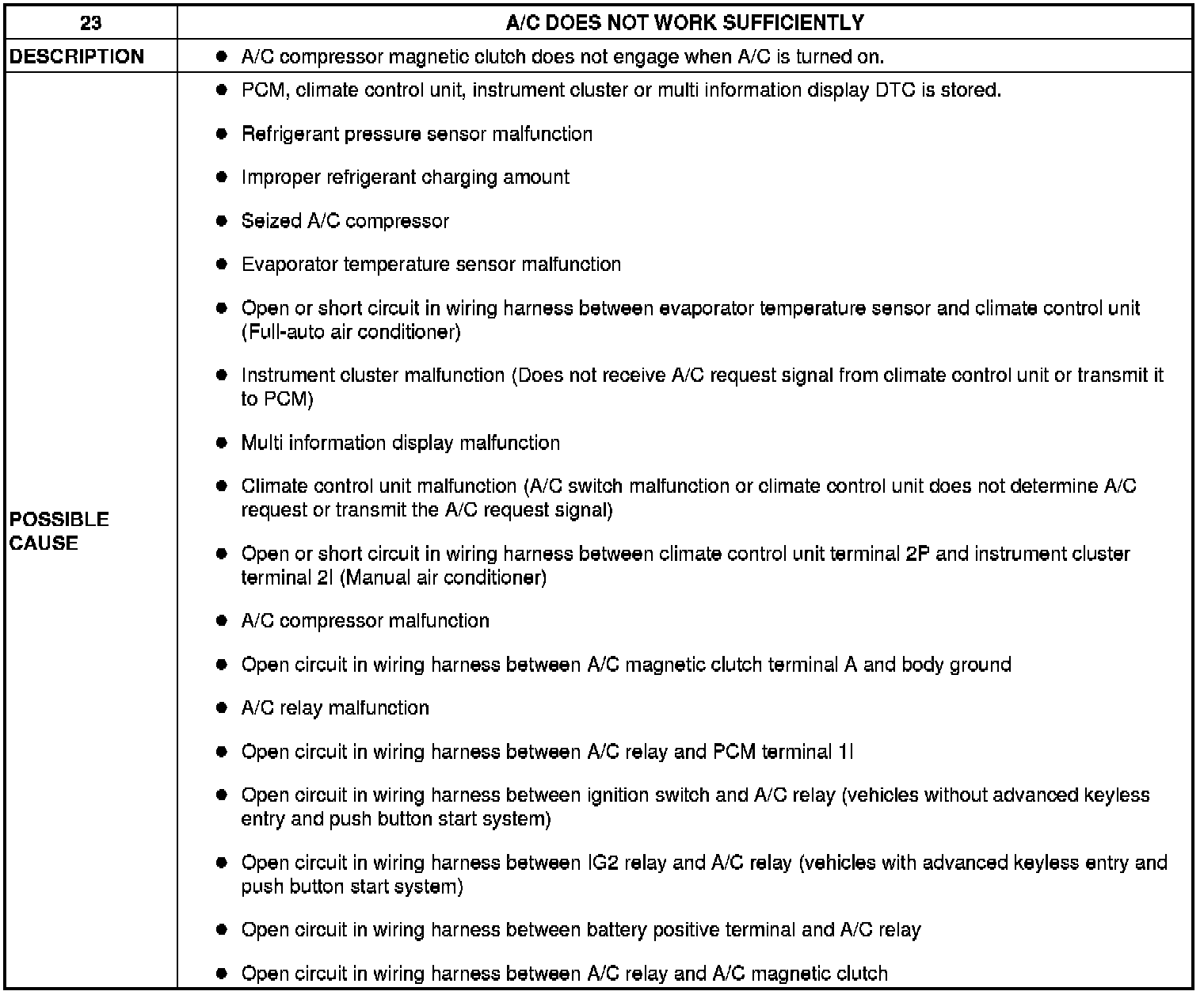

Description/Possible Cause:
Diagnostic procedure

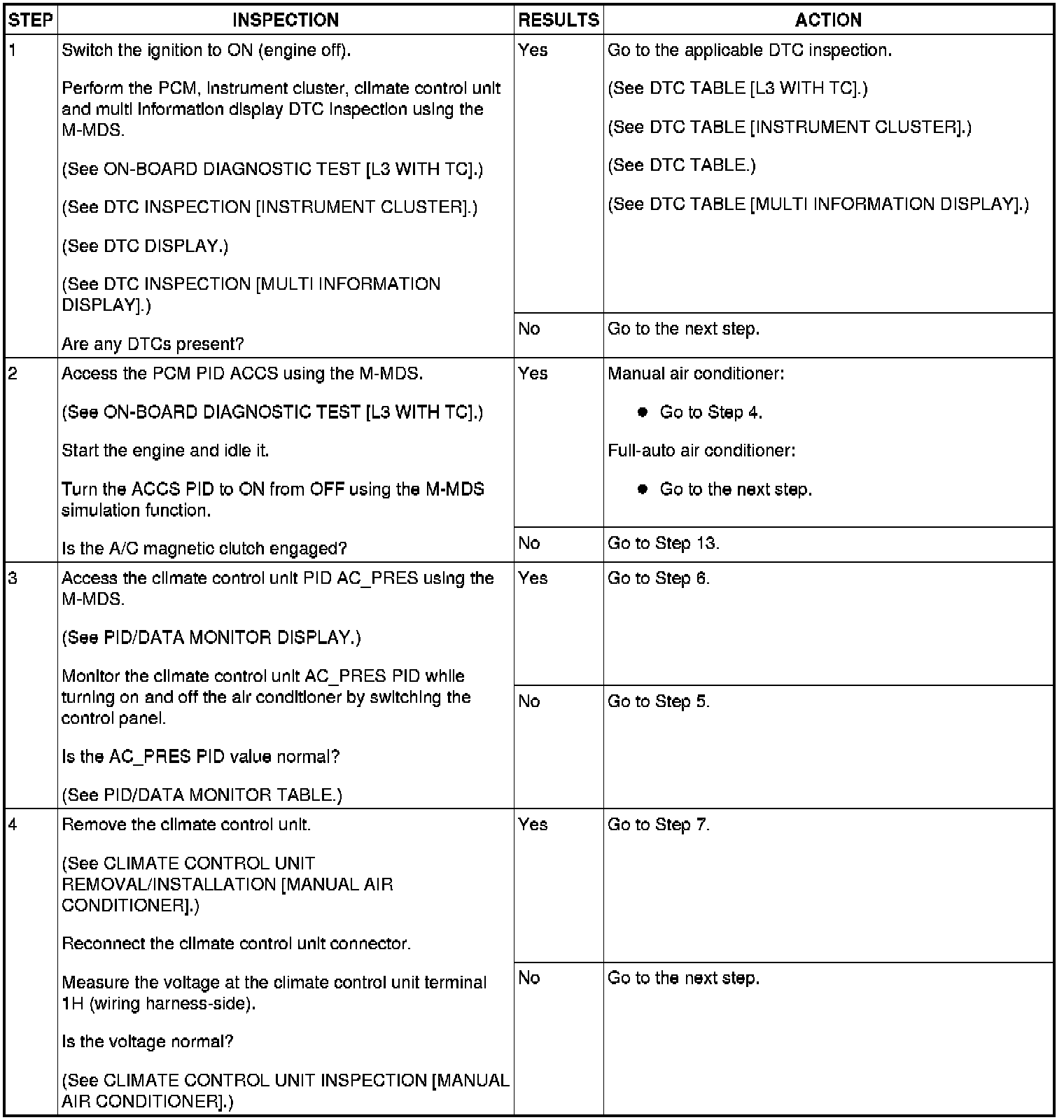

Step 1-Step 4:
Step 5-Step 8:

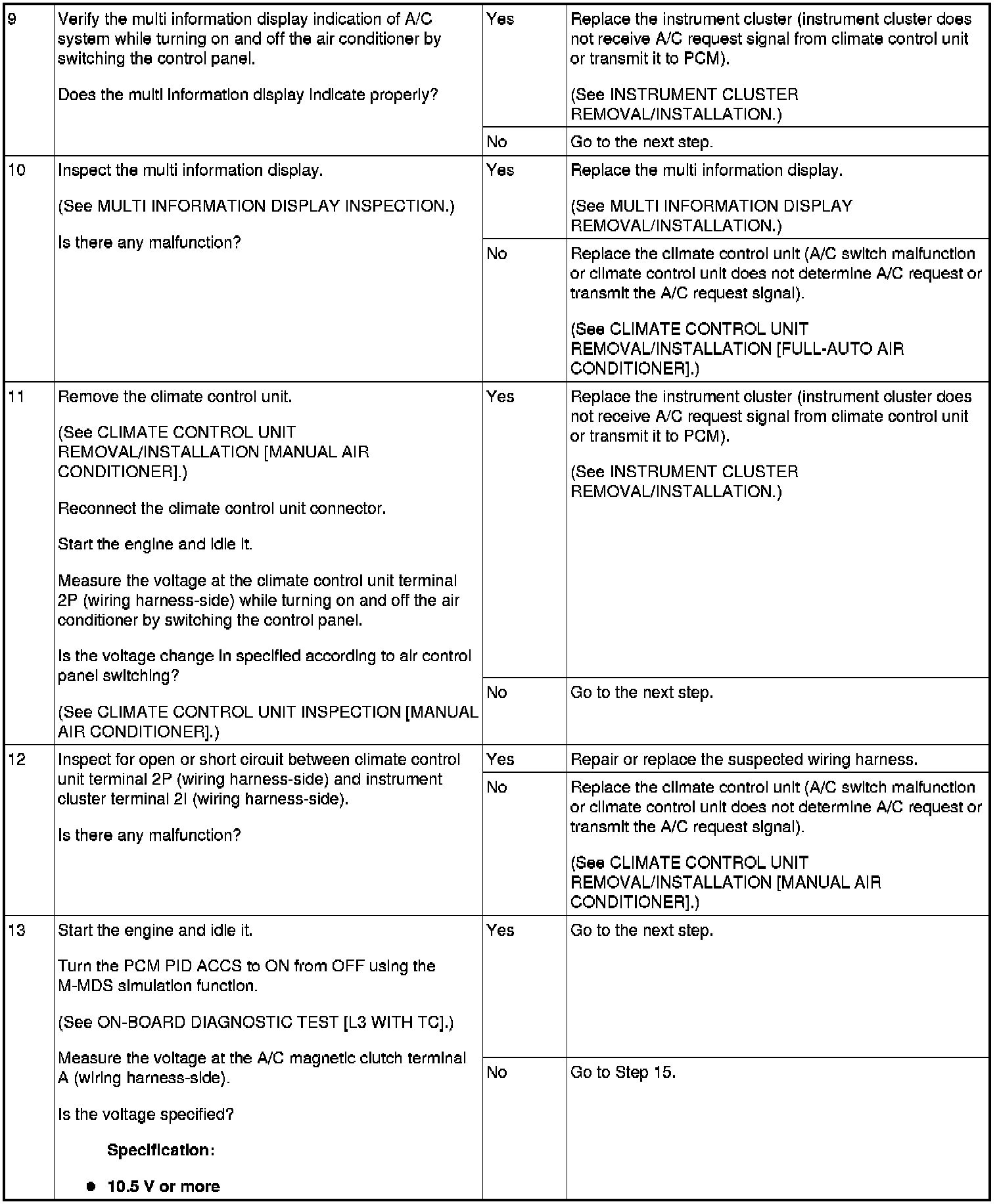

Step 9-Step 13:

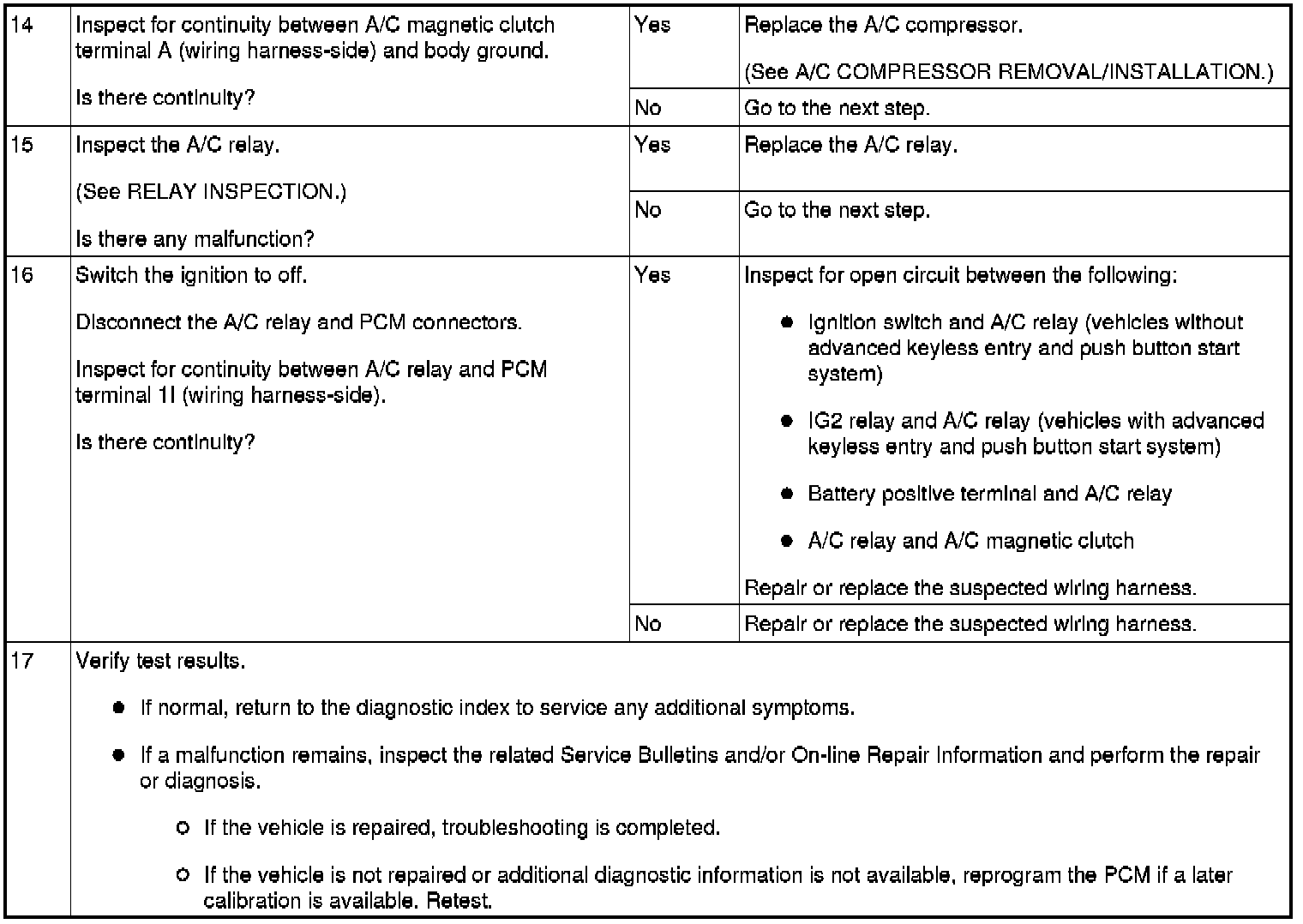

Step 14-Step 17:
