No.12 Lack/Loss Of Power-Acceleration/Cruise




NO.12 LACK/LOSS OF POWER-ACCELERATION/CRUISE [L3 WITH TC]

Description:

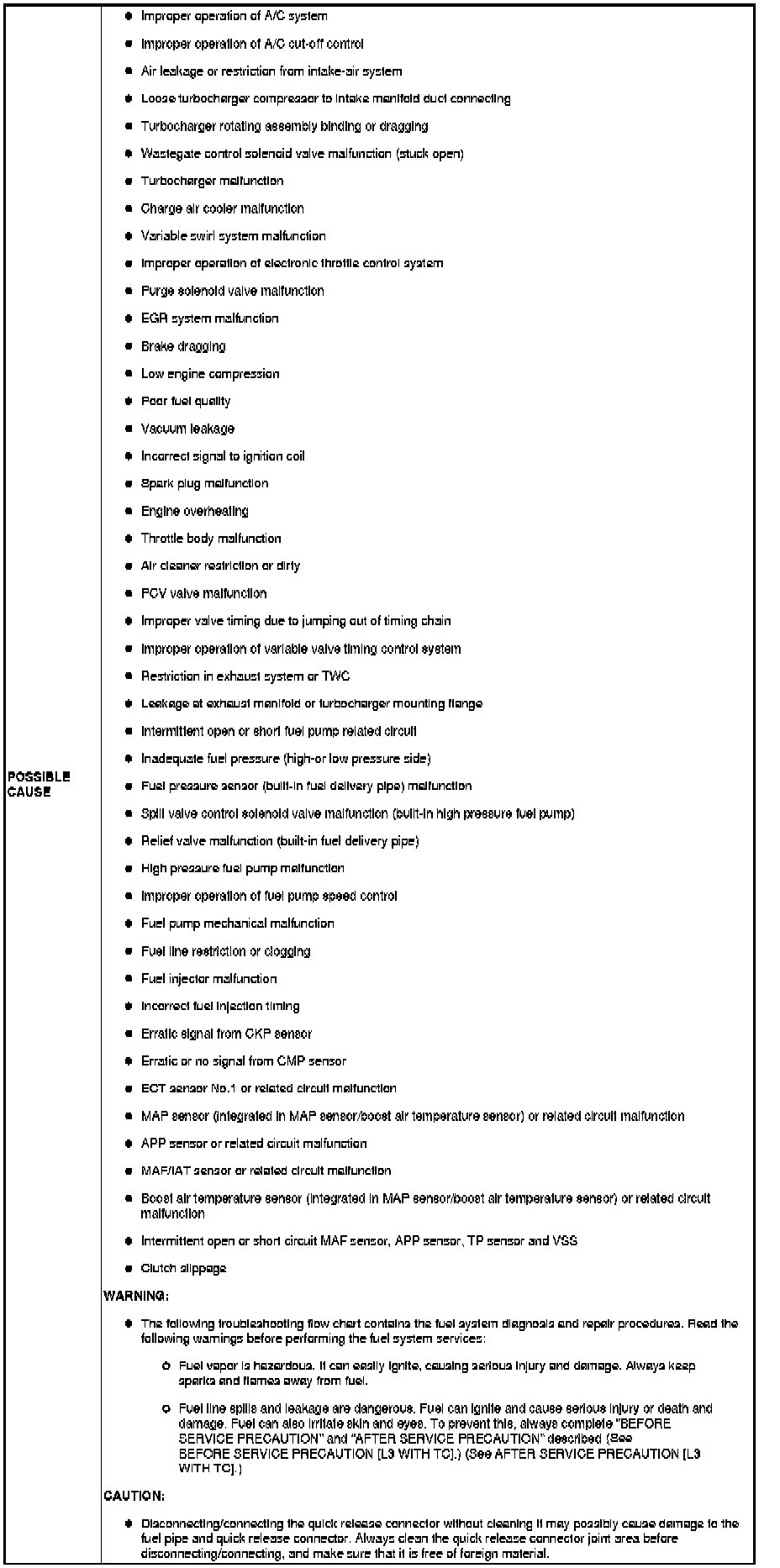

Possible Cause:





Diagnostic procedure

Step 1-Step 6:

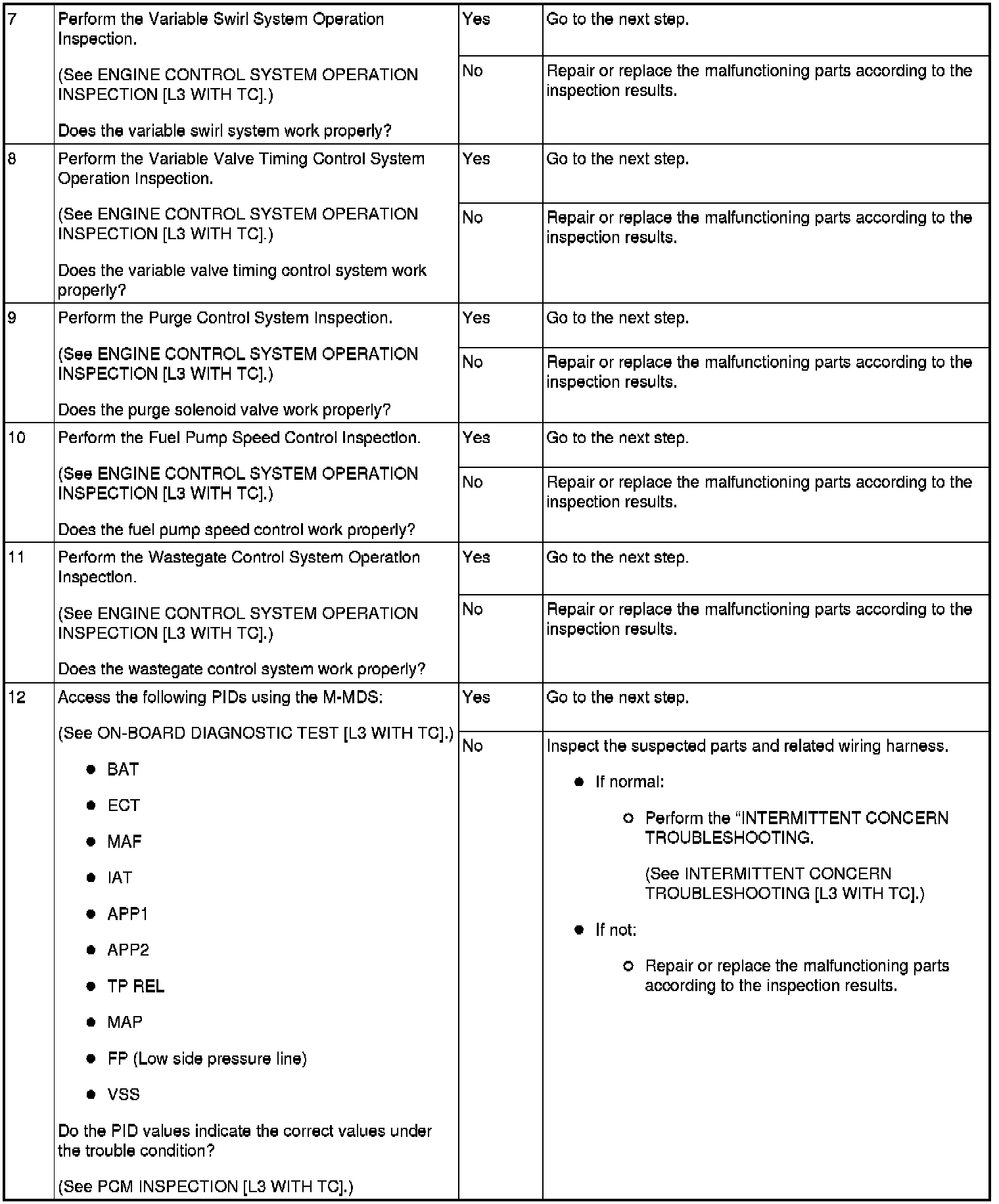

Step 7-Step 12:

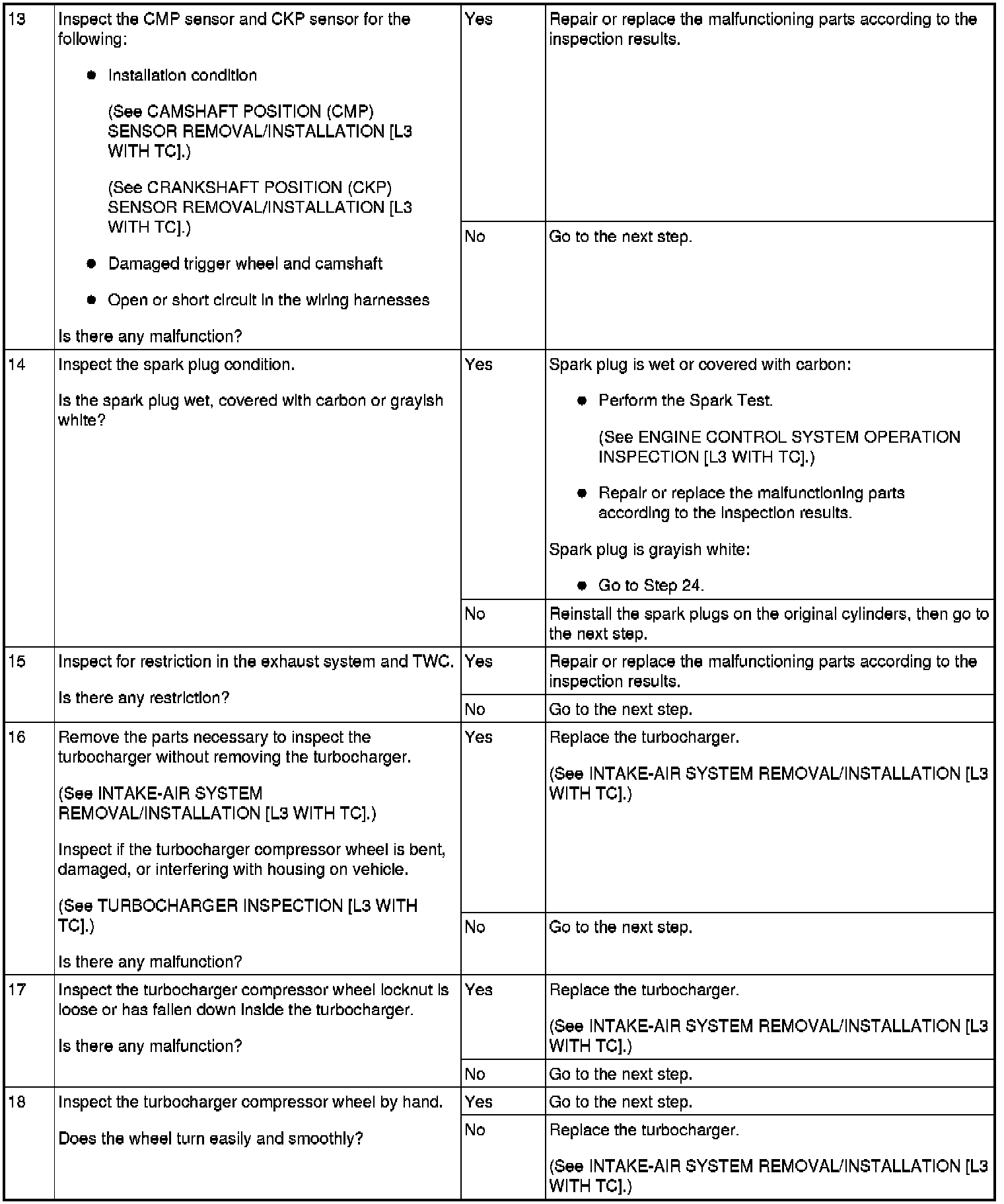

Step 13-Step 18:

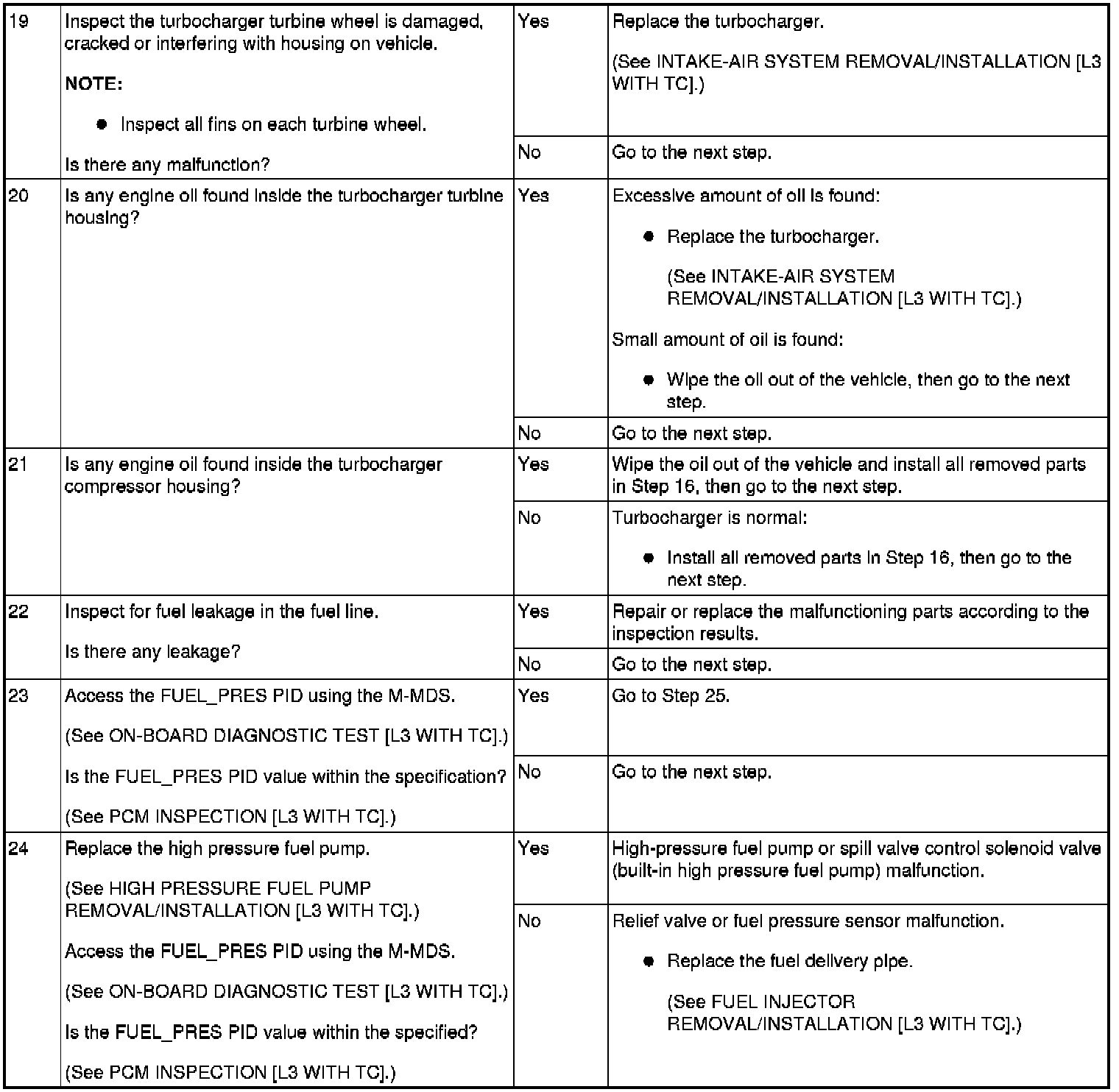

Step 19-Step 24:





Step 25-Step 29:
