Home >> Mazda >> 2010 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 0919-2c (Wiper and Washer (With Auto Light / Wiper Control Module))

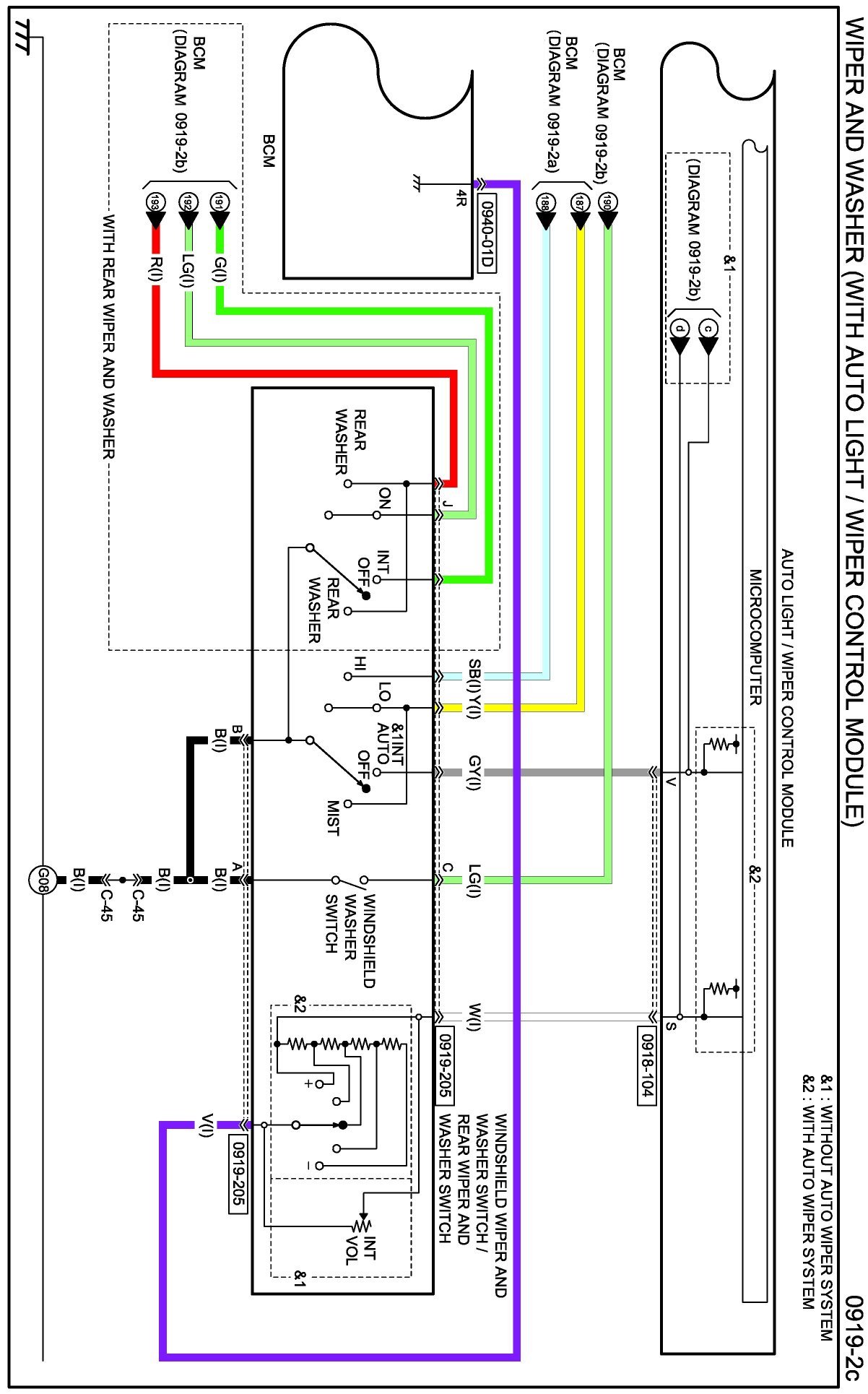

Diagram 0919-2c (Wiper and Washer (With Auto Light / Wiper Control Module))

Diagram 0919-2c:
