Rear Door Latch and Lock Actuator (LH)
Rear Door Latch and Lock Actuator (LH)

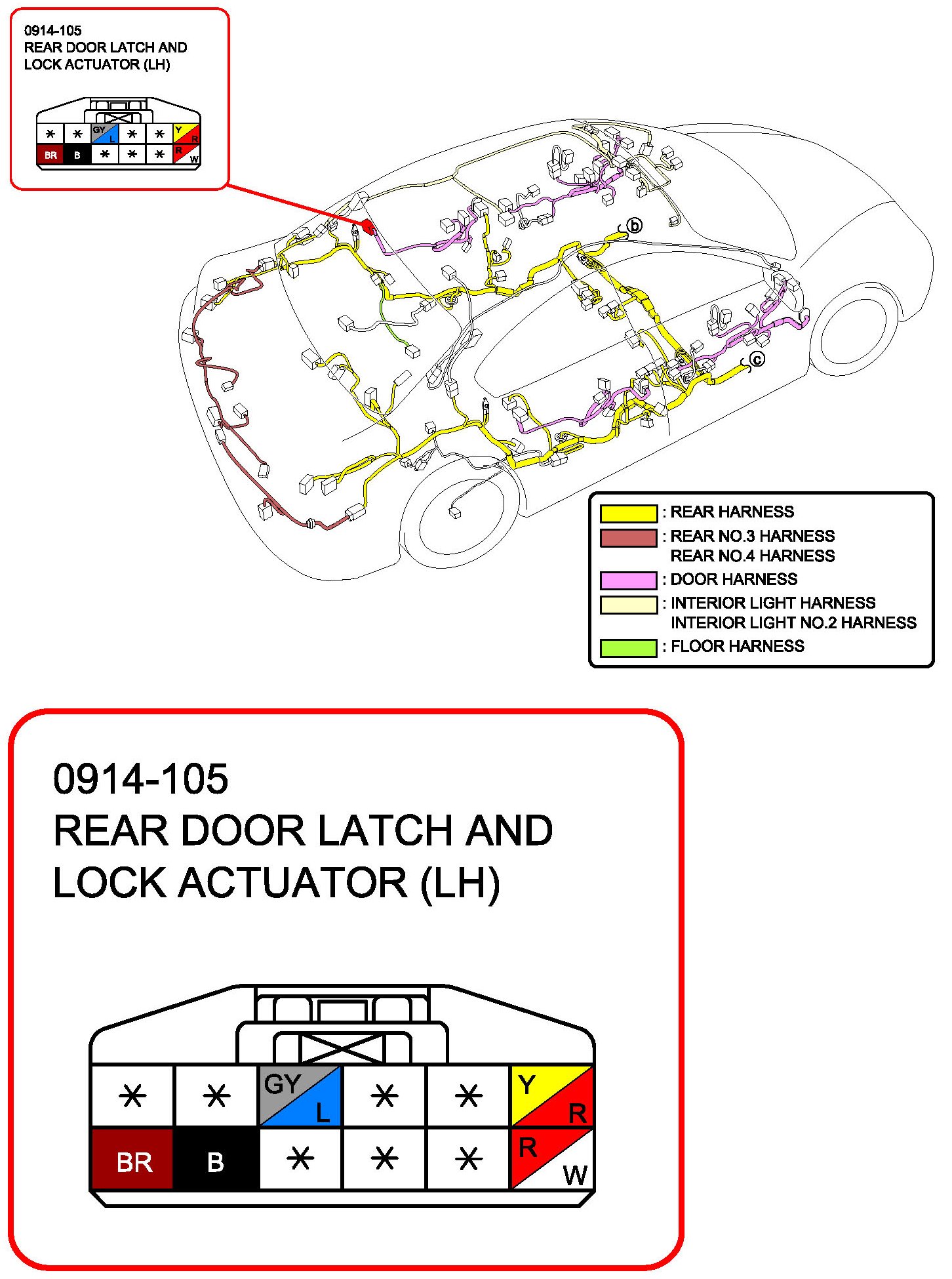

Rear Door Latch And Lock Actuator (LH):

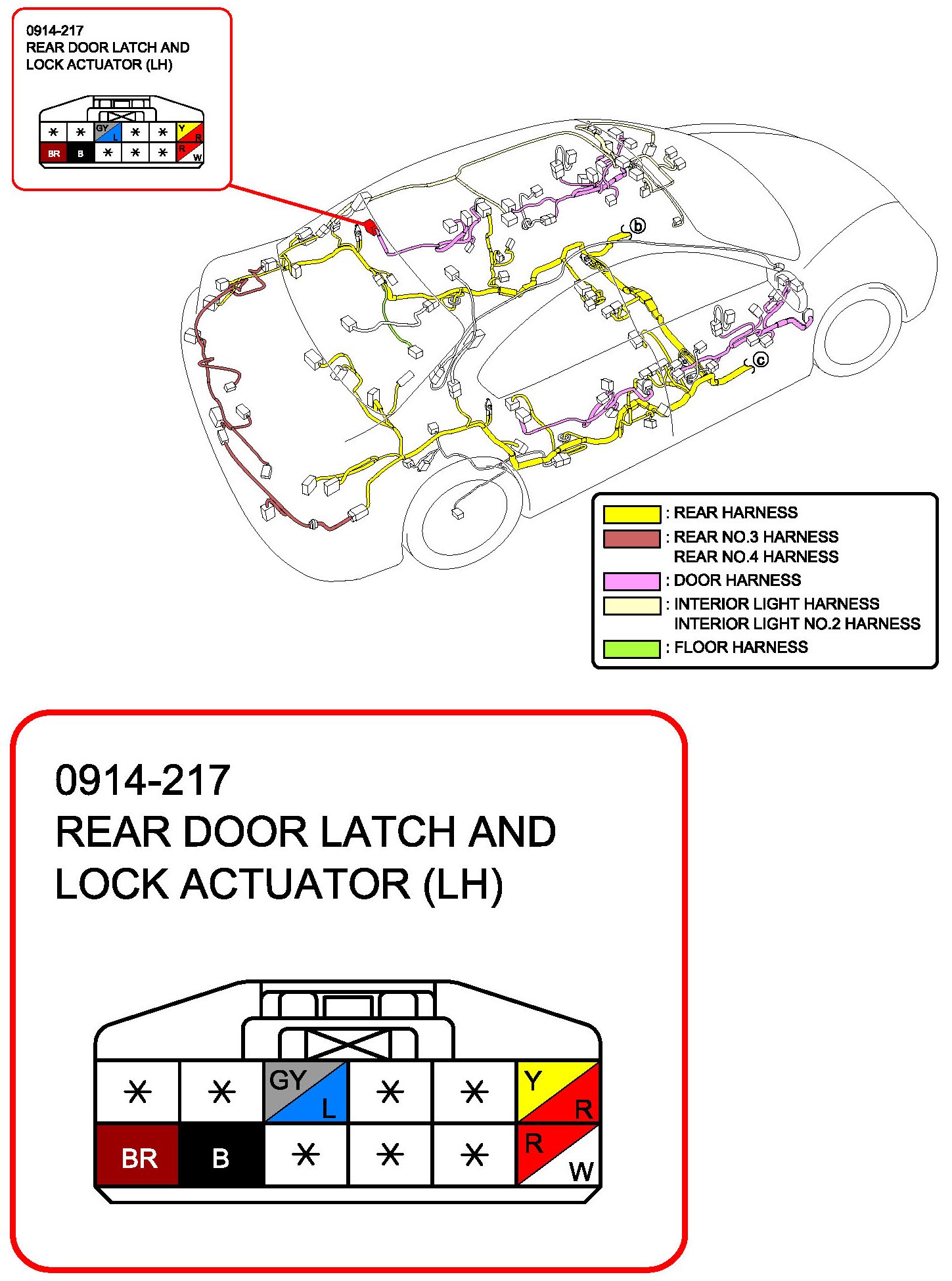

Rear Door Latch And Lock Actuator (LH):
