Home >> Mazda >> 2010 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Components >> Multi Information Display

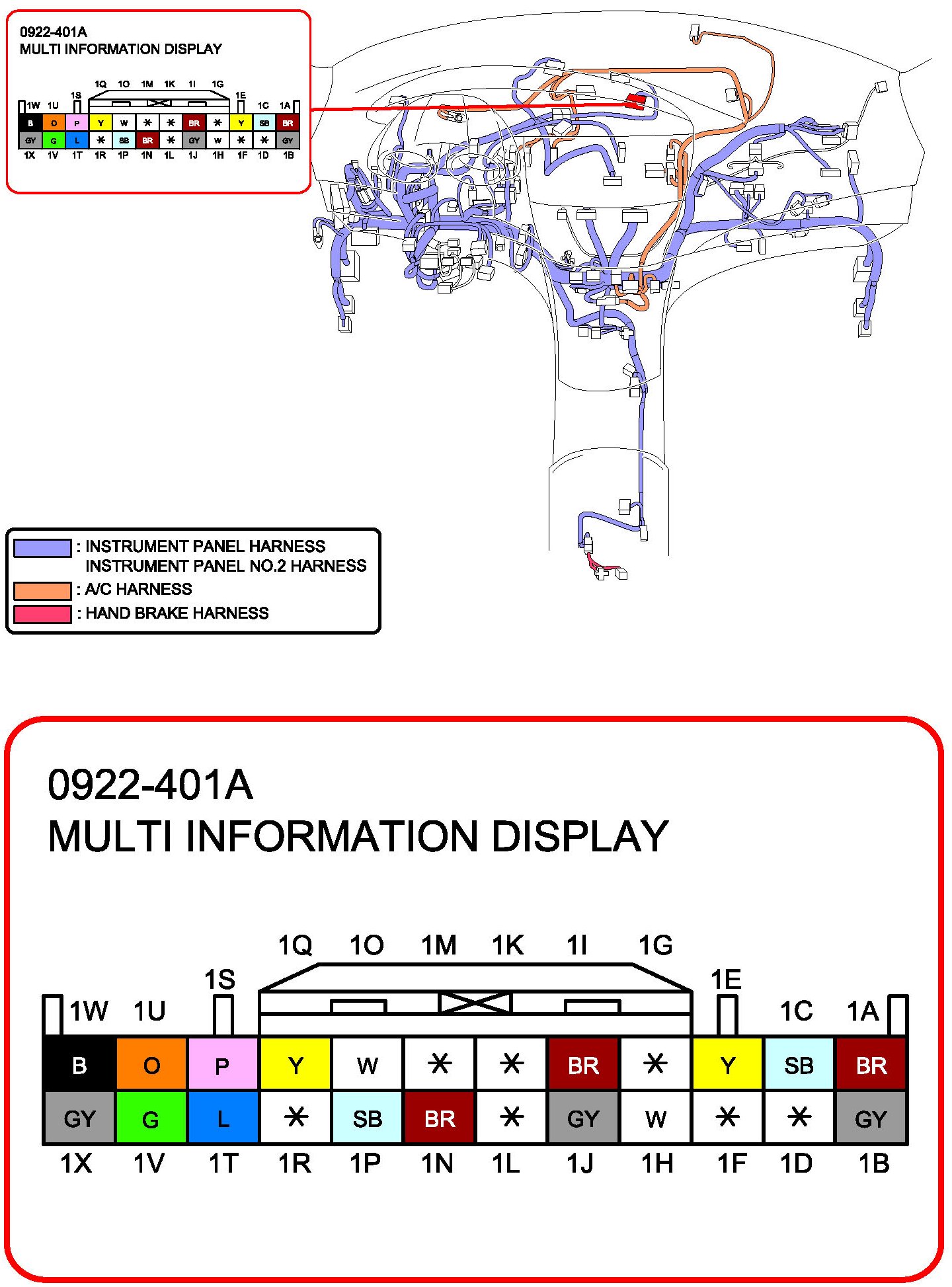

Multi Information Display

Multi Information Display:






Multi Information Display:
