Home >> Mazda >> 2010 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Components >> Audio Unit

Audio Unit

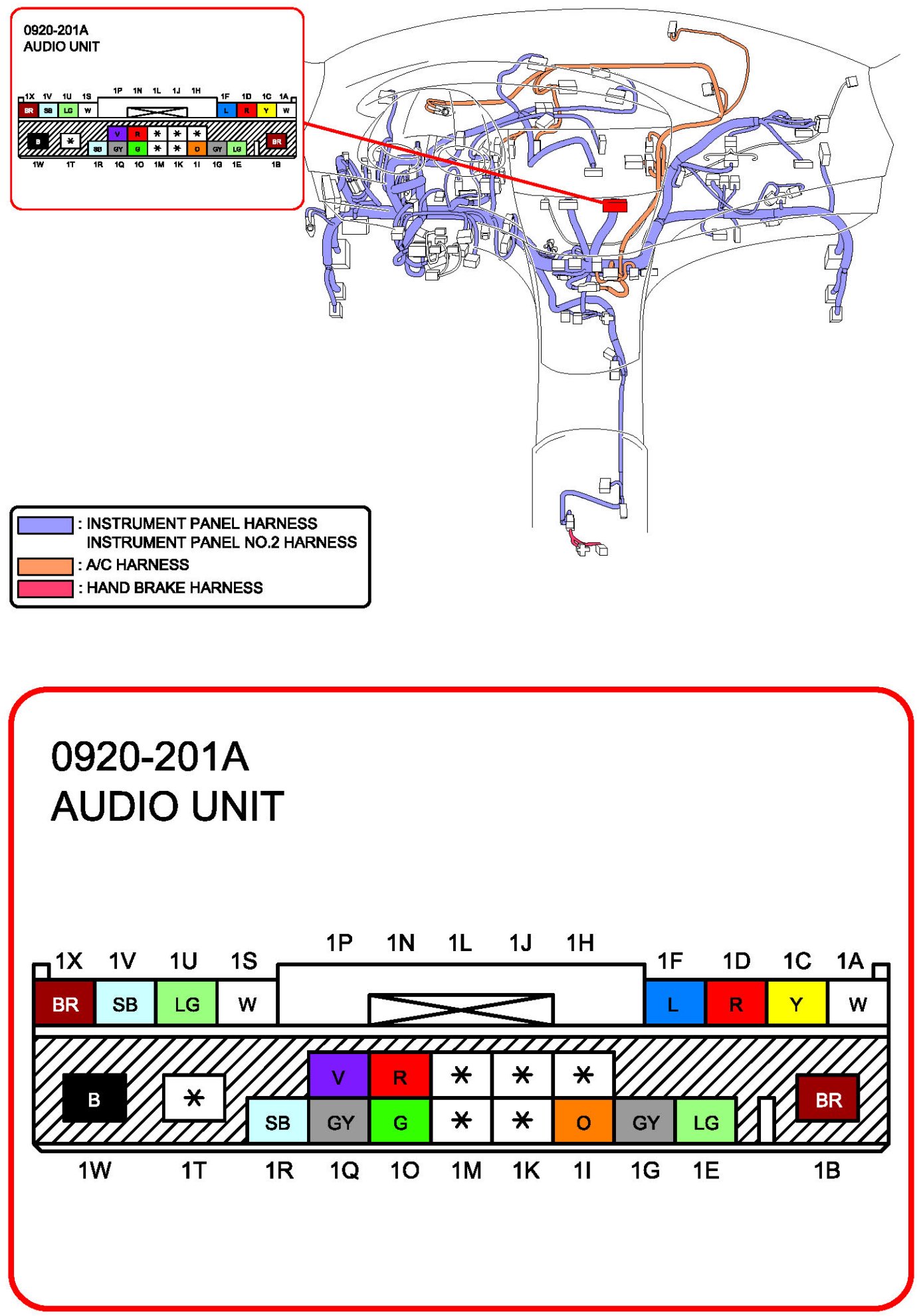

Audio Unit:

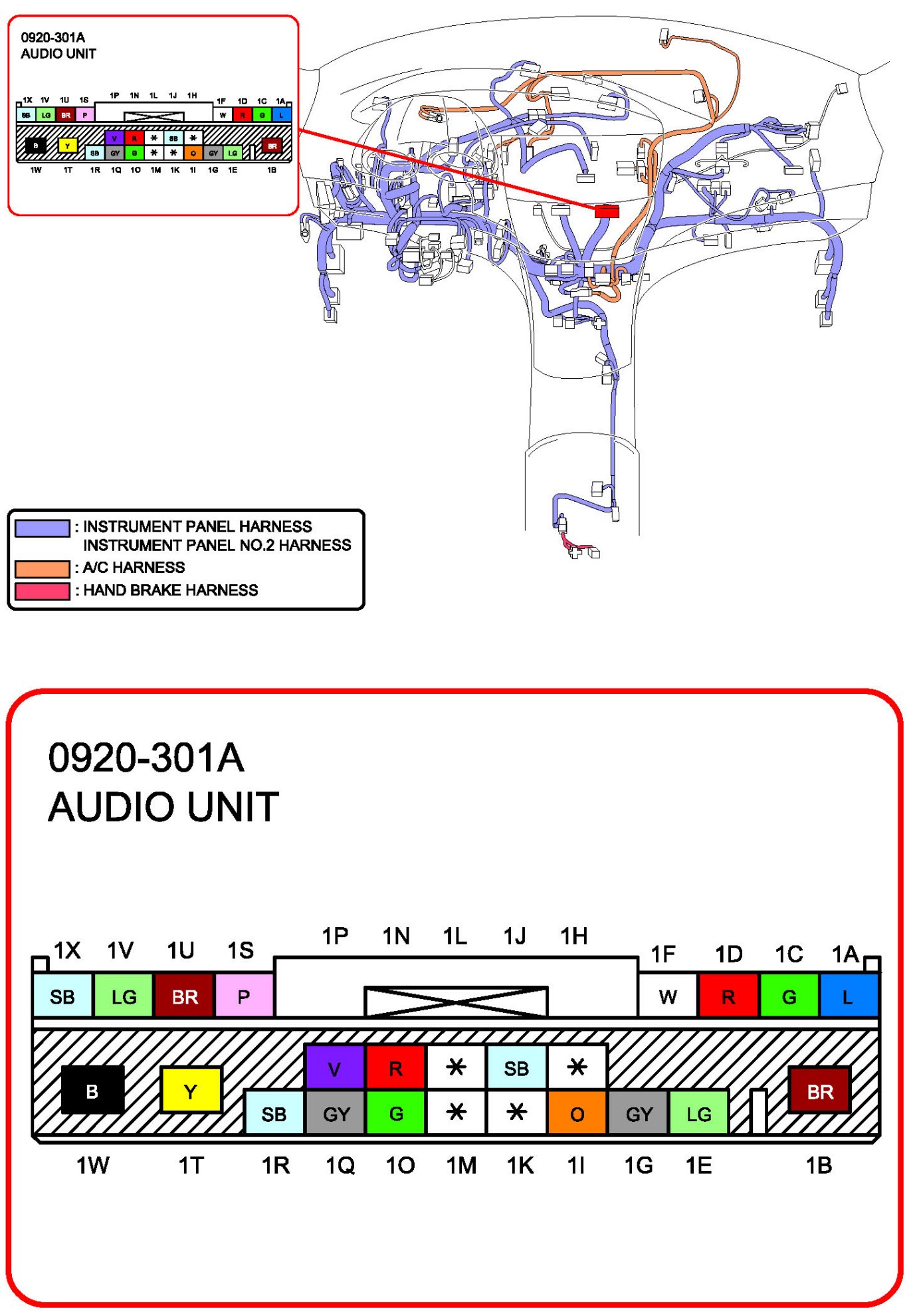

Audio Unit:

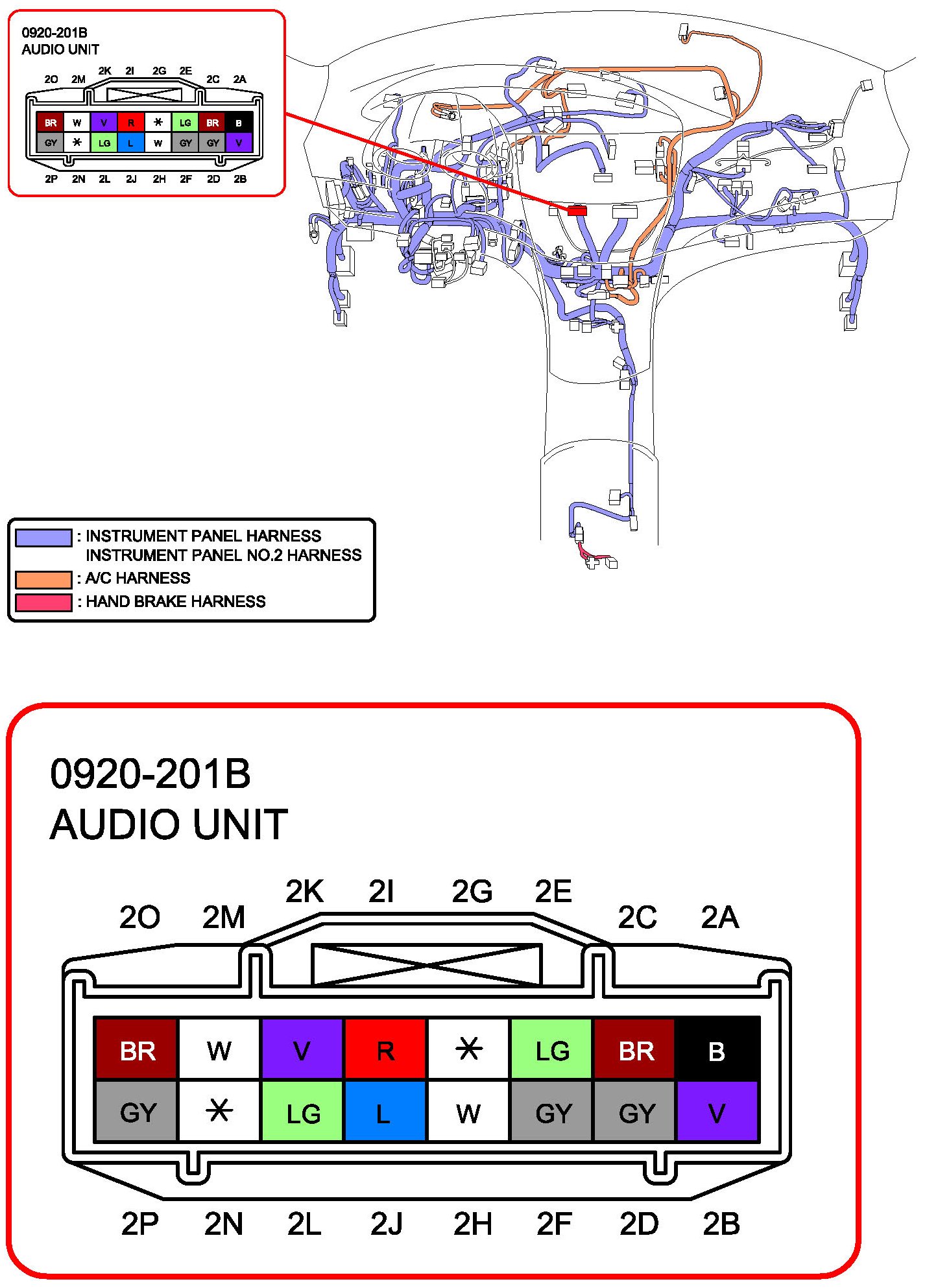

Audio Unit:






Audio Unit:






Audio Unit:






Audio Unit:
