Parking Brake Cable: Service and Repair
PARKING BRAKE CABLE REMOVAL/INSTALLATION
1. Remove the upper panel. Upper Panel Removal/Installation
2. Remove the under cover. Service and Repair
3. Remove the tunnel member (rear). (LF, L5) Service and Repair
4. Remove the tunnel member. (L3 WITH TC) Service and Repair
5. Remove the TWC. (LF, L5) Service and Repair
6. Remove the presilencer. (L3 WITH TC) Service and Repair
7. Remove the insulator (middle No.1) and the insulator (middle No.2). Service and Repair Service and Repair

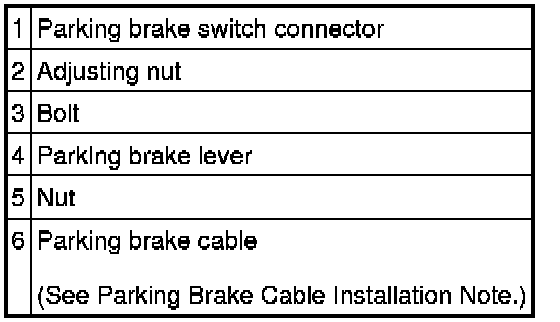

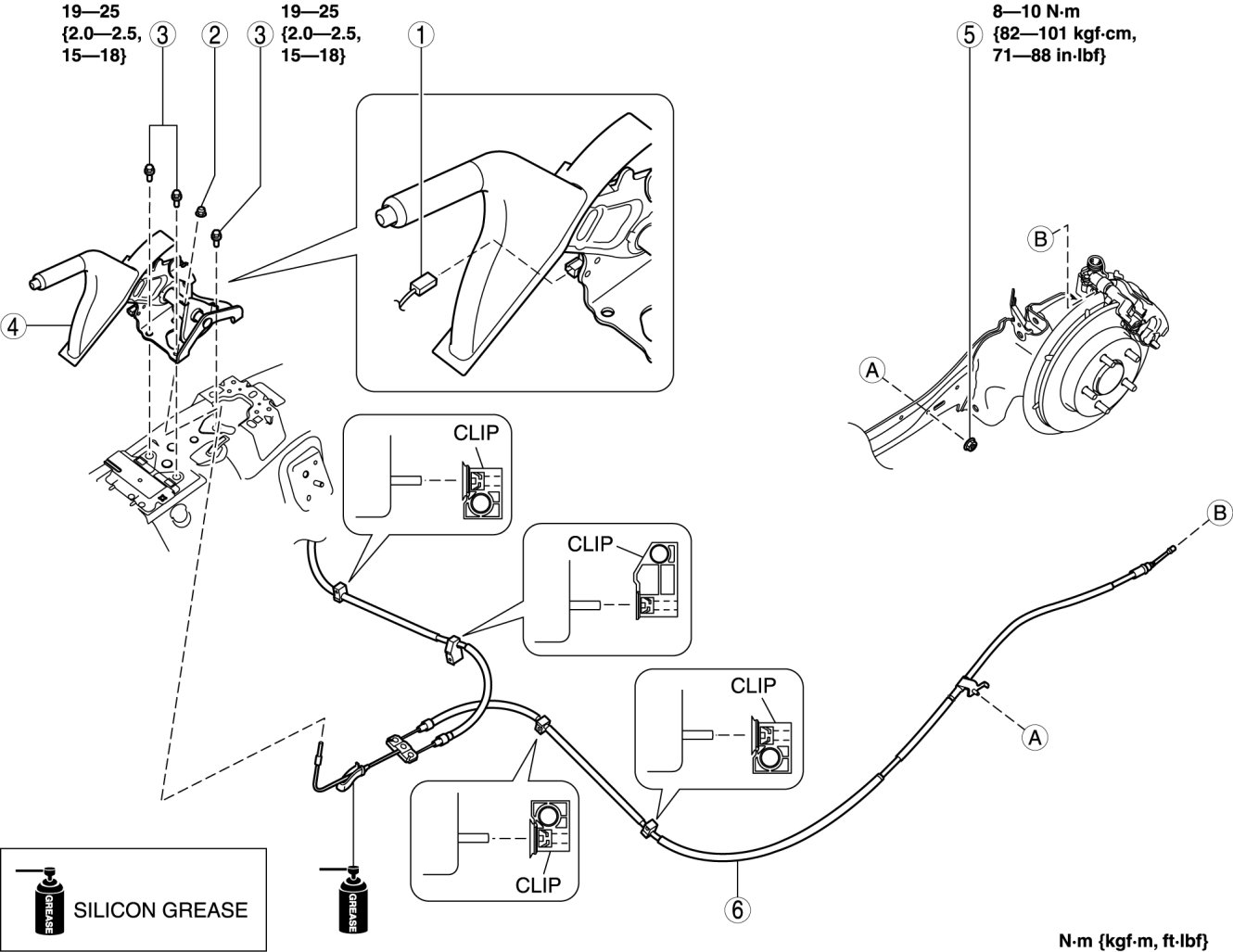

8. Remove in the order indicated in the table.
9. Install in the reverse order of removal.
10. After installation, inspect the parking brake stroke and adjust if necessary. Testing and Inspection
Parking Brake Cable Installation Note
1. Pass the parking brake cable inside the rear ABS wheel-speed sensor wiring harness as shown in the figure.
2. Install the rear parking brake cable.

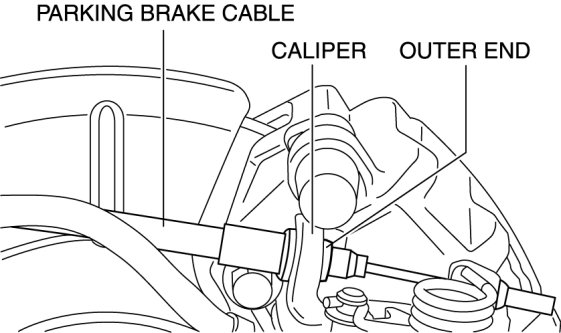

3. Verify that the end of the parking brake cable outer end is out of the caliper as shown in the figure.
