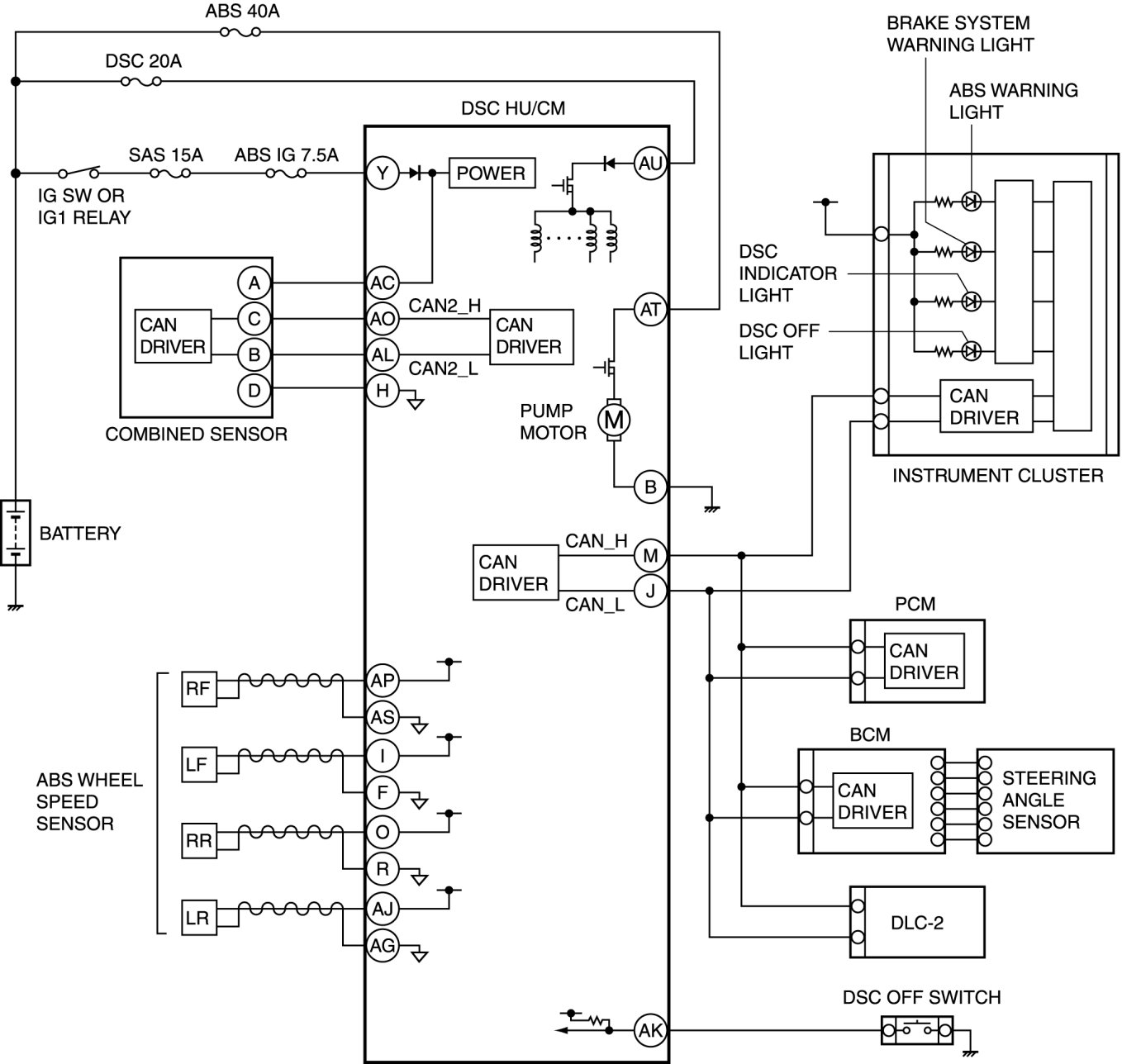

System Wiring Diagram - Dynamic Stability Control (DSC)




SYSTEM WIRING DIAGRAM [DYNAMIC STABILITY CONTROL (DSC)]
