Overhaul

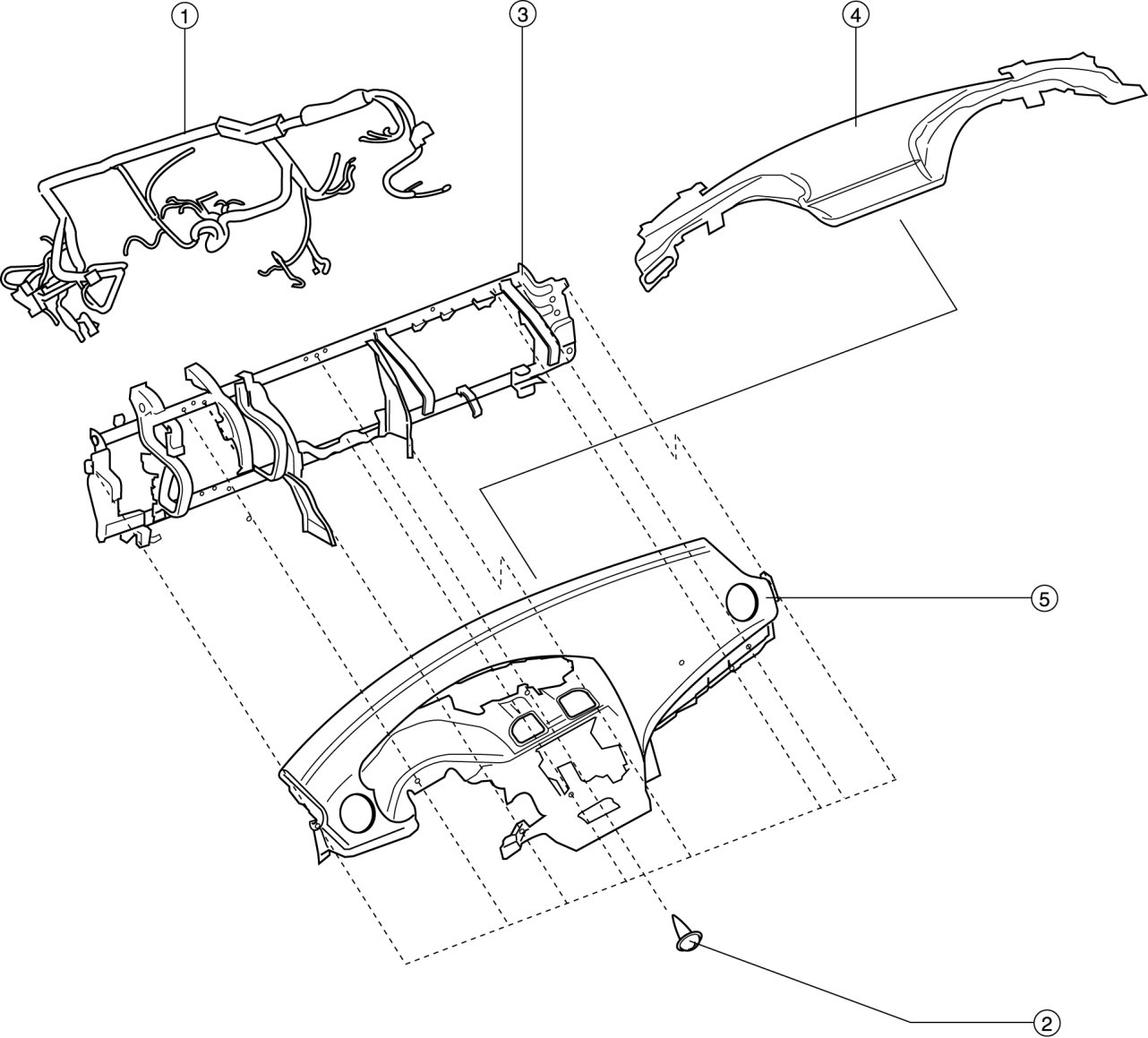

DASHBOARD DISASSEMBLY/ASSEMBLY

1. Remove the ventilator grilles. (See Service and Repair)

2. Remove the Passenger-side air bag module. (See Passenger-Side Air Bag Module Removal/Installation)

3. Disassemble in the order indicated in the table.

4. Assemble in the reverse order of disassembly.
