Front Door Hinge: Service and Repair

FRONT DOOR HINGE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front bumper Front Bumper Removal/Installation

b. Front combination light Service and Repair

c. Front fender molding Cowl Grille Removal/Installation

d. Side step molding

e. Front fender panel Service and Repair

f. Front door Front Door Removal/Installation

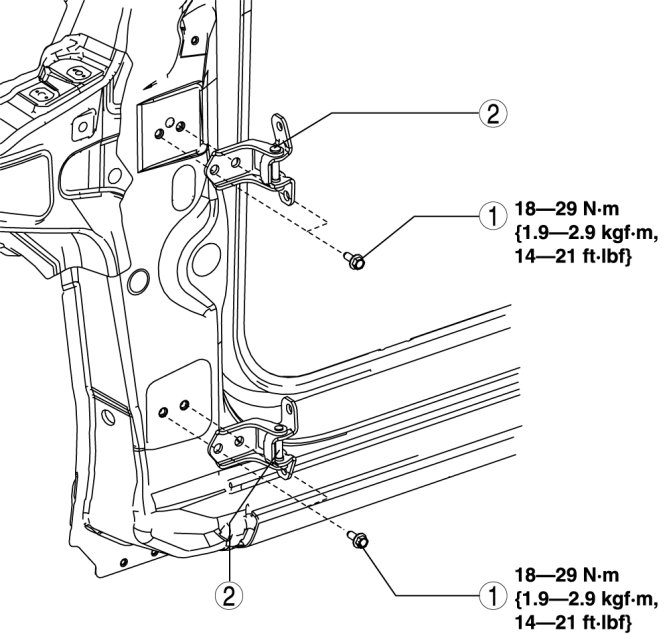

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
