No.8 Audiopilot(R)2 Function Is Inoperative - Entire Audio System



(R)
NO.8 AudioPilot(R)2 FUNCTION IS INOPERATIVE [ENTIRE AUDIO SYSTEM]

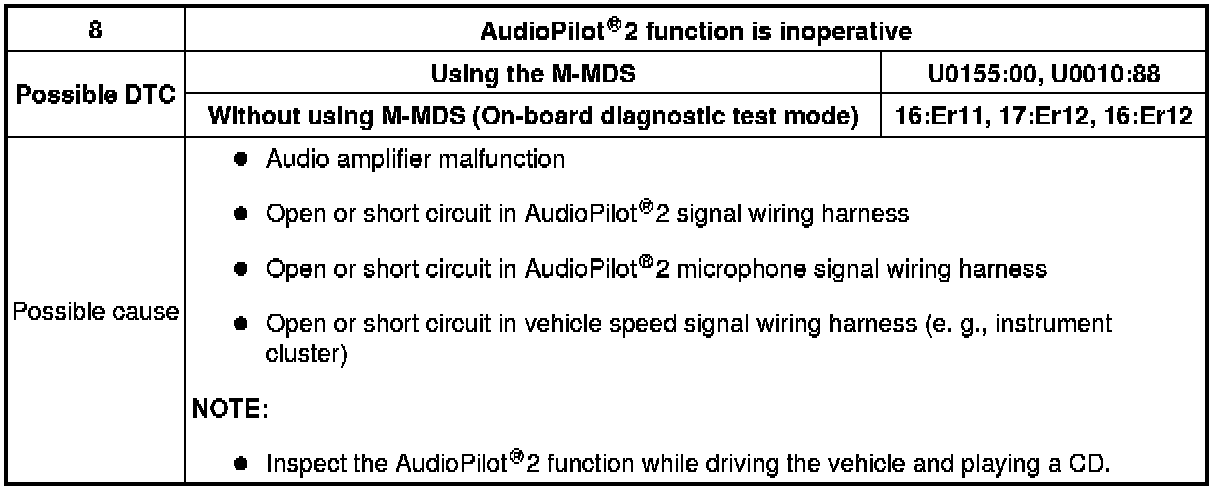

Possible Cause:





Diagnostic procedure

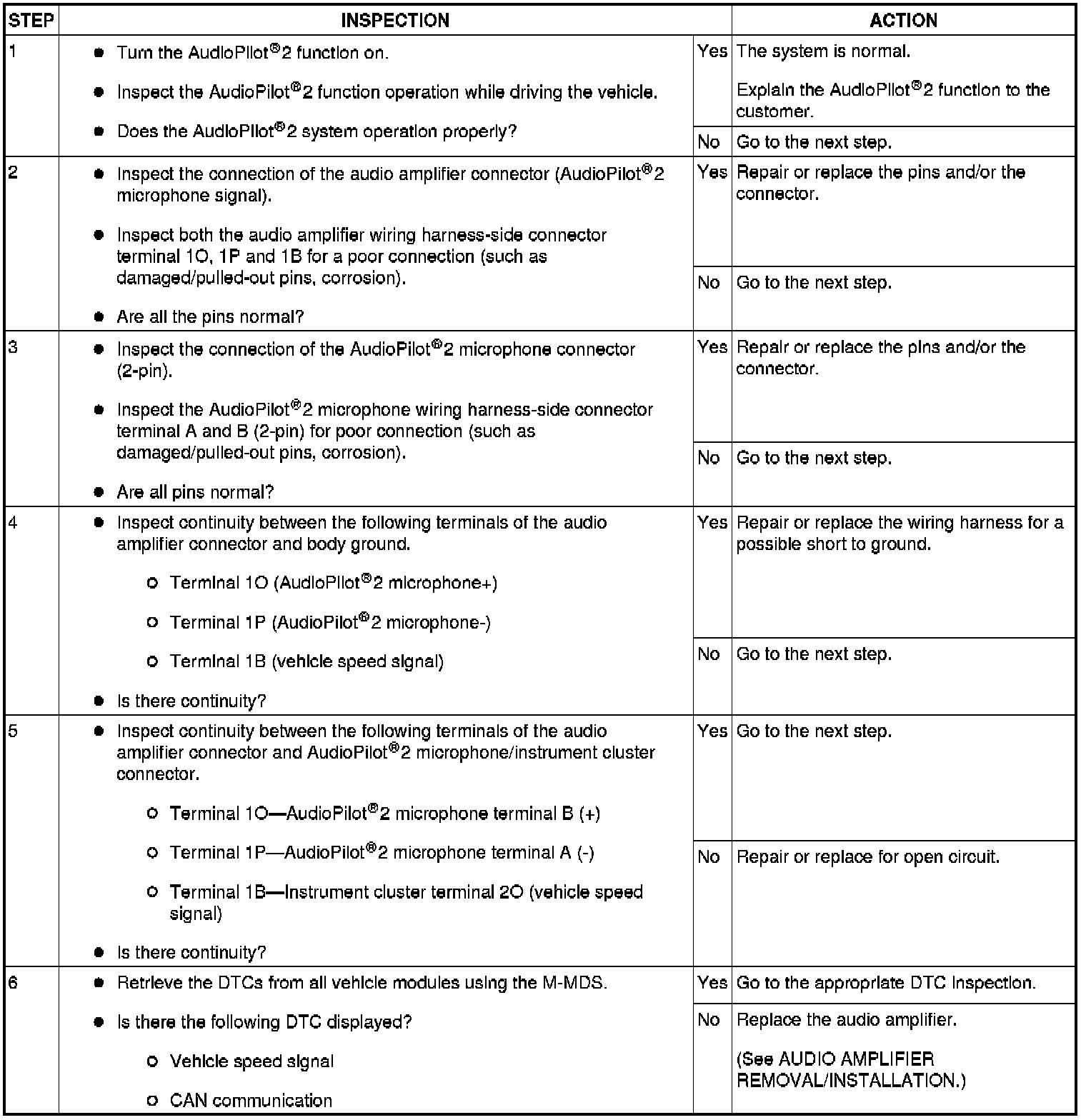

Step 1-Step 6:
