NO.10 LCD DOES NOT DISPLAY AT ALL [ENTIRE AUDIO SYSTEM]
Possible Cause:

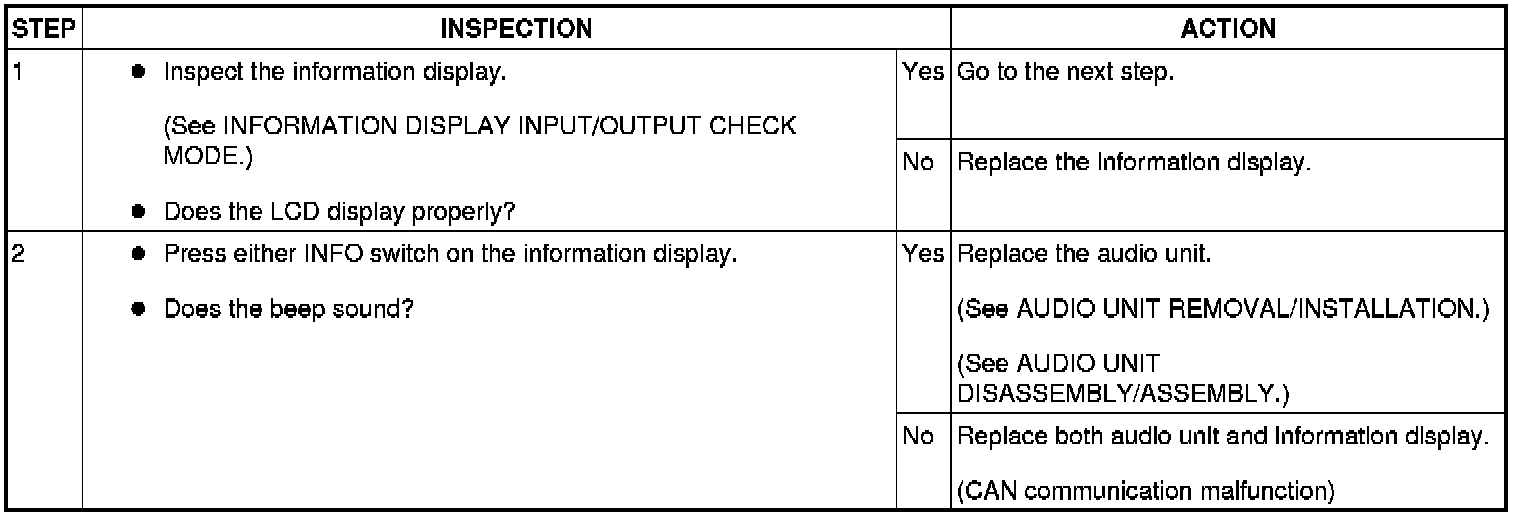

Diagnostic procedure
Step 1-Step 2:
