Tweeter Inspection

TWEETER INSPECTION

1. Disconnect the negative battery cable.

2. Remove the inner garnish. Inner Garnish Removal/Installation

3. Remove the tweeter. Tweeter Removal/Installation

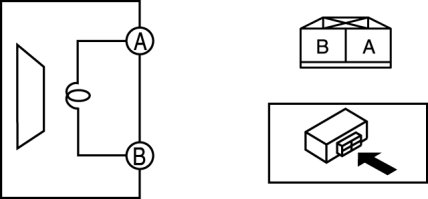

4. Verify the resistance between tweeter terminals.






- If not within the specification, replace the tweeter.






Resistance
- Without Bose(R): 4.0 ohms
- With Bose(R): 3.4 ohms
