Front Center Speaker Inspection

FRONT CENTER SPEAKER INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Upper column cover Service and Repair

b. Instrument cluster Removal and Replacement

c. Center panel Center Panel Removal/Installation

d. Center cover Center Cover Removal/Installation

e. Dashboard upper panel Dashboard Upper Panel Removal/Installation

f. Front center speaker Front Center Speaker Removal/Installation

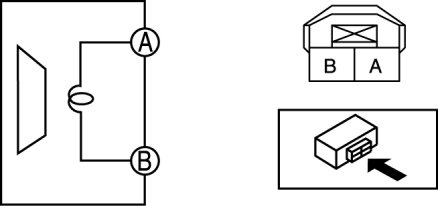

3. Verify the resistance between the front center speaker terminals.






- If not within the specification, replace the front center speaker.






Resistance
- 3.6 ohms
