Bass-Box Inspection

BASS-BOX INSPECTION

1. Disconnect the negative battery cable.

2. Disconnect the connector. Bass-Box Removal/Installation

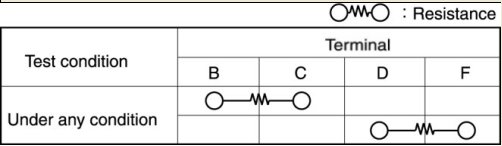

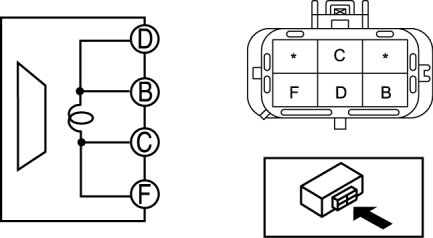

3. Verify the resistance between bass-box terminals.






- If not within the specification, replace the bass-box.






Resistance
- 1.0 ohms
