Component Tests and General Diagnostics

DIAGNOSTIC ASSIST FUNCTION [Bluetooth SYSTEM (HANDS-FREE TELEPHONE (HF/TEL) SYSTEM)]

Software Version Verification

1. Launch the on-board diagnostic test mode. DTC Inspection - Bluetooth System (Hands-Free Telephone (HF/TEL) System)

2. Press the SEEK/TRACK switch to display the oldest error code of the error codes that have been recorded.
NOTE:
- If an error code has not been recorded, No Err is displayed.

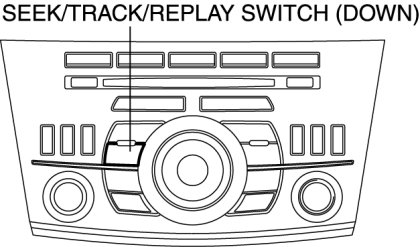

3. Press the SEEK/TRACK/REPLAY switch (down).

4. Verify the software version.






5. To stop the on-board diagnostic test mode, ignition is switched to off.

Connection Condition Verification

1. Launch the on-board diagnostic test mode. DTC Inspection - Bluetooth System (Hands-Free Telephone (HF/TEL) System)

2. Press SEEK/TRACK/REPLAY switch (down) to display the software version.






3. Press the SEEK/TRACK/REPLAY switch (down).

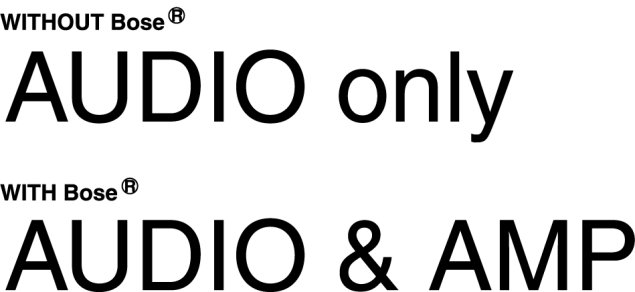

4. Verify the connected unit.






5. To stop the on-board diagnostic test mode, ignition is switched to off.

Password Reset

1. Switch the ignition to ACC or ON.

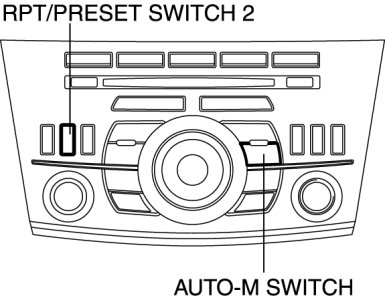

2. Press the RPT/PRESET switch 2 while pressing the AUTO-M switch until the password reset verification beep sound is heard.

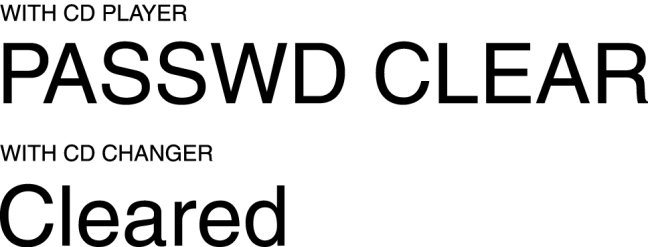

3. Verify that "PASSWD CLEAR" (with CD player) or "Cleared" (with CD changer) is displayed in the information display.






4. To stop the diagnostic assist function, ignition is switched to off.
