DTC U3003:16 [INSTRUMENT CLUSTER]

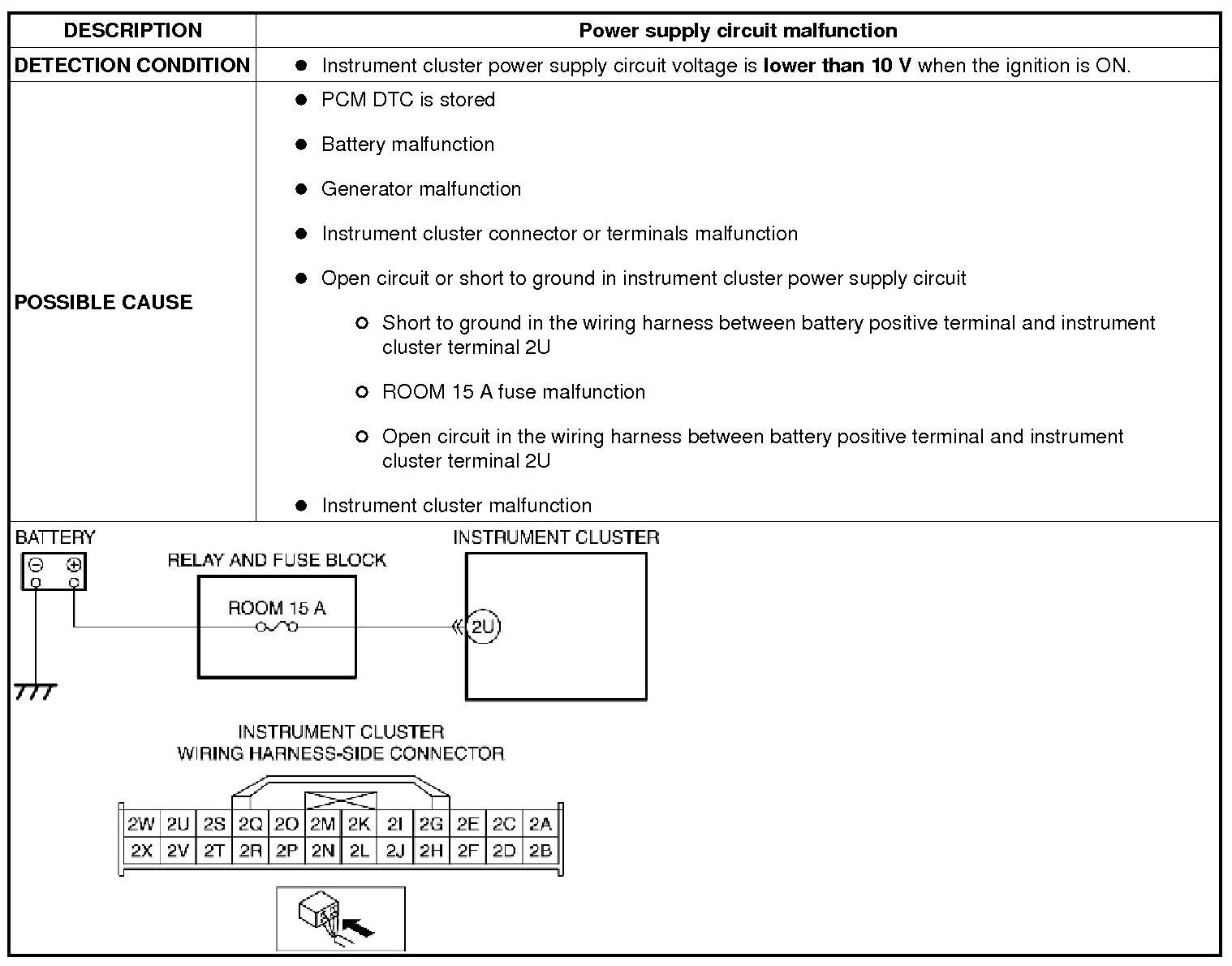

Detection Condition/Possible Cause:
Diagnostic Procedure

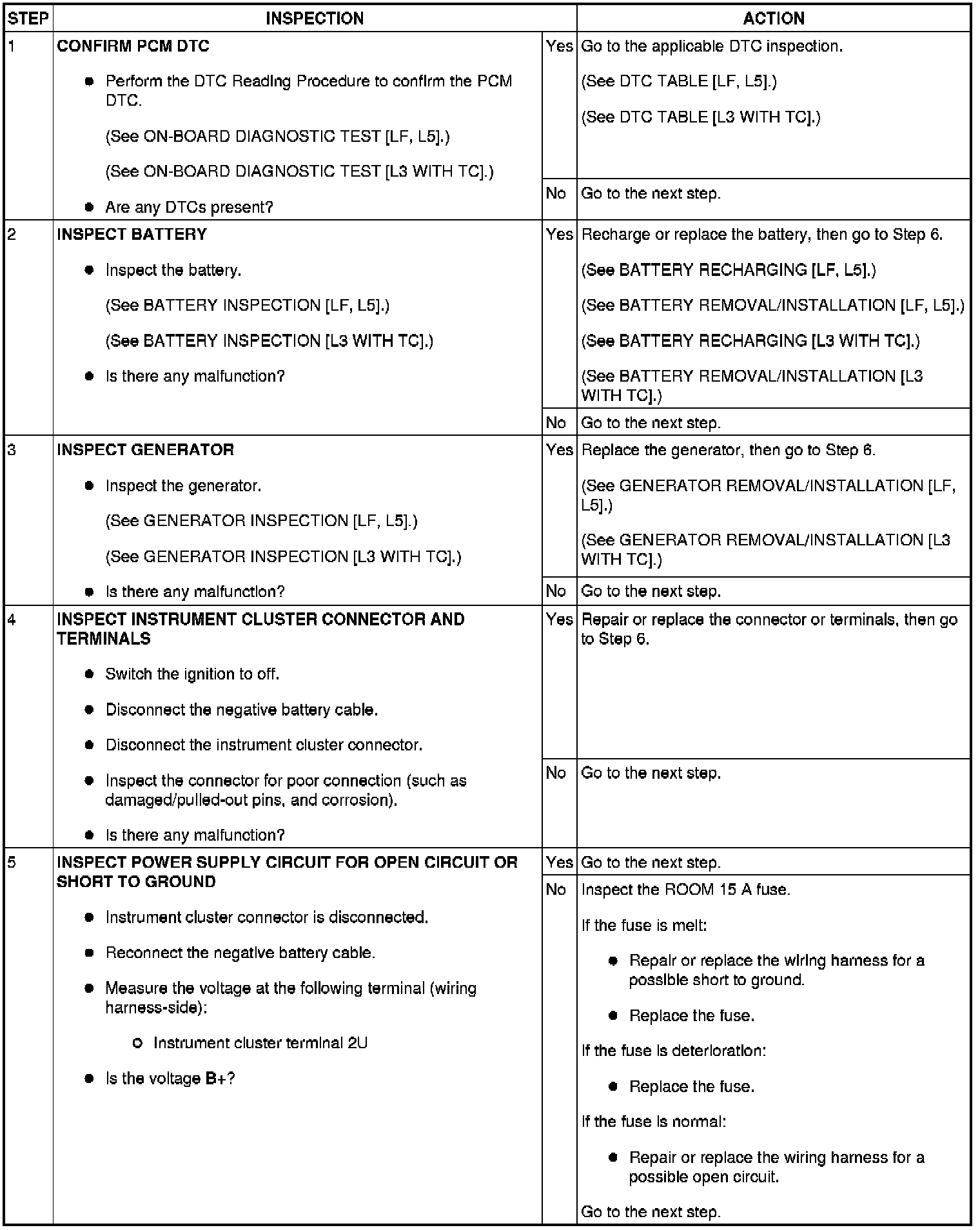

Step 1-Step 5:

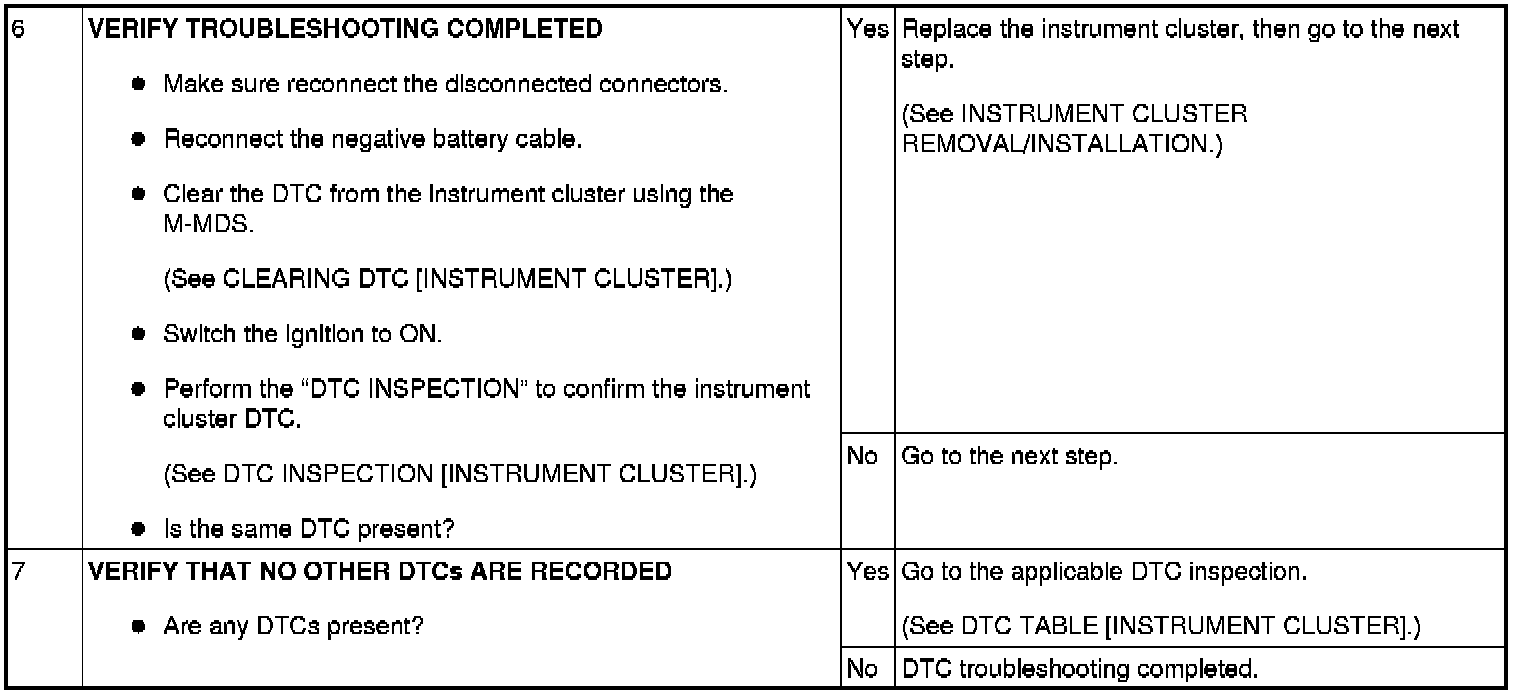

Step 6-Step 7:
