P2097
P2097
DTC P2097:00 [L3 WITH TC]
Detection Condition:

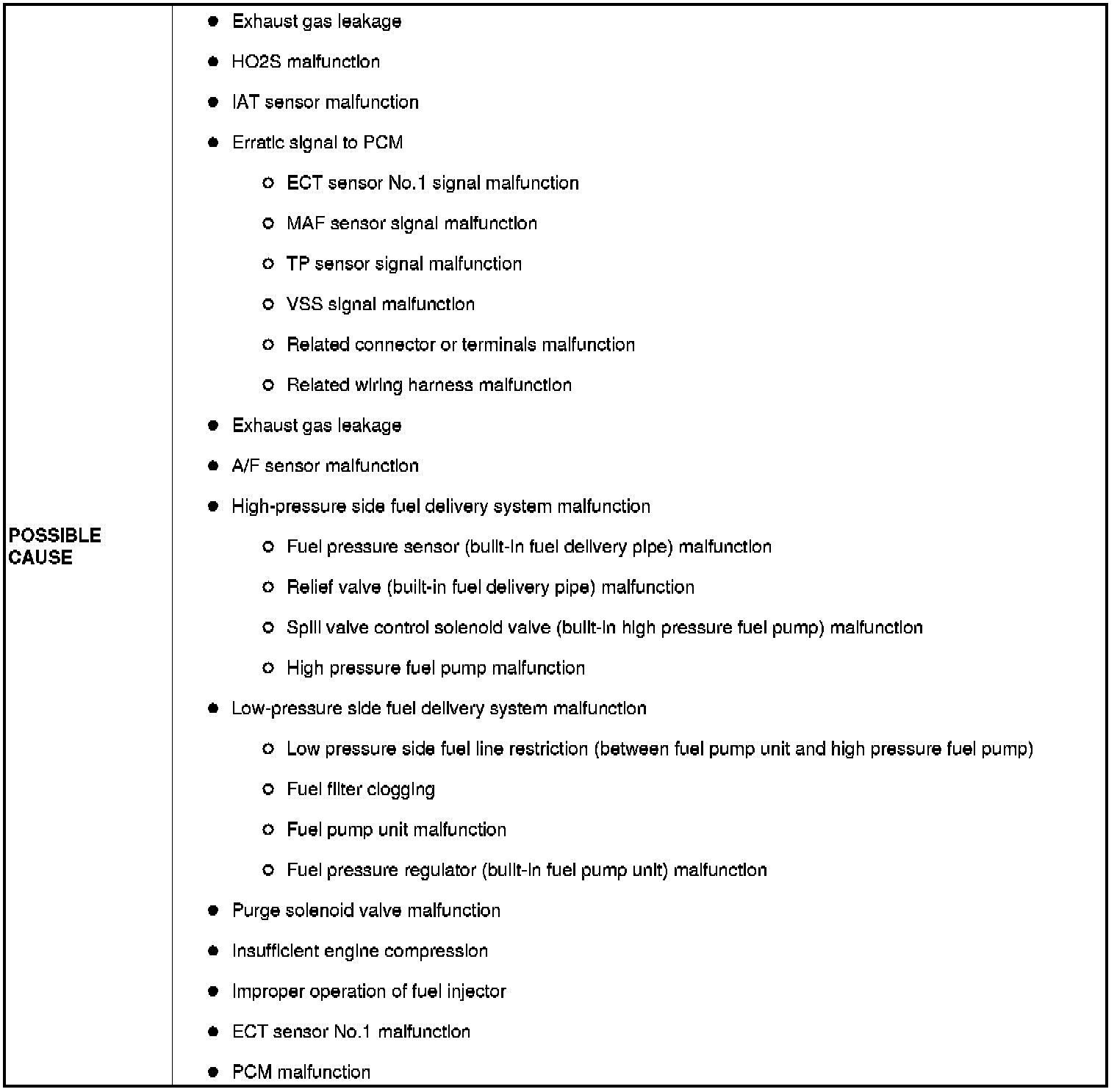

Possible Cause:
Diagnostic procedure

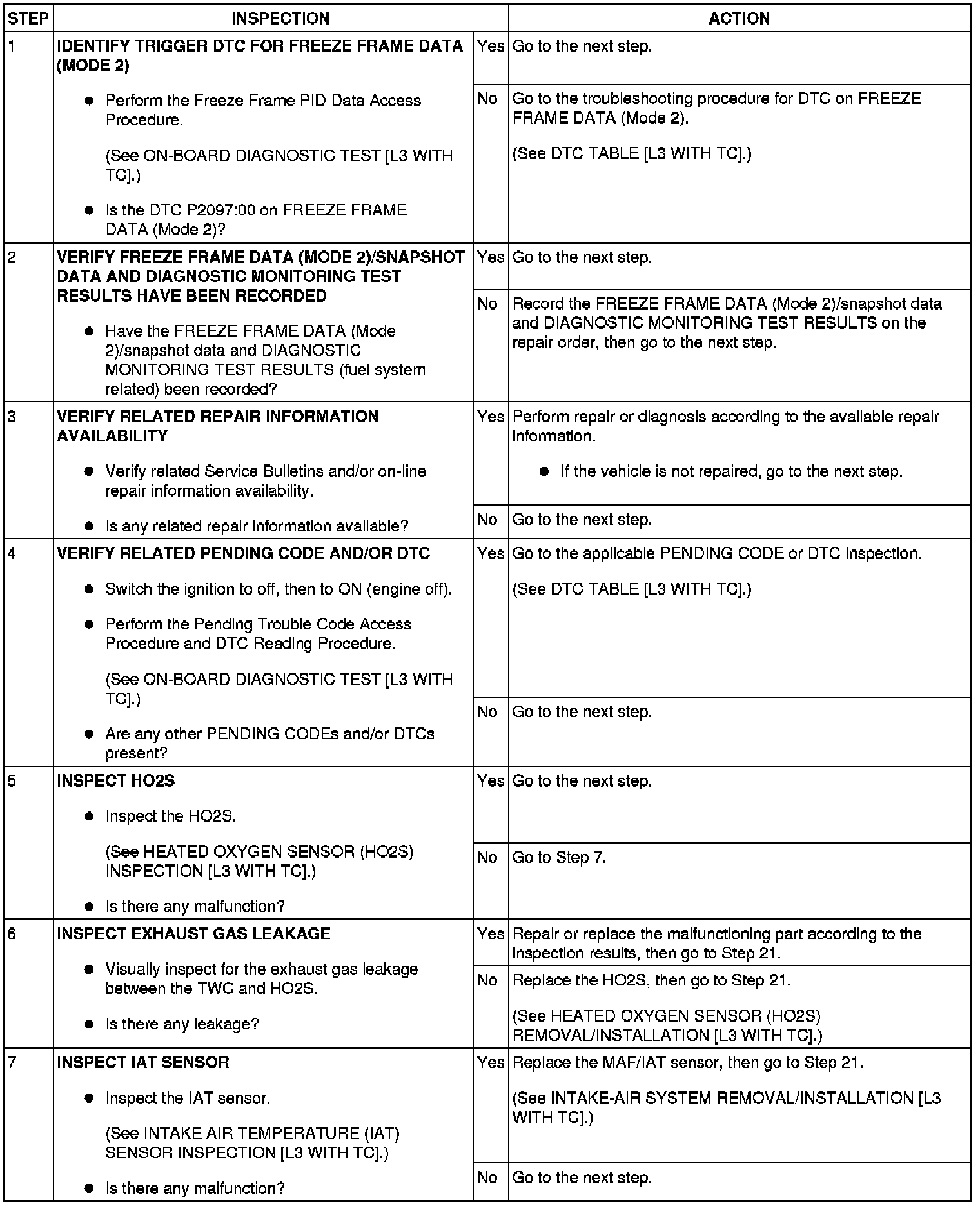

Step 1-Step 7:

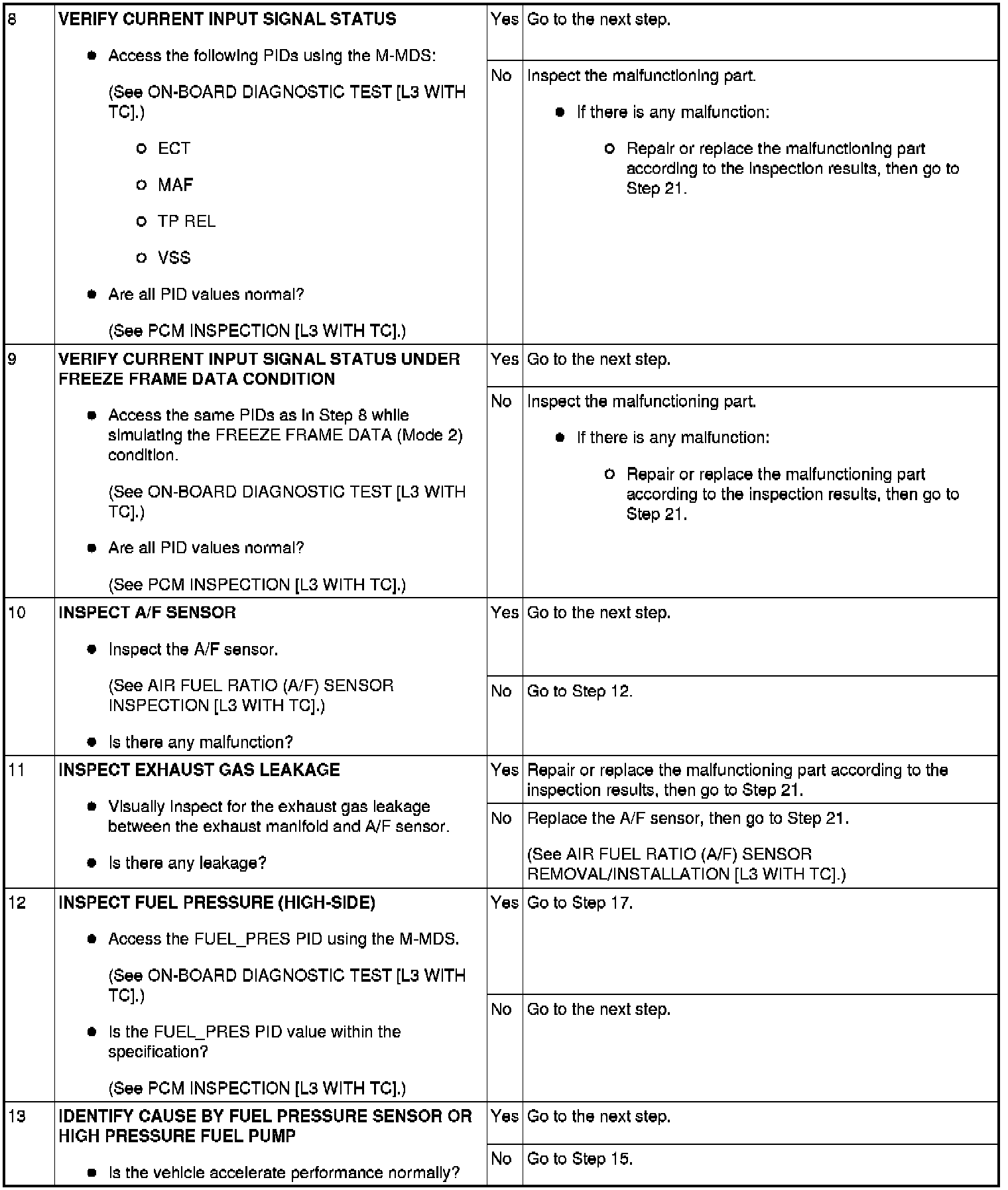

Step 8-Step 13:

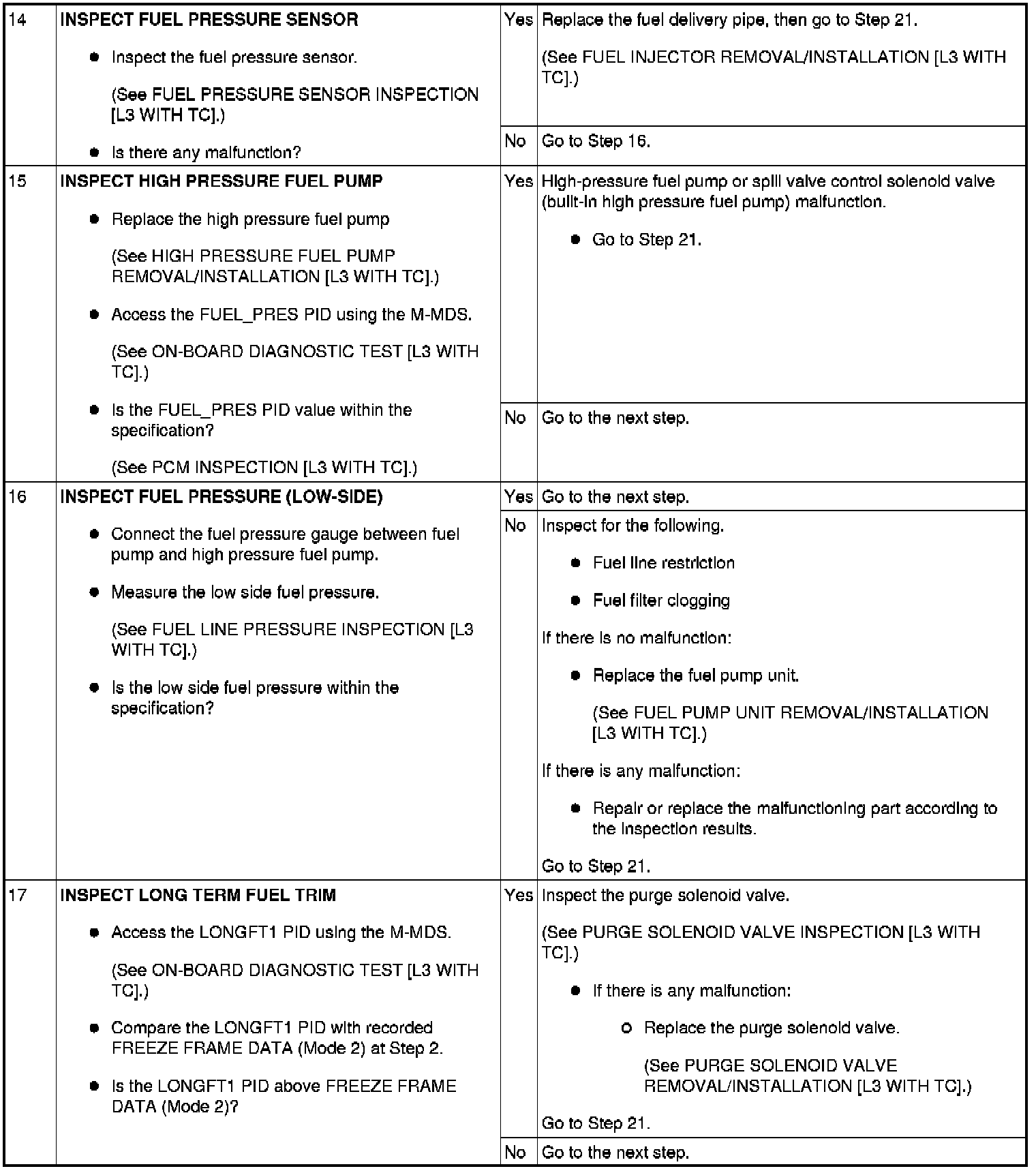

Step 14-Step 17:

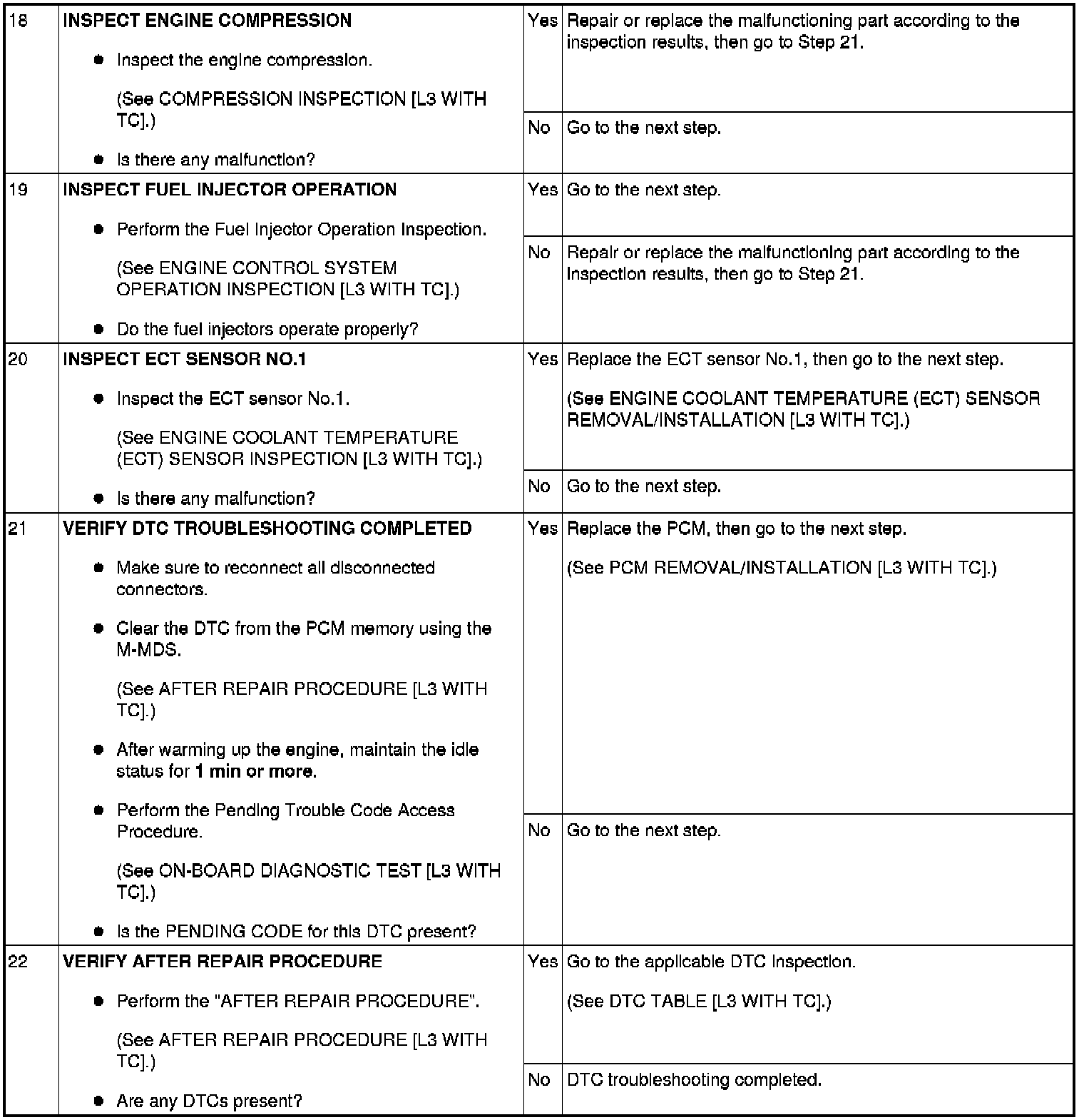

Step 18-Step 22:
