DTC P0850:29 [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

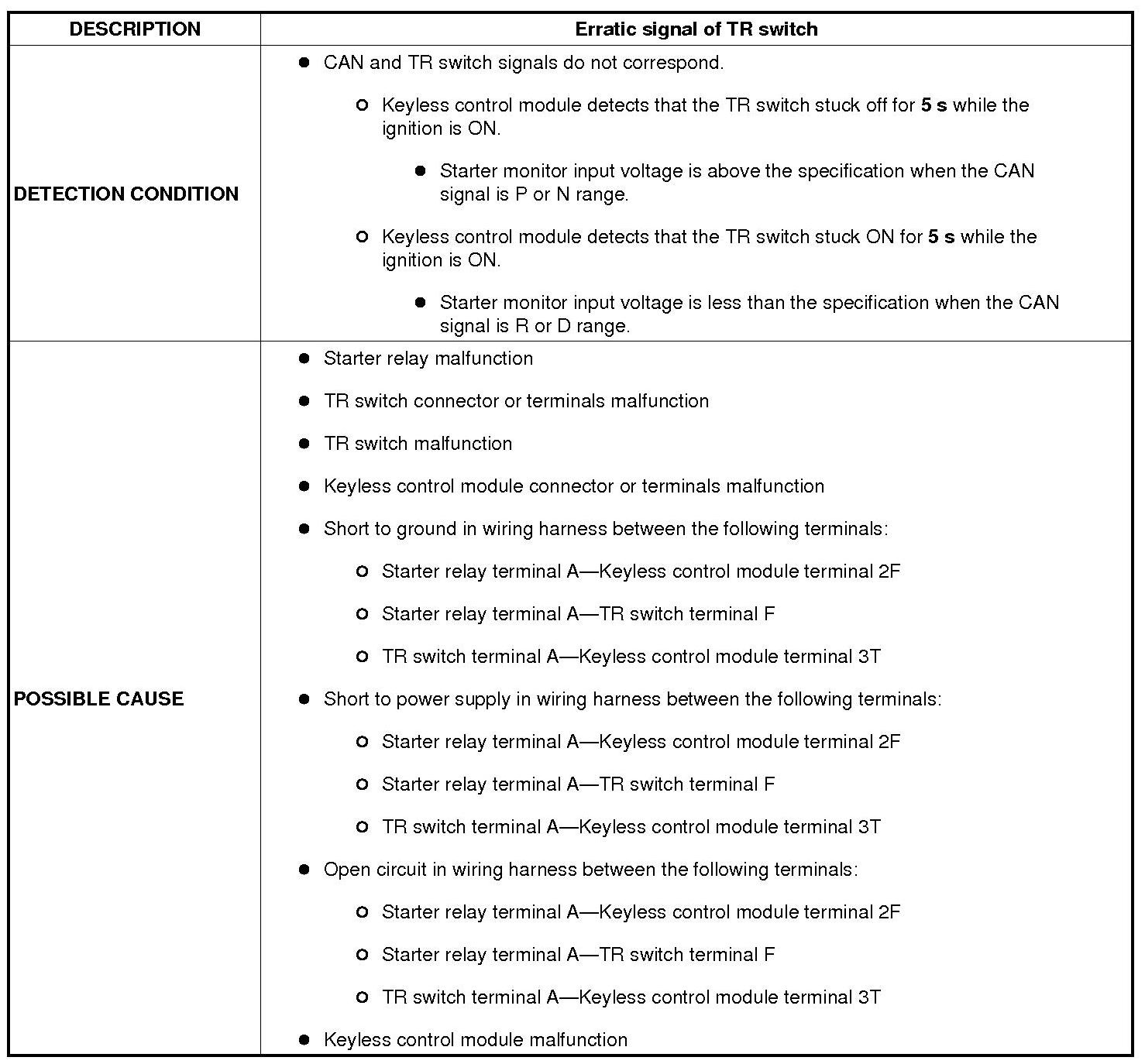

Detection Condition/Possible Cause (Part 1):
Detection Condition/Possible Cause (Part 2):
Diagnostic Procedure

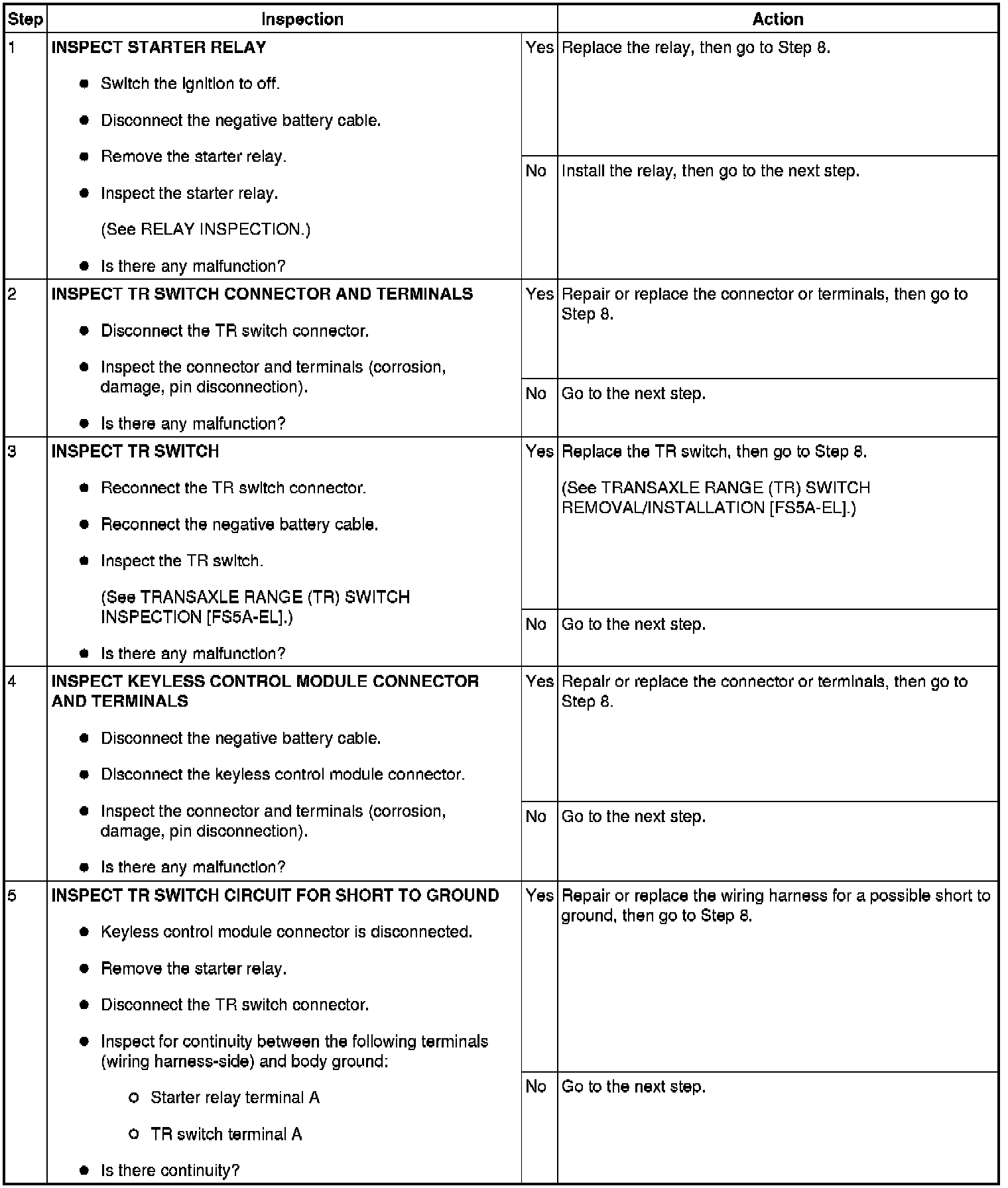

Step 1-Step 5:

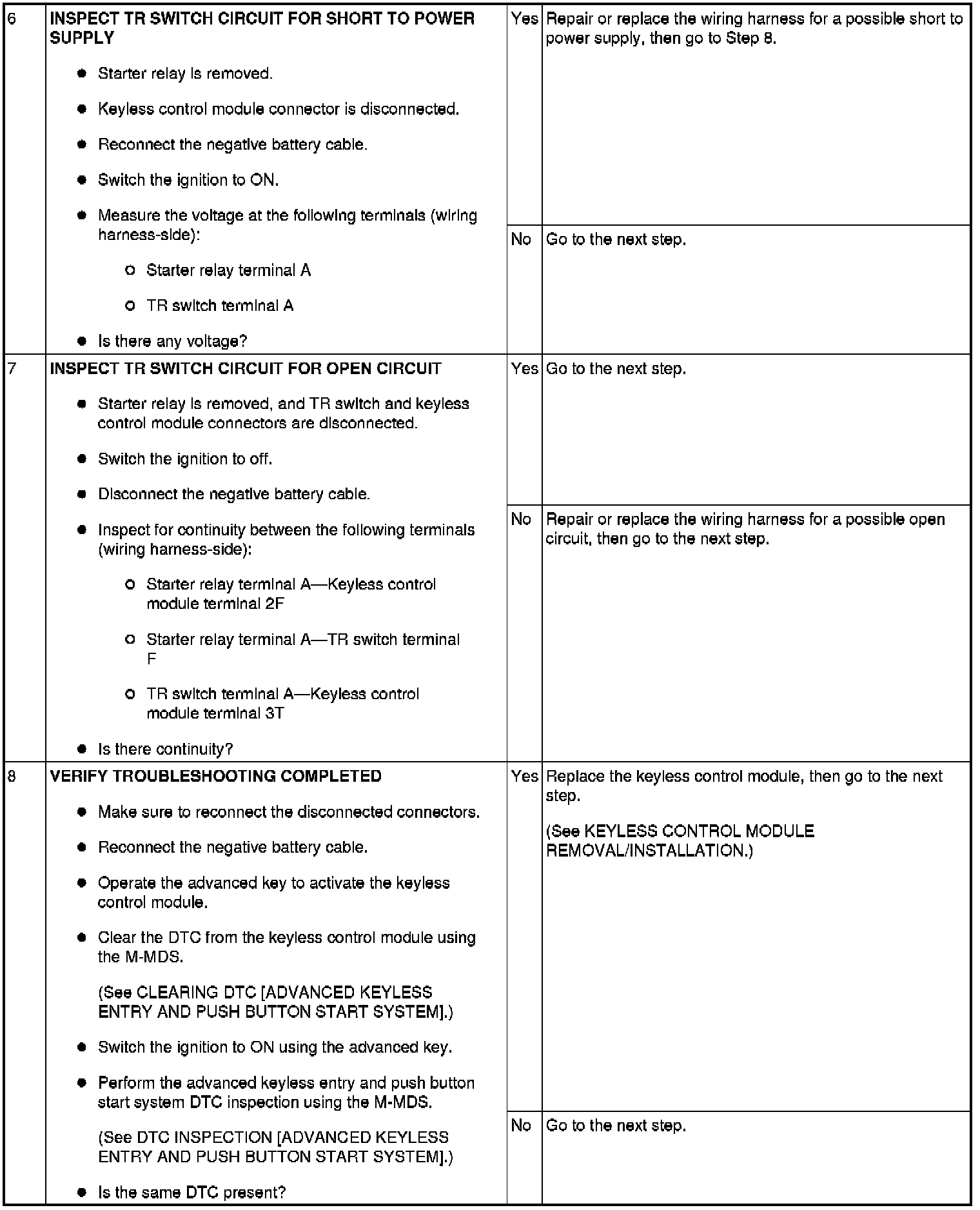

Step 6-Step 8:

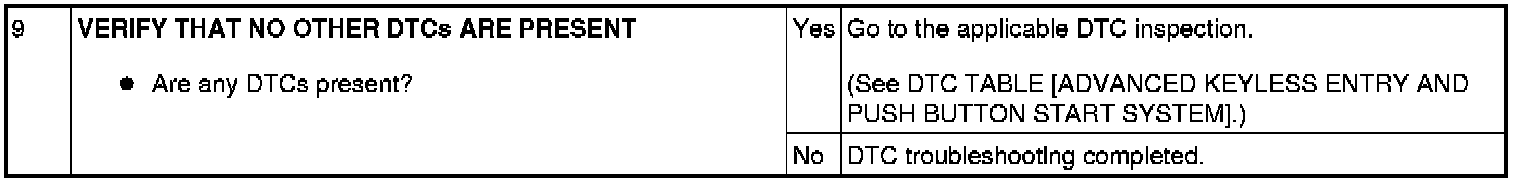

Step 9:
