ON-BOARD DIAGNOSIS [ABS]
DTC Table

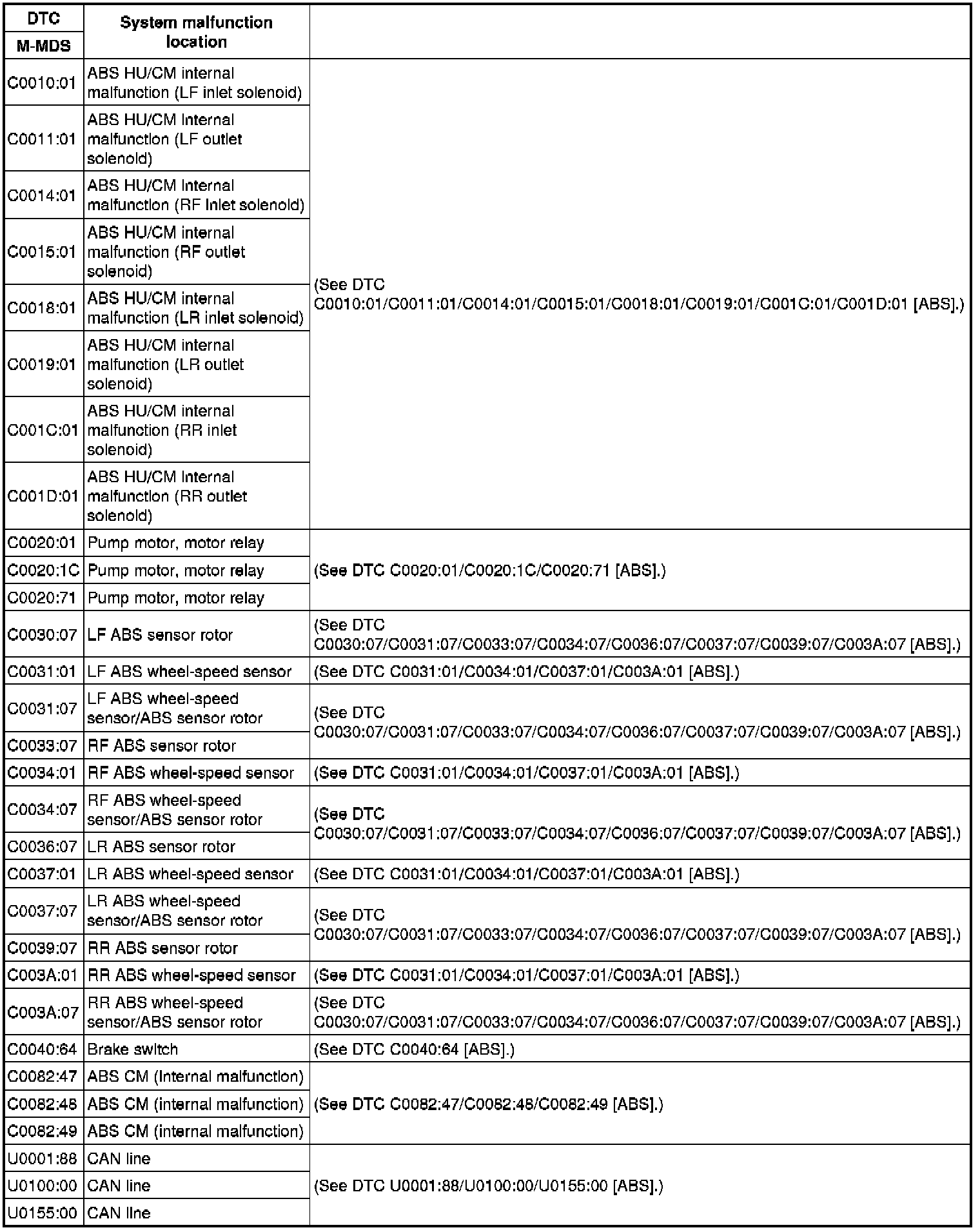

C0010:01-C0082:48 / C001C:01-C003A:07 / U0001:88-U0155:00:

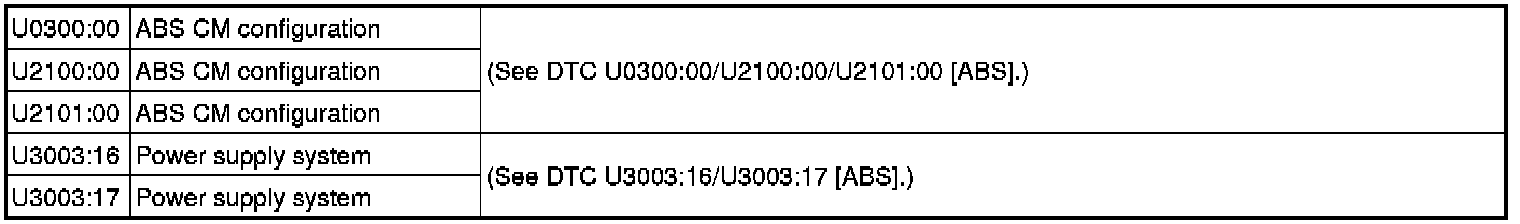

U0300:00-U3003:17:
