DTC Table [Electro Hydraulic Power Assist Steering (EHPAS) on-Board Diagnosis]




ELECTRO HYDRAULIC POWER ASSIST STEERING (EHPAS) ON-BOARD DIAGNOSIS

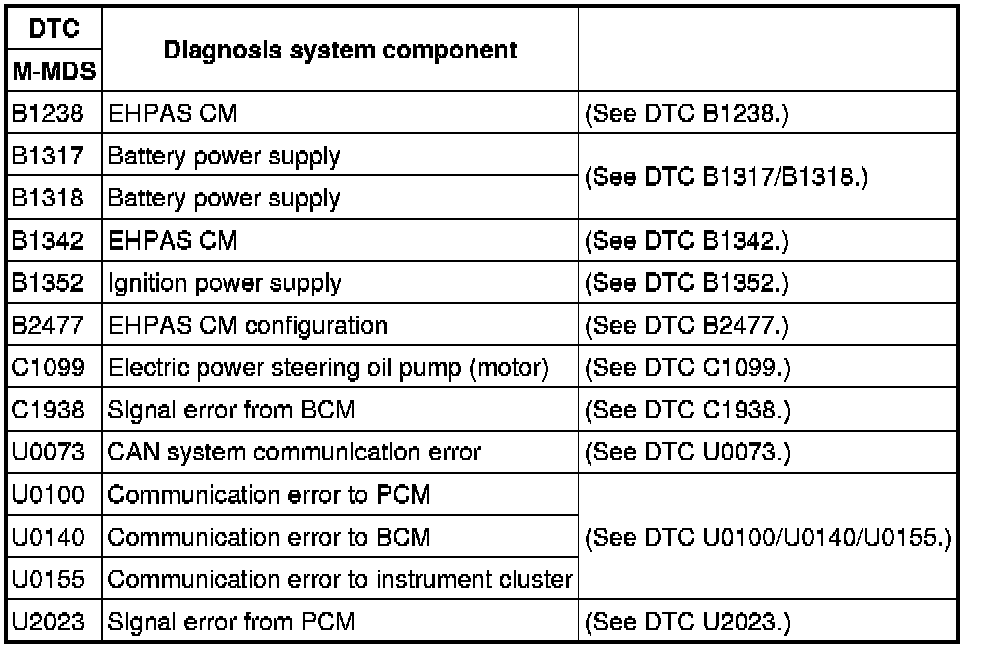

DTC Table

B1238-B2477 / C1099-C1938 / U0073-U2023:
