DTC C2011:49/C2012:49/C2013:49/C2014:49

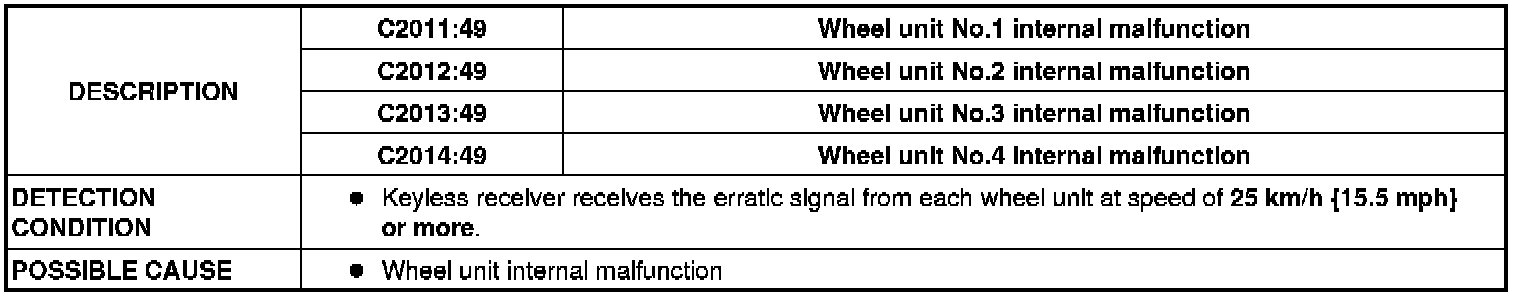

Detection Condition/Possible Cause:

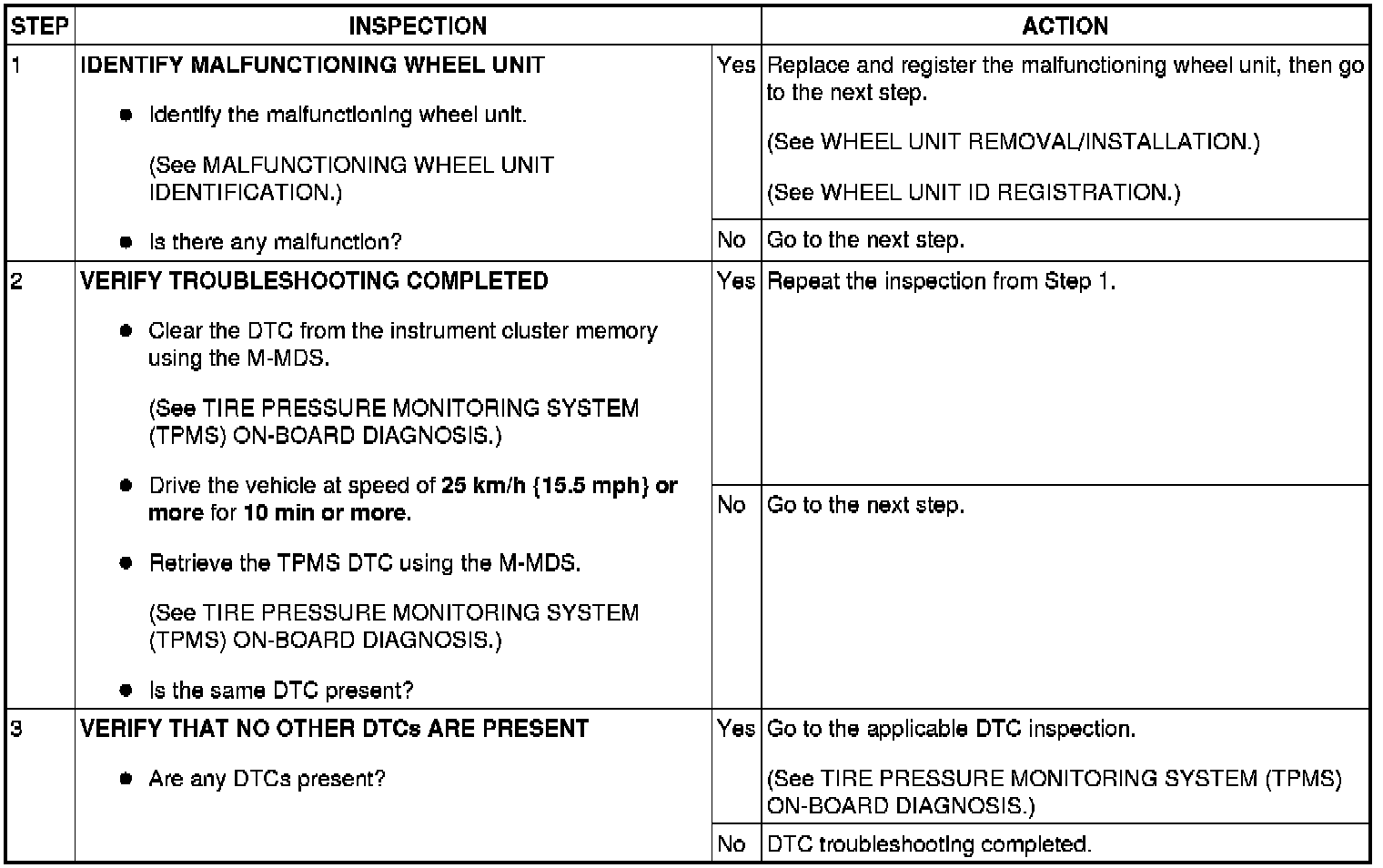

Diagnostic procedure
Step 1-Step 3:
