DTC C1976 [MULTI INFORMATION DISPLAY]

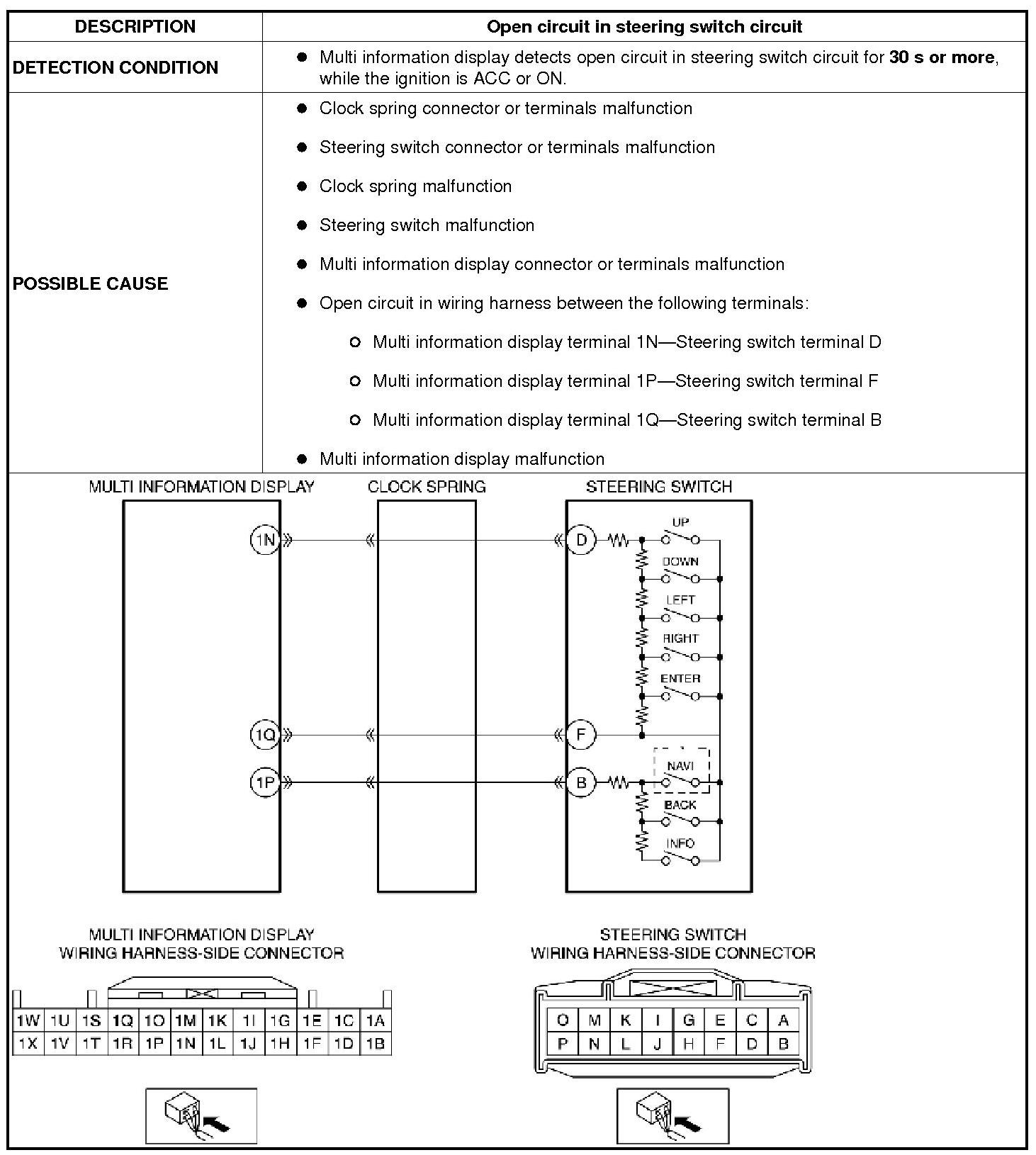

Detection Condition/Possible Cause:
*
Vehicles with car-navigation system
Diagnostic Procedure

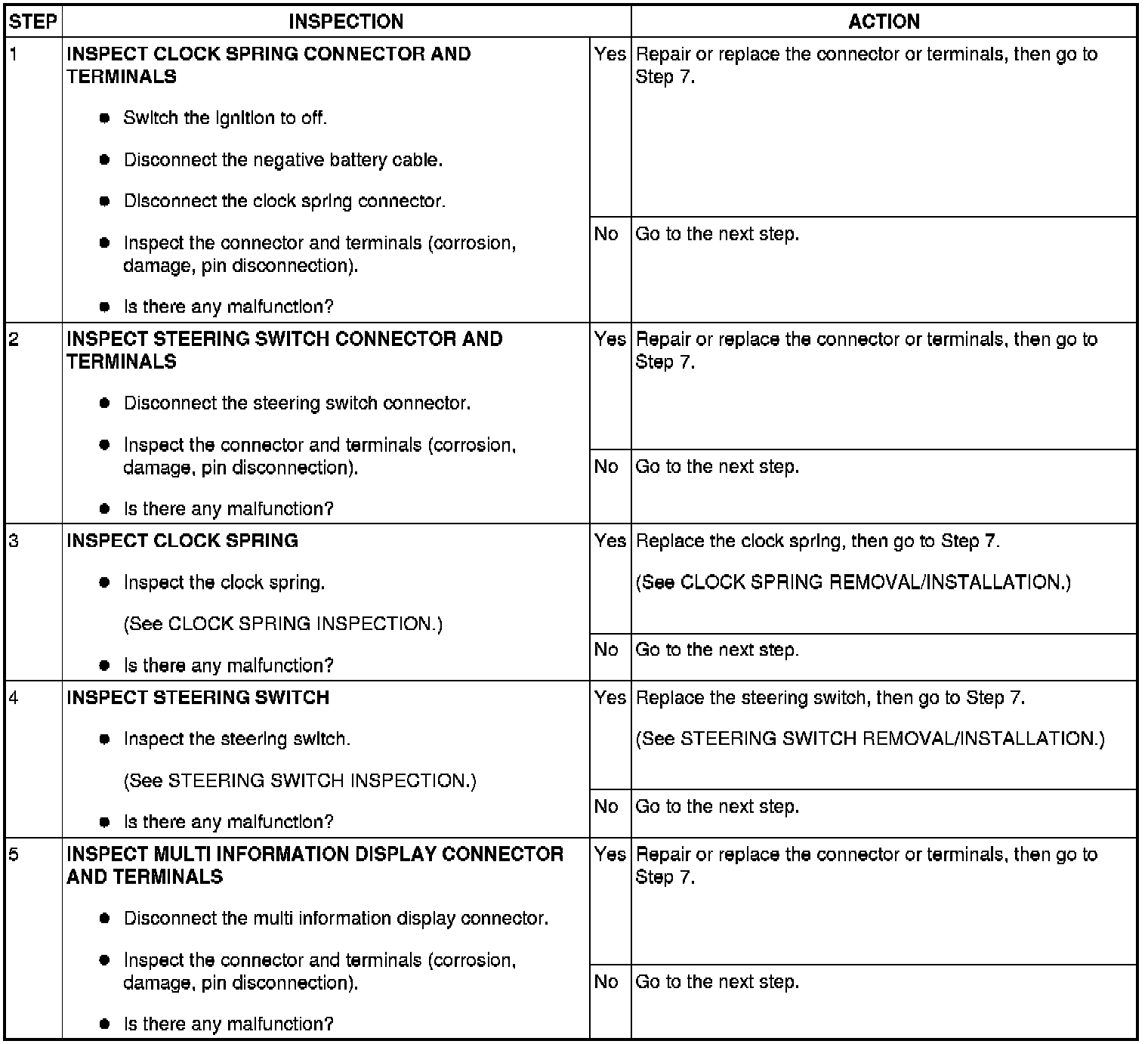

Step 1-Step 5:

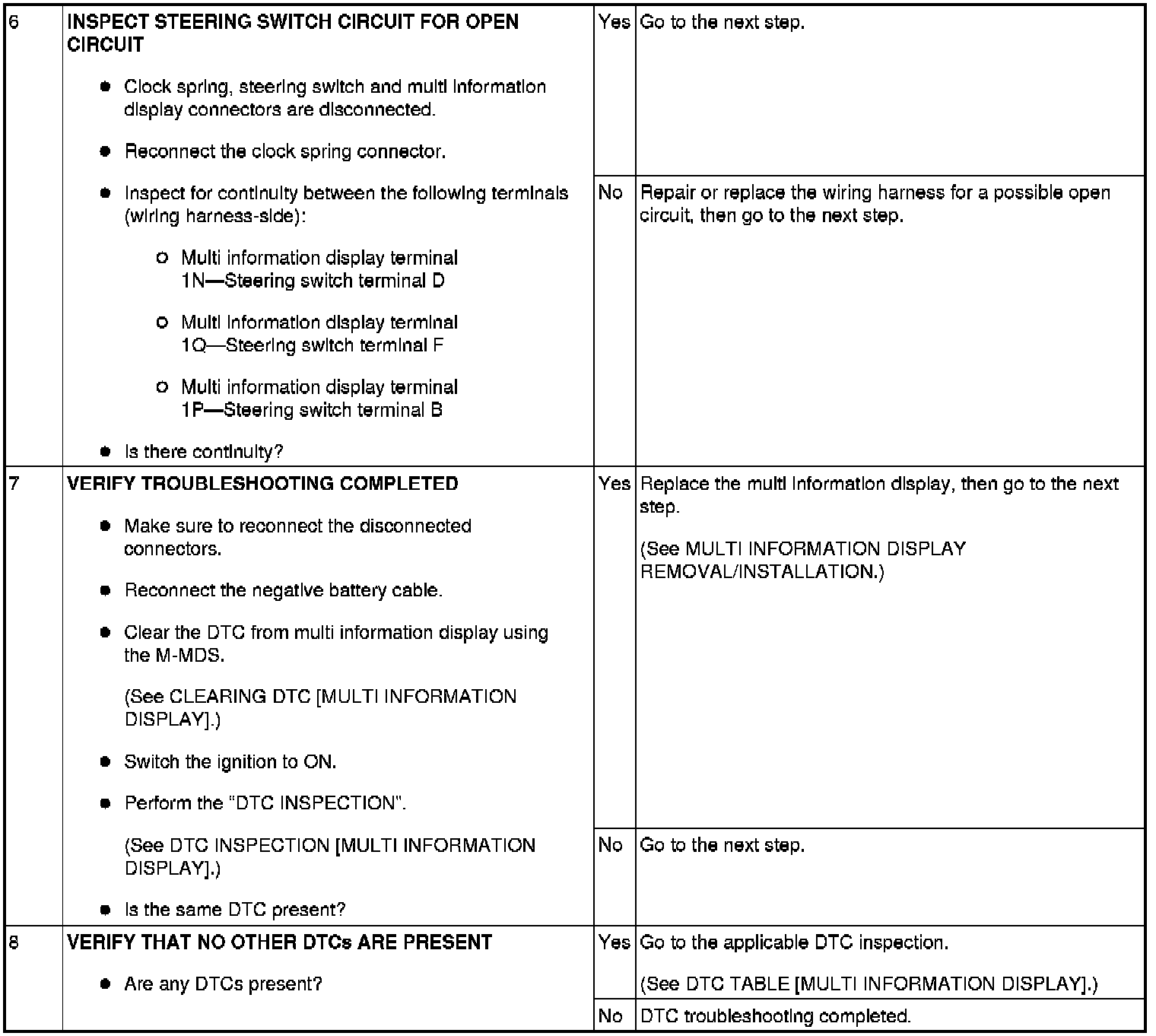

Step 6-Step 8:
