Home >> Mazda >> 2010 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> B Code Charts >> B1B71 >> B1B71:11

B1B71:11




DTC B1B71:11, B1B71:13

Possible Cause:





Diagnostic procedure

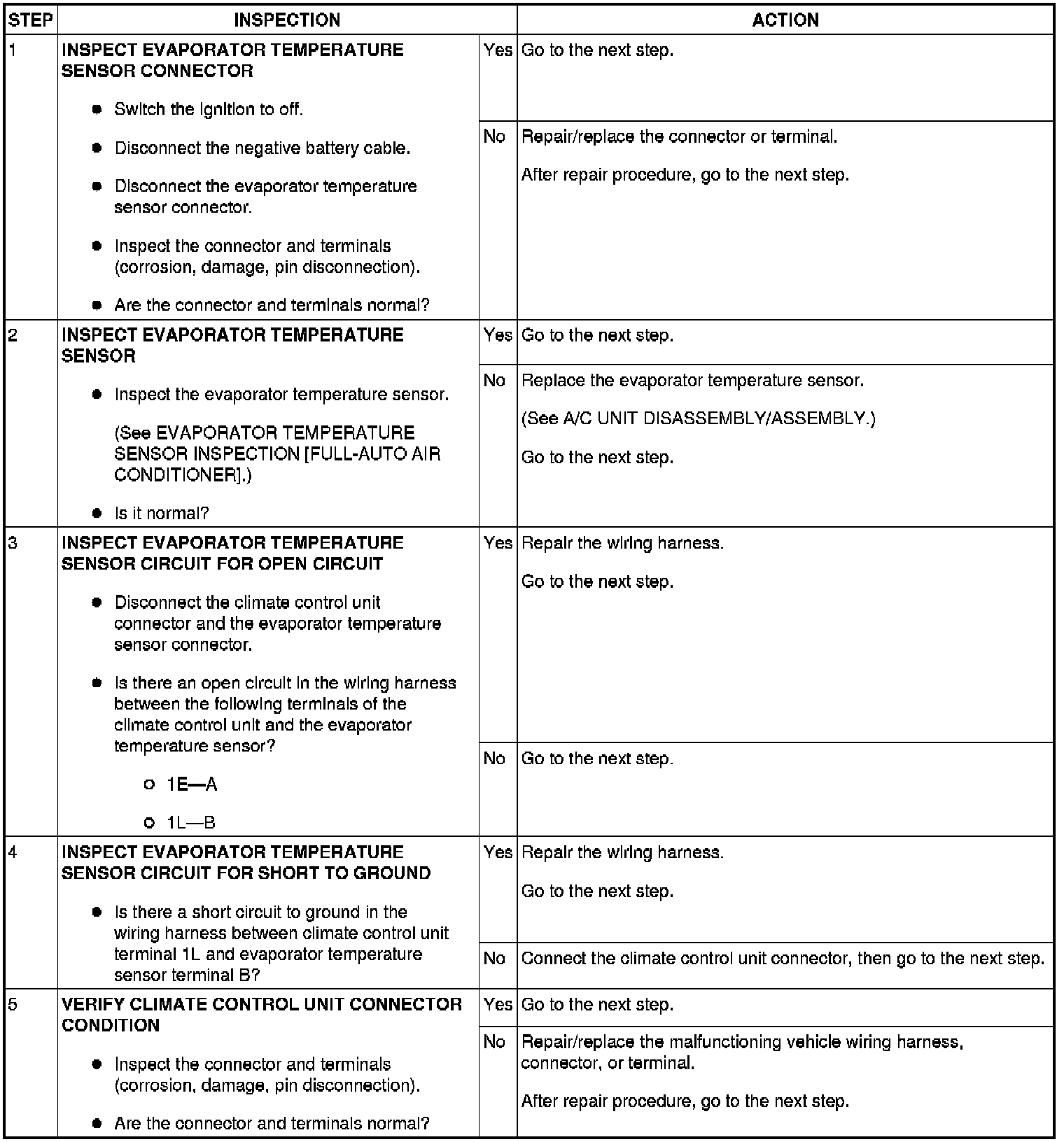

Step 1-Step 5:

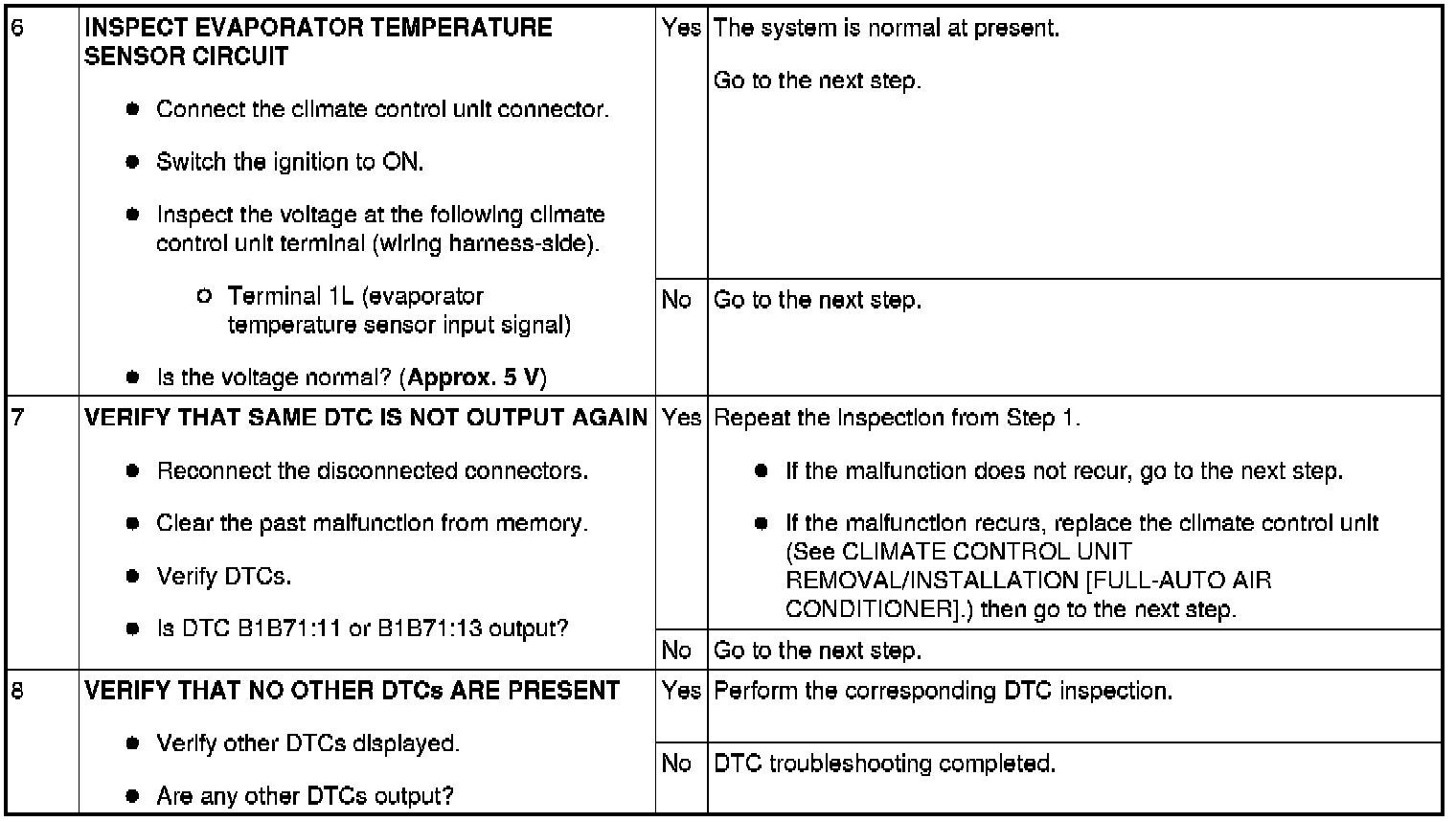

Step 6-Step 8:
