Home >> Mazda >> 2010 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> B Code Charts >> B1A89

B1A89




DTC: B1A89:13 [AUDIO]

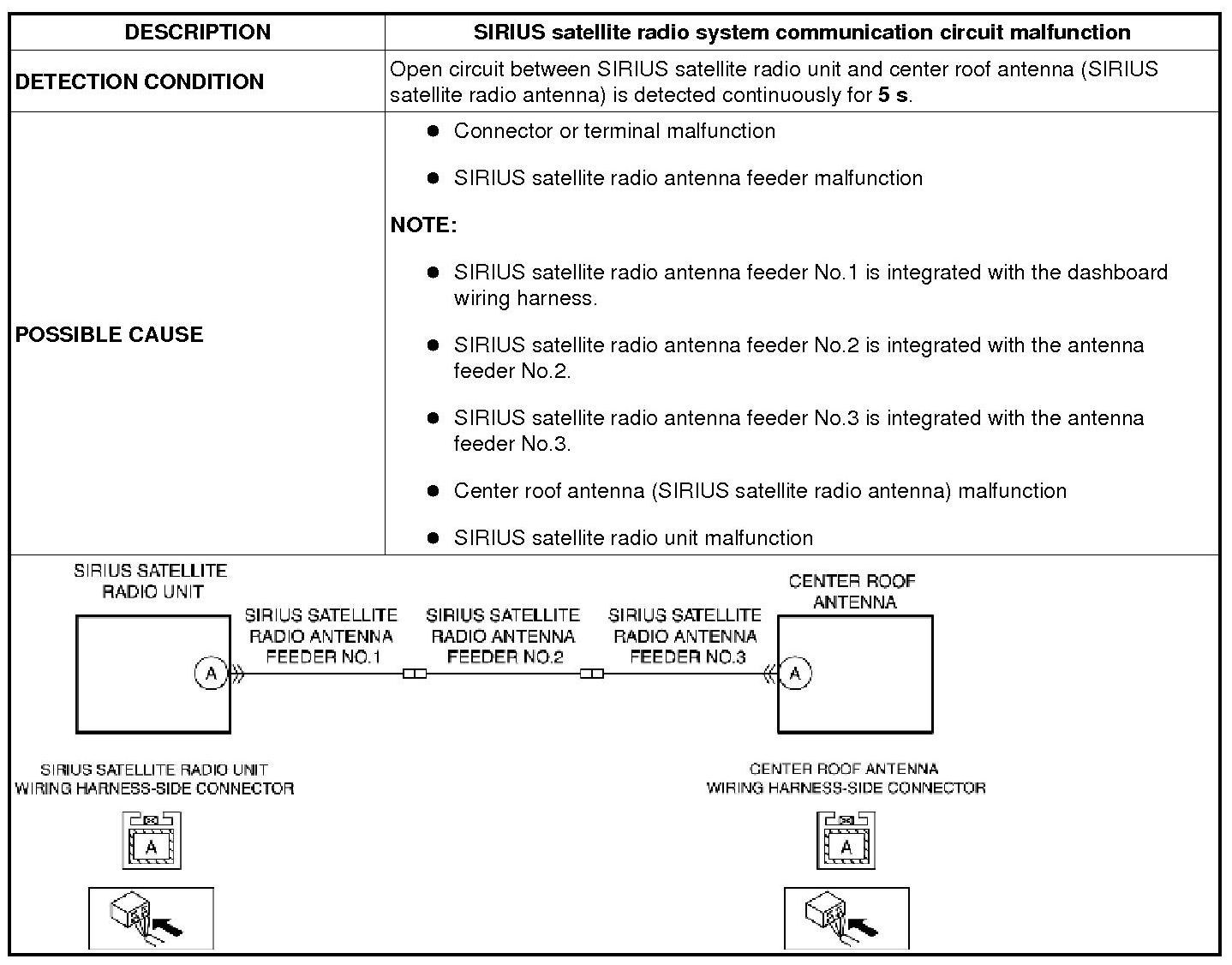

Detection Condition/Possible Cause:





Diagnostic Procedure

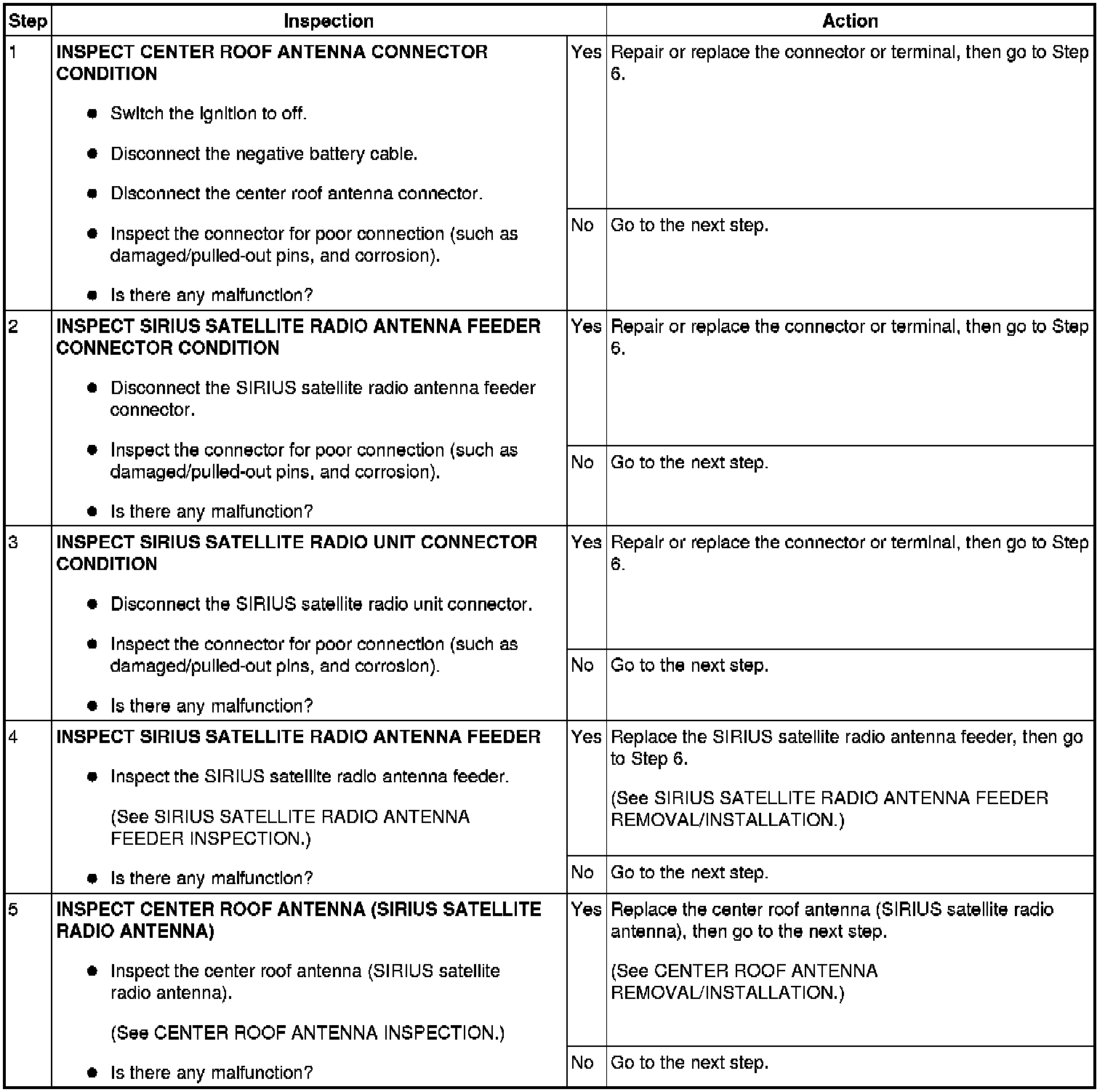

Step 1-Step 5:

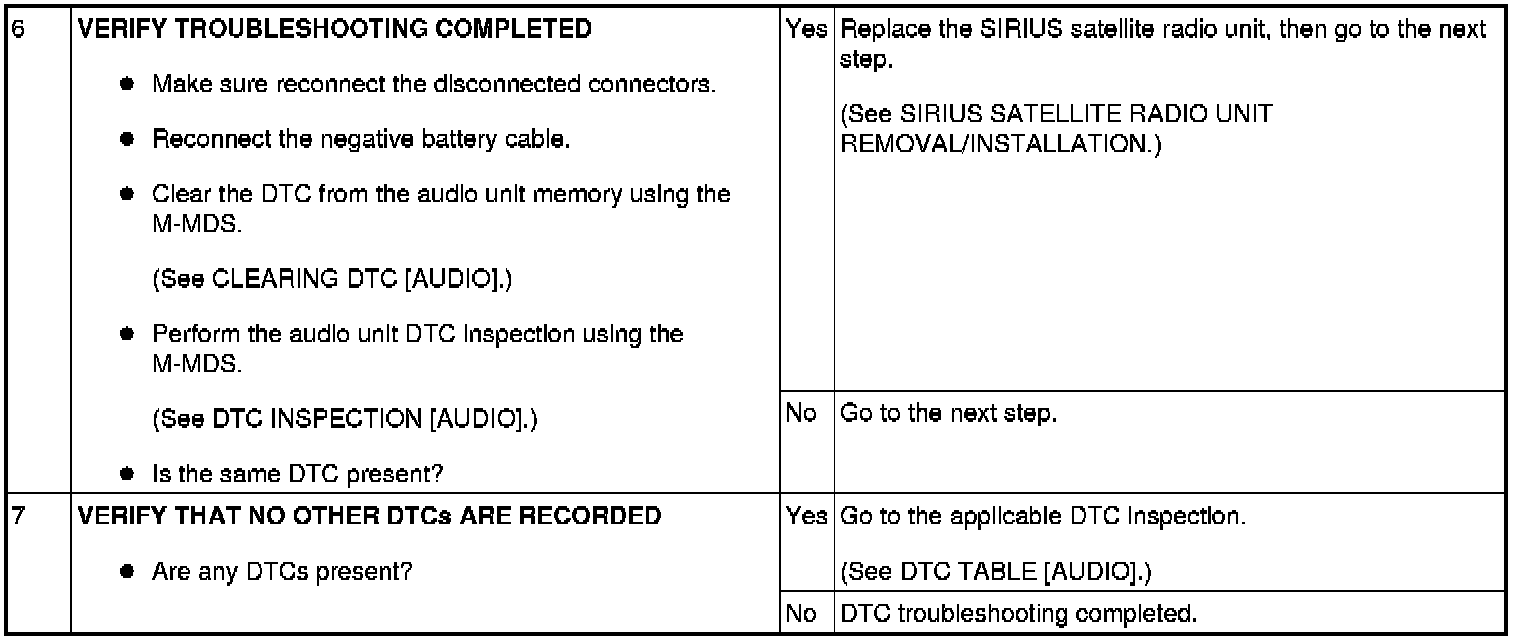

Step 6-Step 7:
