FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mazda
>>
2010
>>
Mazdaspeed3 L4-2.3L Turbo
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B1172
>>
B1172:13
B1172:13
DTC B1172:13 [BCM]
Detection Condition/Possible Cause:

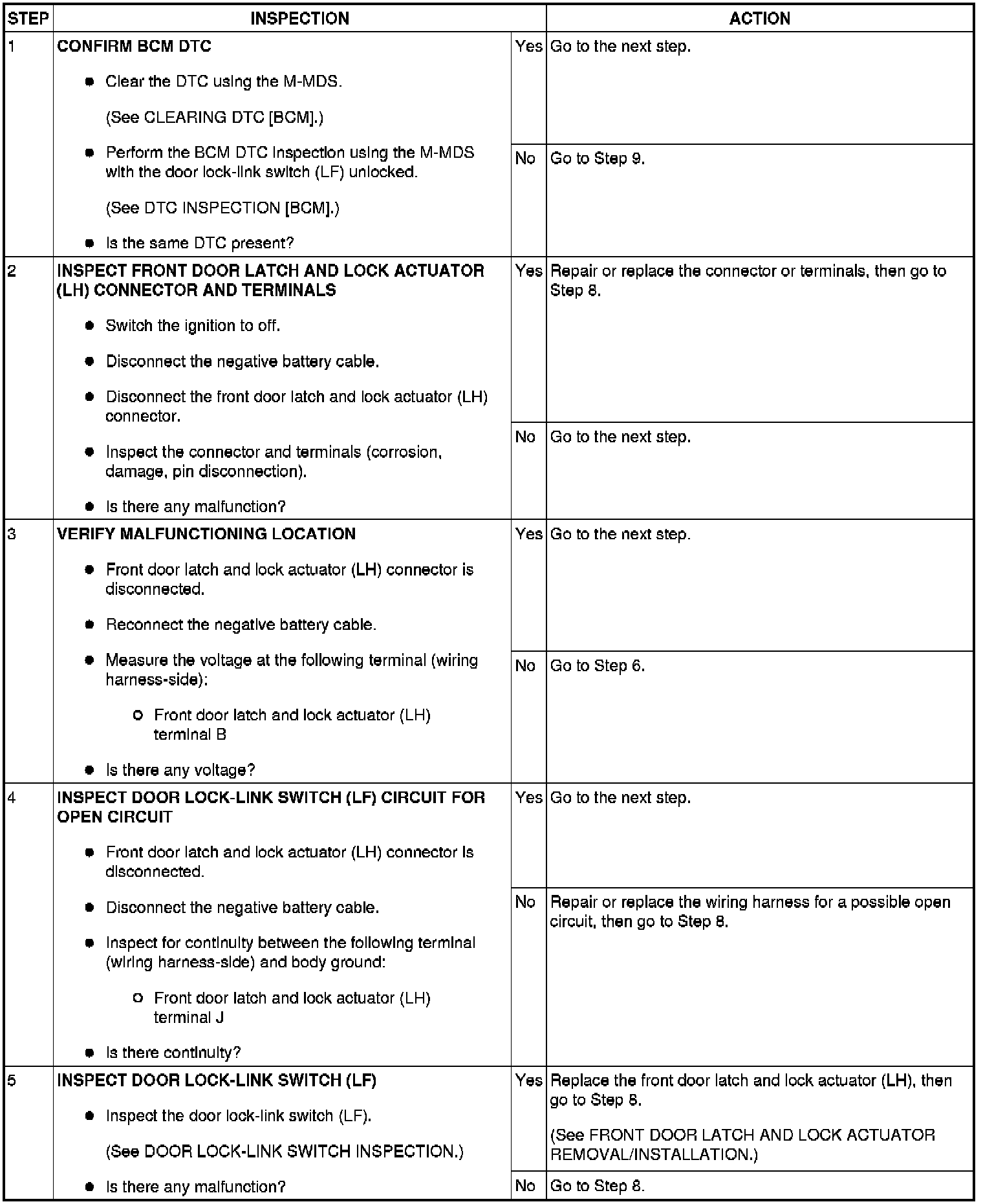

Diagnostic Procedure
Step 1-Step 5:

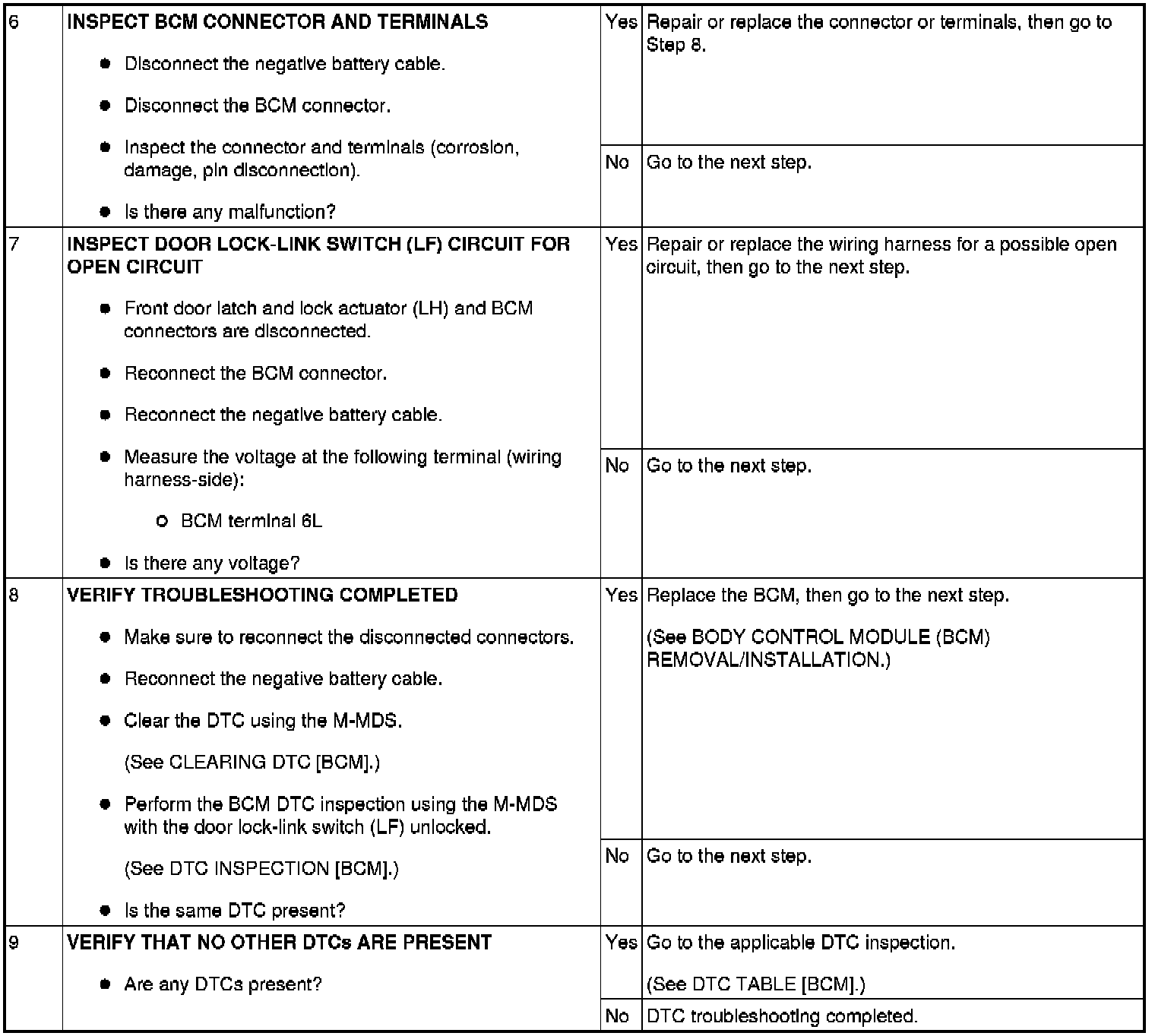

Step 6-Step 9:
