DTC B10A3:86 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)]

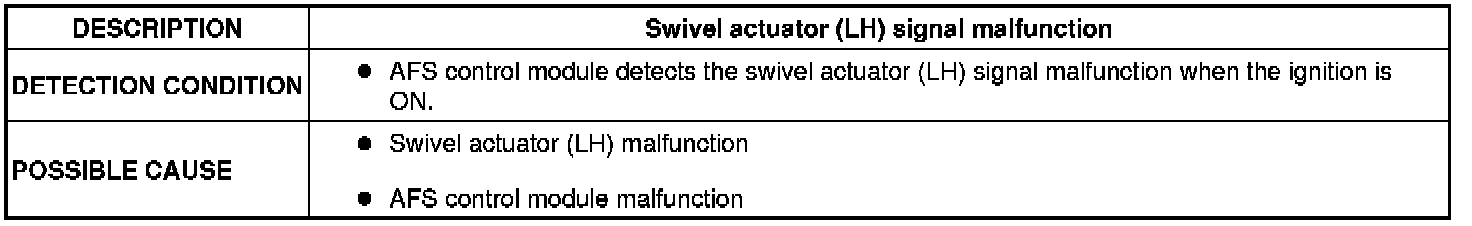

Detection Condition/Possible Cause:

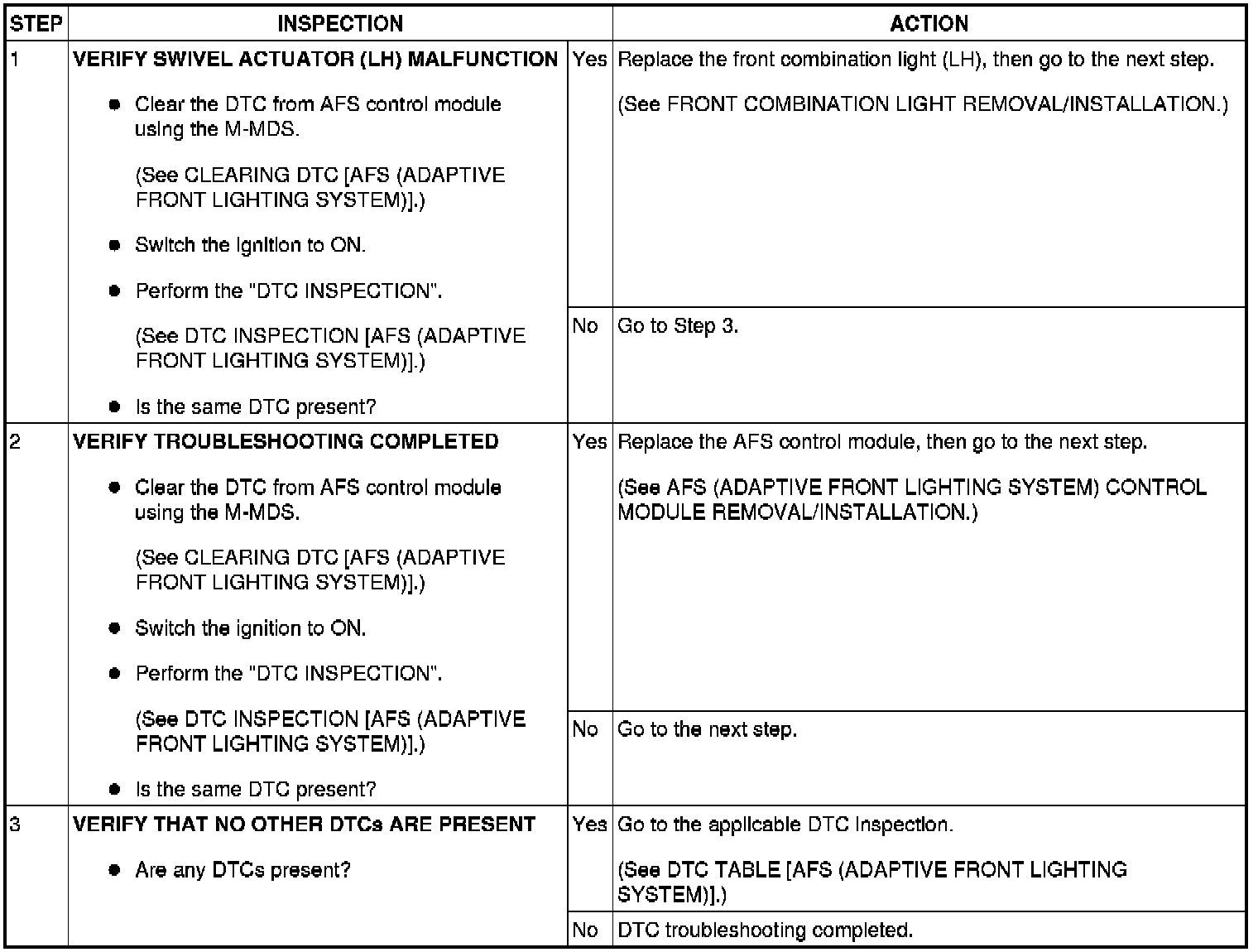

Diagnostic Procedure
Step 1-Step 3:
