FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mazda
>>
2010
>>
Mazdaspeed3 L4-2.3L Turbo
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B1043
B1043
DTC B1043:01 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)]

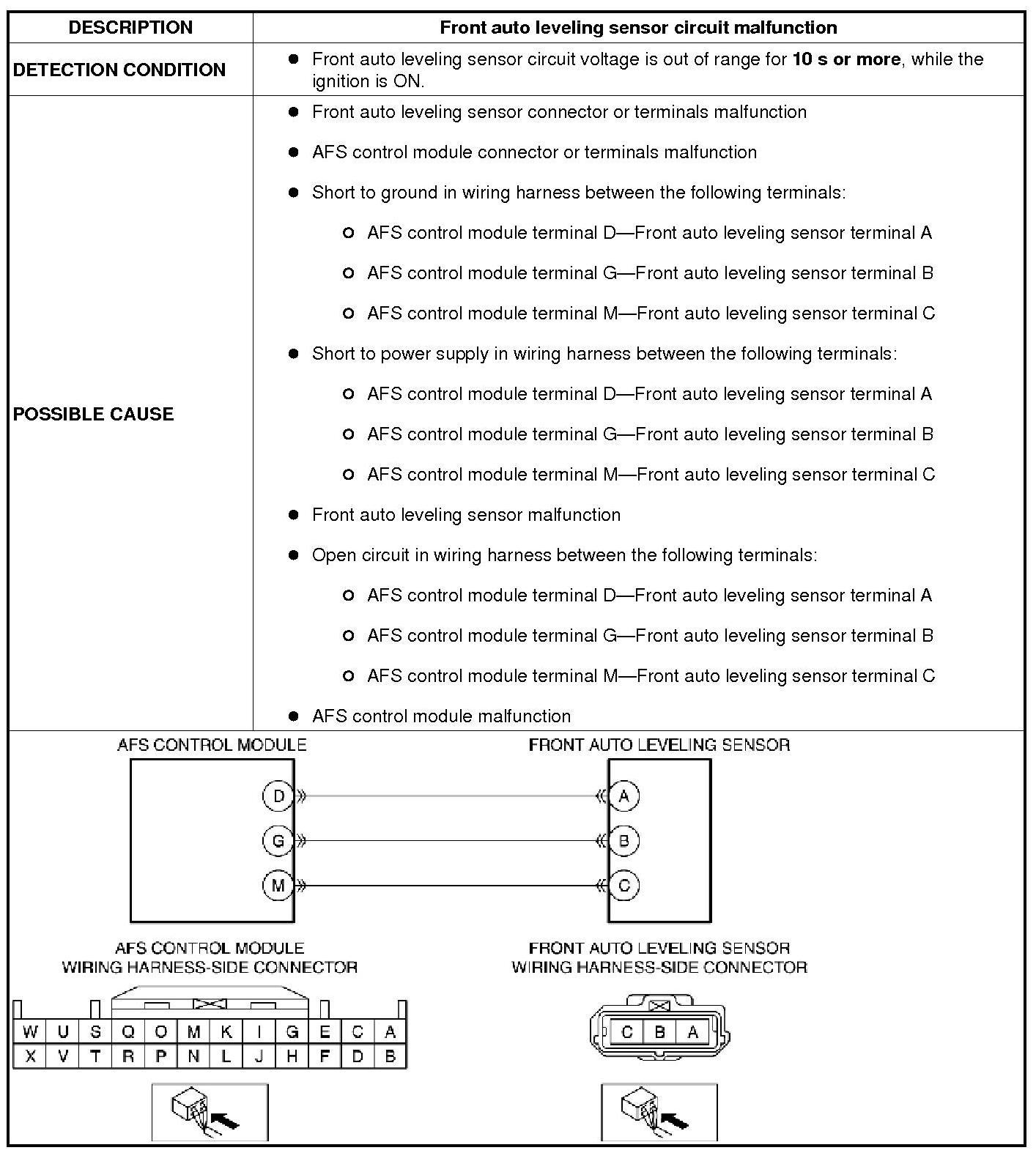

Detection Condition/Possible Cause:
Diagnostic Procedure

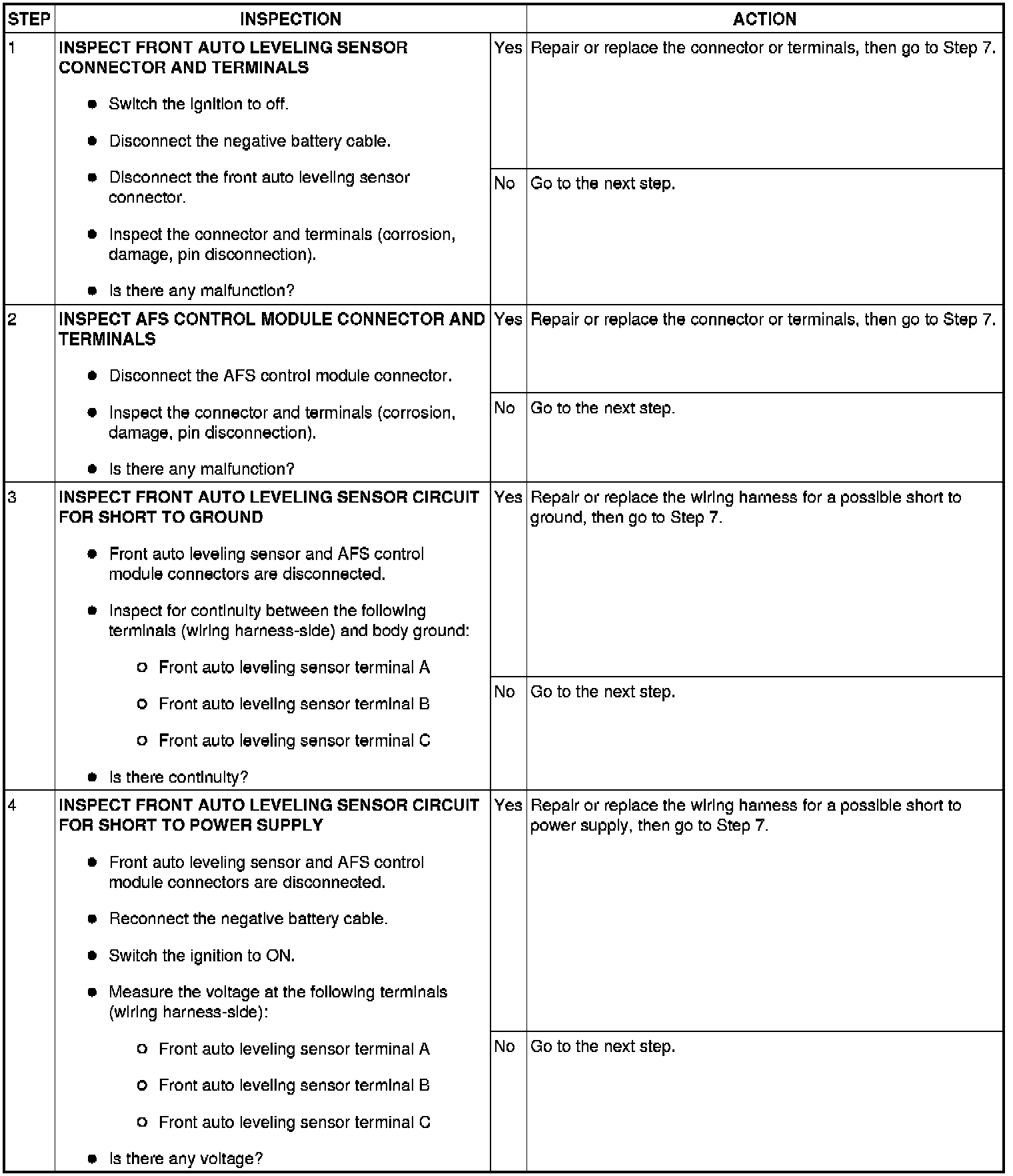

Step 1-Step 4:

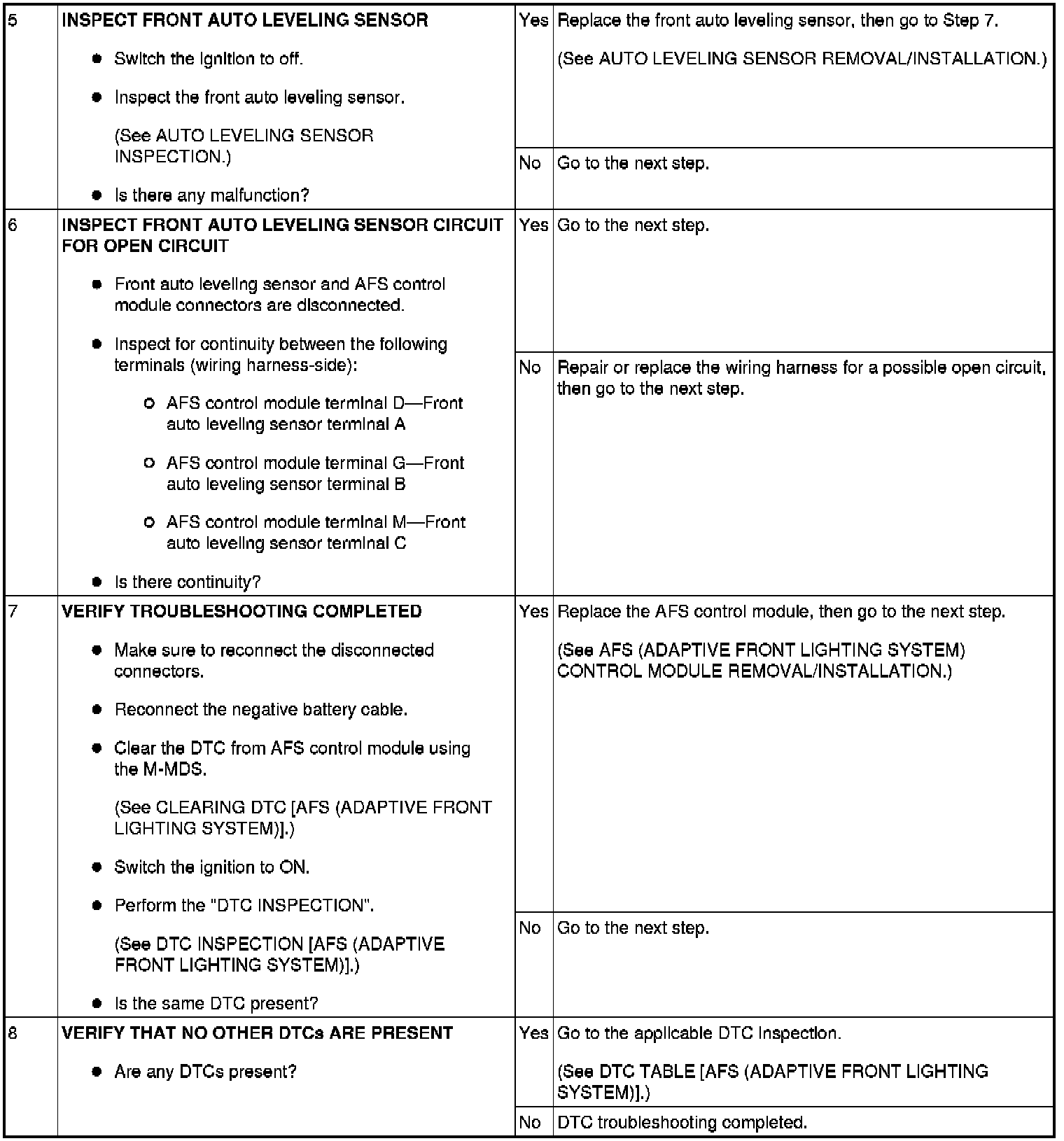

Step 5-Step 8:
